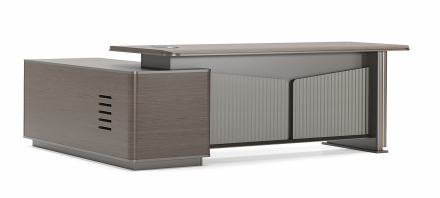

商品供应商左侧带储物柜、正面配竖纹挡板的L型主管办公桌，刨花板
可联系供应商获取生产周期与报价。
左侧带储物柜、正面配竖纹挡板的L型主管办公桌 主要规格 2026-07-31 13:10
人气: 4参数纠错历史记录（所有访客可见）
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 2400 x 2000 x 750 mm | |
|---|---|---|
| Main worktop thickness | 50 mm | |
| Return worktop depth | 600 mm | |
| Seated knee clearance height | 660 mm | |
| Seated knee clearance width | 1600 mm | |
| Storage pedestal width | 800 mm | |
| Fluted modesty panel height | 500 mm | |
| Right vertical support leg width | 80 mm | |
| Desk base plinth height | 40 mm | |
| Embedded cable grommet diameter | 80 mm | |
| Ventilation slot length on pedestal side | 120 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Product net weight range | 185 kg | |
|---|---|---|
| Worktop static uniform load capacity | 150 kg | |
| Pedestal drawer static load per drawer | 45 kg | |
| Recommended maximum user weight for seating use | 150 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Design service life under daily office use | 10 years | |
| Leveling adjustment range for feet | 10 mm | |
| Recommended maximum seated user weight | 150 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating (if fitted) | 80000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main worktop surface | Walnut-toned wood veneer over 25mm thick MDF substrate with 25mm matching edge build-up, matte PU lacquer finish | |
|---|---|---|
| Storage pedestal outer panels | Matching wood veneer over 18mm MDF substrate, matte lacquer finish with polished beveled edge detailing | |
| Knee bay modesty panels | Medium grey matte lacquered MDF with vertical fluted grooved texture | |
| Structural support frame | 2mm thick powder-coated cold-rolled steel with dark grey matte finish, forming internal worktop support, right leg structure and base plinth | |
| Accent trim detail | 0.8mm thick brushed gold-toned stainless steel inlay, set vertically along right support leg edge | |
| Pedestal internal drawer components | 15mm thick particleboard drawer boxes with full-extension cold-rolled steel drawer slides | |
| Leveling feet | Nylon base with steel threaded stem, installed at all base contact points | |
| Cable grommet | Brushed ABS plastic with removable brush insert, fitted flush to worktop surface | |
| Under-desk cable tray | 0.9mm thick powder-coated cold-rolled steel, mounted under rear worktop to contain routed cables | |
| Drawer soft-close dampers | Thermoplastic damper units integrated into slide mechanisms, providing controlled silent closure | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Storage configuration | Left fixed pedestal provides enclosed storage with 2 box drawers for supplies and 1 lateral file drawer for A4/letter size hanging files, plus dedicated vented CPU compartment with horizontal side ventilation slots | |
|---|---|---|
| Cable management system | Rear worktop embedded grommet routes power and data cables to under-desk space, with hidden under-top cable tray to contain wiring and maintain clean appearance | |
| Privacy screening | Full-height fluted modesty panel spans entire open knee bay, blocking view of under-desk area and user legs from front office sightlines | |
| Stability and leveling | Threaded adjustable glides at all base contact points allow up to 10mm height adjustment to level the desk on uneven carpet or hard flooring without wobble | |
| Work surface layout | L-shaped configuration provides dual work zones: main forward work area for monitor and writing tasks, and side return area for peripherals, document review or guest interaction | |
| Drawer operation | Full-extension soft-close drawer slides allow drawers to open fully for complete access to stored contents, with dampened closure to prevent slamming and reduce office noise | |
| CPU compartment ventilation | Five 120mm long horizontal vent slots on the pedestal side panel provide passive cross-ventilation for stored tower CPUs, preventing overheating during 8+ hours daily operation | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping packages | 3 | |
|---|---|---|
| Largest carton dimensions | 2450 x 950 x 120 mm | |
| Total shipping gross weight | 210 kg | |
| Total shipping volume (CBM) | 0.82 | |
| On-site assembly time | 120 minutes | |
| Assembly hardware kit contents | All required bolts, screws, hex key, adjustable glides and cable grommet components included in dedicated hardware pack | |
| 40ft HQ container loading quantity | 52 units | |
| Recommended factory warranty | 5 years | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Executive private office space | Suitable for senior management and executive private offices, provides expansive work surface and integrated storage to support administrative, meeting and focused work tasks | |
|---|---|---|
| Managerial open office workstation | Suitable for senior team member workstations in open plan offices, provides private storage and front modesty panel screening without requiring full height office partitions | |
| Conference room leader station | Suitable for head-of-table placement in small boardrooms or meeting rooms, provides work surface for meeting materials and integrated cable access for presentation equipment | |
| Professional reception manager workspace | Suitable for reception area manager positions, provides storage for administrative supplies and a polished appearance consistent with client-facing office spaces | |
| Recommended pairing | Pairs with high-back executive leather office chairs with 700mm diameter five-star base, as the 660mm knee clearance accommodates full seat height and tilt adjustment without contact | |
| Recommended seating pairing | Pairs with high-back executive leather office chairs with 700mm diameter five-star base and 120kg weight rating, as the 660mm knee clearance accommodates full 580 mm seat height adjustment and 15° back tilt without contact | |
| Home executive office setup | Suitable for dedicated high-end home offices for remote senior professionals, provides commercial-grade durability and integrated cable management to support multi-monitor home workstations with clean visual appearance |
欧洲市场准入与化学品要求
| Office desk safety recommendation | EN 527:2011 Office furniture - Work tables and desks - Part 1: Dimensions | |
|---|---|---|
| Structural durability recommendation | EN 527:2002 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements and test methods | |
| Surface performance recommendation | EN 15185:2011 Furniture - Assessment of surface resistance to abrasion | |
| Hardware performance recommendation | EN 15338:2007 Furniture hardware - Drawer slides and sliding components - Requirements and test methods |
美国及加拿大办公家具标准
| Desk performance recommendation | ANSI/BIFMA X2021Desk Products - Tests for safety, durability and structural adequacy | |
|---|---|---|
| Sustainability recommendation | ANSI/BIFMA e2019Furniture Sustainability Standard |
适用于中国市场项目的标准
| Desk structural safety recommendation | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Surface emission recommendation | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | |
| Hardware durability recommendation | GB/T 10357.1Test of mechanical properties of furniture - Strength and durability of tables | |
| Surface finish recommendation | GB/T 4893.8Test of surface coatings for furniture - Part 8: Determination of abrasion resistance |
本产品须满足以下技术参数要求： 1. Desk structural safety recommendation：GB/T 3324General technical requirements for wooden furniture； 2. Surface emission recommendation：GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture； 3. Hardware durability recommendation：GB/T 10357.1Test of mechanical properties of furniture - Strength and durability of tables； 4. Surface finish recommendation：GB/T 4893.8Test of surface coatings for furniture - Part 8: Determination of abrasion resistance； 最终交付参数、检测报告和验收标准以双方采购合同为准。
