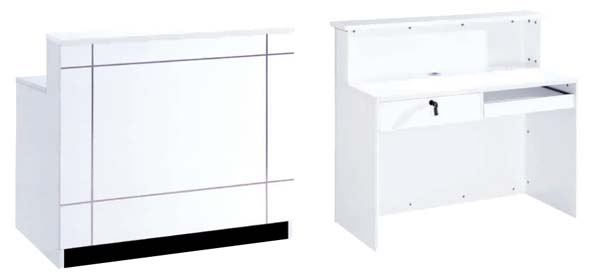

Modern L-Shaped Two-Tier Reception Desk with Raised Privacy Panel and Lockable Storage Specifications

RC-L2T-WB-1600

代码:E4RGV0V1
获取供应商报价
2026-09-02 14:10人气: 17
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RC-L2T-WB-1600

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1600 x 1200 x 1100 mm
Main work surface height750 mm
Raised front privacy panel height350 mm
Side return work surface length1200 mm
Knee clearance width under main work surface800 mm
Knee clearance height under work surface690 mm
Work surface thickness25 mm
Open storage compartment internal dimensions400 x 350 x 150 mm
Front kickplate height100 mm
Decorative grid inlay line width8 mm
Cable grommet diameter60 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static load capacity100 kg
Drawer slide cycle rating50000 cycles
Hinge cycle rating for storage doors80000 cycles
Product net weight55 kg
Laminate surface abrasion resistance2000 cycles
Recommended maximum seated user weight120 kg
Number of supported users1
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Core panel constructionE1-grade high-density particleboard
Work surface finishHigh-gloss scratch-resistant white laminate
Front privacy fasciaGloss white laminated MDF panel with thin black grid inlay
Base kickplate trimMatte black rigid PVC or powder-coated metal strip
Drawer slidesCold-rolled steel ball-bearing full-extension slides
Lock core and handleZinc alloy keyed cam lock with matte black finish
Fastening hardwareZinc-plated steel cam lock screws and confirmat screws
Edge banding2 mm thick matching white PVC edge banding
Cable management grommetABS plastic black cable pass-through grommet
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Raised front privacy panelBlocks visitor line of sight to work surface items at 1100 mm total front height
Lockable drawer storageKey-locked drawer secures valuables and paperwork on attendant side
Open adjacent storage bayProvides open access for frequently used office supplies next to locked drawer
Integrated cable managementGrommet pass-through routes power and data cables from work surface to floor
L-shaped corner layoutExtends side return to create additional work and storage space for attendant
Recessed knee openingProvides unobstructed seated legroom under main work surface
Scratch-resistant work surfaceWipe-clean high-gloss finish resists daily wear and stains from office use
Flat-pack assembly designKnock-down construction enables lower shipping cost and on-site assembly
Lockable drawer internal dimensions400 x 350 x 140 mm
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Small office lobbyFits compact front-of-house space with single-staff reception coverage
Beauty salon receptionProvides concealed workspace and storage for client check-in and scheduling
Retail checkout counterServes as compact point-of-service counter for small boutique or studio
Clinic front deskSupports patient check-in and paperwork with hidden work surface storage
Open coworking entryCreates defined welcome point with clear visitor-staff visual separation
Reception staff configurationDesigned for single seated attendant with side return work surface space
Recommended adjacent furniturePairs with low-profile guest seating and under-desk CPU holder for full setup
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for desk stability
EN 527-2:2016Office worktables dimensional requirements, applicable for seated work clearance
EN 14749:2016Domestic and kitchen storage units safety requirements, applicable for drawer safety
EN 12521:2015Furniture strength, durability and safety for non-domestic seating-adjacent tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for strength, durability and structural integrity
ANSI/BIFMA X5.9-2019Storage units standard for drawer cycle and load performance
ANSI/BIFMA G1-2013Ergonomic guideline for office work surface height and clearance dimensions
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for panel strength and finish quality
GB/T 3327-2018Dimensions and tolerances for office desks, applicable for work surface height and clearance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for core board E1 compliance
GB/T 4897.3-2015Requirements for particleboard used in furniture, applicable for core panel material
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for panel strength and finish quality;
2. GB/T 3327-2018:Dimensions and tolerances for office desks, applicable for work surface height and clearance;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for core board E1 compliance;
4. GB/T 4897.3-2015:Requirements for particleboard used in furniture, applicable for core panel material;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RC-L2T-WB-1600

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RC-L2T-WB-1600

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RC-L2T-WB-1600打开导出工具

页面快速操作

发布采购询价

产品描述

The RC-L2T-WB-1600 unbranded reception desk features a modern, minimalist L-shaped corner structure designed to balance welcoming presentation and functional staff workspace. Its two-tier form includes a raised front privacy fascia finished in gloss white laminated MDF with thin black grid inlay, trimmed with a matte black rigid PVC or powder-coated metal kickplate strip for sharp visual contrast. The high-gloss white laminate work surfaces are accented by matching 2mm thick white PVC edge banding, creating a clean, polished profile that anchors entry spaces without visual clutter. The side return extends outward to expand dedicated staff work area, while the recessed knee opening sits beneath the main work surface to provide unobstructed seated legroom for the single supported attendant. The desk is built on an E1-grade high-density particleboard core, with a 25mm thick scratch-resistant high-gloss white laminate work surface rated for 100kg static load, and laminate finish tested to 2000 cycles of abrasion resistance for daily wear and stain resistance. Lockable storage uses cold-rolled steel ball-bearing full-extension slides rated for 50000 open-close cycles, secured by a matte black zinc alloy keyed cam lock, with adjacent storage doors fitted with hinges rated for 80000 cycles. All components are fastened with zinc-plated steel cam lock screws and confirmat screws, and a black ABS plastic cable pass-through grommet routes power and data cables neatly from the work surface to the floor. Functional design elements include the 350mm tall raised privacy panel that blocks visitor line of sight to work surface items, the key-locked drawer that secures valuables and sensitive paperwork on the attendant side, and an adjacent open storage bay sized to hold frequently used office supplies for easy access. The overall unit measures 1600 x 1200 x 1100mm, with a 750mm main work surface height, 690mm knee clearance height, 800mm knee clearance width, and an open storage compartment sized 400 x 350 x 150mm. This desk is suited for small office lobbies with single-staff reception coverage, beauty salon reception zones for client check-in and scheduling, small boutique or studio retail checkout points, clinic front desks for patient check-in and paperwork processing, and open coworking entry areas to create a defined welcome point with clear visitor-staff visual separation. It supports a maximum seated user weight of 120kg. For procurement, note each unit ships in multiple cartons with a total packaged gross weight of 180kg and 1m³ packaging volume, requiring 40 minutes of assembly per set. No additional matching pieces are specified as part of the base product offering.
