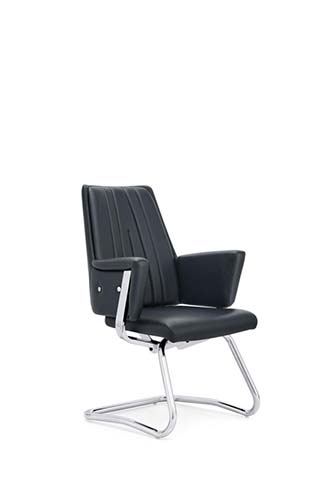

商品供应商Black Channel-Tufted Cantilever Conference Chair with Padded Armrests，Black smooth upholstery over foam padding with tailored edge stitching
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 610 × 650 × 1000 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Recommended occupant weight | 160 kg | |
|---|---|---|
| Net weight | 13 kg | |
| Seat foam thickness | 70 mm | |
| Seat foam density | 45 kg/m3 | |
| Back foam thickness | 40 mm | |
| Back foam density | 35 kg/m3 | |
| Foam rebound resilience | 40 percent | |
| Upholstery material thickness | 1.2 mm | |
| Abrasion resistance target | 50000 Martindale cycles | |
| Seam stitch pitch | 8 stitches per 25 mm |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Seat upholstery | Black smooth upholstery over foam padding with tailored edge stitching | |
|---|---|---|
| Back upholstery | Black smooth upholstery with seven visible vertical channel seams | |
| Seat cushion core | Polyurethane foam pad, 70 mm engineering thickness and 45 kg/m3 engineering density | |
| Back cushion core | Polyurethane foam pad, 40 mm engineering thickness and 35 kg/m3 engineering density | |
| Arm pads | Black upholstered pads with padded tops and matching side panels | |
| Arm support structure | Polished chrome-plated round steel tube, 25 mm engineering diameter | |
| Cantilever base | Continuous chrome-plated steel wire-sled frame with two floor runners | |
| Back inner support board | 12 mm engineered wood or composite panel with edge framing | |
| Seat inner support board | 12 mm plywood or molded composite seat board | |
| Floor protection | Black polymer glide strips along each metal runner | |
| Frame fasteners | Steel bolted joints at arm, seat support, and back mounting points | |
| Surface finish | Polished chrome metal finish with black upholstered exterior surfaces |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Seating function | Fixed single-person conference seat with a 510 mm-wide padded cushion and 450 mm seat height | |
|---|---|---|
| Back support | Fixed medium-high back with 560 mm back height and 10-degree recline for meeting-room posture | |
| Cantilever movement | Continuous sled frame provides controlled flex without rotation, recline lock, or gas-height adjustment | |
| Arm support | Two fixed padded armrests at 220 mm above the seat provide forearm support during meetings | |
| Floor handling | Two full-length sled runners spread load and allow short repositioning on hard floors by lifting or sliding | |
| Upholstery styling | Vertical channel tufting divides the back into seven tailored panels for a formal executive appearance | |
| Stacking capability | Non-stacking construction due to the continuous enclosed cantilever frame and padded arm panels | |
| Swivel and height adjustment | No swivel, tilt, gas lift, or seat-depth mechanism is present in the fixed visitor-chair structure | |
| Floor protection | Continuous polymer runner glides reduce direct chrome contact across a 650 mm floor footprint | |
| Access and egress | Open front sled design gives 250 mm under-seat clearance and permits side or frontal entry | |
| Backrest recline from vertical | 10 degrees | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Executive conference room | Formal black channel-back design suits boardrooms and meeting tables where a uniform non-swivel visitor chair is required | |
|---|---|---|
| Visitor and guest seating | Fixed armrests and stable sled base suit short-to-medium duration guest meetings in reception or manager offices | |
| Open-plan meeting area | Four or more chairs can be specified around a 2400 mm meeting table with consistent black upholstery and chrome finishes | |
| Training and interview room | The 450 mm seat height and padded back support formal interview and training use without rolling-casual movement | |
| Hotel business center | Scuff-resistant chrome runners and dark upholstery are suited to shared business lounges requiring tidy executive seating | |
| Home office study | The chair can serve a traditional desk when a non-adjustable formal visitor aesthetic is preferred, but it offers no height or tilt adjustment | |
| Seating layout recommendation | Provide 650 mm table-width allowance per chair and 800 mm rear circulation clearance for the 650 mm-deep sled frame | |
| Floor surface recommendation | Use supplied continuous glides on tile, wood, vinyl, and low-pile carpet; inspect glides before polished-floor installation |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 16139 applicability | EN 16139 covers strength, durability, and safety for non-domestic seating and suits conference-chair procurement | |
|---|---|---|
| EN 1022 applicability | EN 1022 may be used to assess stability of the fixed cantilever chair on level floors | |
| EN 12520 applicability | EN 12520 may be used for residential seating safety if the chair is also sold for home offices |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.4 applicability | ANSI/BIFMA X5.4 lounge and public-office seating criteria may guide static and fatigue evaluation | |
|---|---|---|
| ANSI/BIFMA X5.1 applicability | ANSI/BIFMA X5.1 may be used as an alternate office-chair strength reference where contract terms permit | |
| BIFMA E3 applicability | BIFMA E3 may support sustainable-material and packaging documentation if requested by the buyer |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324 applicability | GB/T 3324 general technical requirements for wooden furniture may apply to internal seat and back boards | |
|---|---|---|
| GB/T 10357.3 applicability | GB/T 10357.3 strength and durability test methods for chairs may guide back, seat, and arm load verification | |
| GB/T 3325 applicability | GB/T 3325 metal furniture requirements may apply to the steel cantilever frame and finish | |
| GB 28007 applicability | GB 28007 may apply when specified for children's furniture, but this product is sized as an adult conference chair |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324 applicability：GB/T 3324 general technical requirements for wooden furniture may apply to internal seat and back boards； 2. GB/T 10357.3 applicability：GB/T 10357.3 strength and durability test methods for chairs may guide back, seat, and arm load verification； 3. GB/T 3325 applicability：GB/T 3325 metal furniture requirements may apply to the steel cantilever frame and finish； 4. GB 28007 applicability：GB 28007 may apply when specified for children's furniture, but this product is sized as an adult conference chair； 最终交付参数、检测报告和验收标准以双方采购合同为准。
