PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	17 kg
Recommended user weight capacity	136 kg
Static base verification load	680 kg
Recommended daily usage	8 hours
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound rating	40%
Fabric/upholstery abrasion rating	50,000 Martindale cycles
Caster rolling durability	100,000 cycles
Seat tilt mechanism durability	120,000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Beige smooth upholstery over padded seat, likely leather, synthetic leather, or coated fabric; visible grain and exact hide type require BOM confirmation
Backrest upholstery	Beige upholstered padded back panel with stitched perimeter and subtly rounded corners
Seat cushion core	Molded polyurethane foam, 80 mm thick at 45 kg/m3 target density
Back cushion core	Shaped polyurethane foam, 80 mm center thickness at 35 kg/m3 target density
Armrest structure	Upholstered curved loop arms with rigid internal support and matching beige outer surface
Back support frame	Rigid internal back board or steel frame with black side hinges visible at the recliner pivots
Seat support board	12 mm molded plywood or steel seat shell under cushion, bolted to mechanism
Tilt mechanism	Black steel multi-position tilt mechanism with visible operating lever and central gas-lift socket
Gas lift	50 mm chrome-plated steel telescopic gas lift, Class 4 procurement grade, 100 mm stroke
Five-star base	Polished aluminum alloy five-star base with five tubular/die-cast spokes
Casters	Five black twin-wheel swivel casters with hard-floor nylon treads and steel mounting stems
Fasteners and hinges	Black powder-coated steel pivot brackets, lever, and zinc-plated frame fasteners

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Seat height adjustment	Pneumatic lever adjusts seat height through a 100 mm stroke from 430 to 530 mm
360-degree swivel	Central gas-lift bearing permits 360-degree seat and back rotation on the fixed five-star base
Back recline	Synchronized or center-tilt mechanism allows a 12-degree recline from upright 95 degrees to 107 degrees
Recline lock	Black side lever enables upright lock and release for controlled recline
Tilt tension control	Under-seat rotary knob adjusts recline resistance for users up to 136 kg
Arm support	Fixed curved armrests provide 230 mm forearm support and do not adjust in height or width
Mobility	Five 60 mm twin-wheel casters provide omnidirectional movement on hard floors and low-pile carpet
Auto-return gas lift	Height column returns smoothly after lever release and supports repeated daily adjustment
Stability geometry	620 mm five-star base spreads load beyond the 500 mm seat width for meeting-room use
Caster braking behavior	Hard non-locking twin wheels are specified; no visible brake pedal or weight-activated brake
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference room	Use around boardroom tables where mobile, low-profile beige seating supports meetings up to 2 hours
Private office	Pair with a 760 mm high executive desk for computer, writing, and visitor-facing work
Open-plan workstation	Deploy in quiet office zones requiring a polished professional appearance and easy repositioning
Manager meeting area	Place in one-to-one discussion rooms where fixed arms and cushioned back provide formal support
Reception or guest setting	Use behind reception desks or in consultant rooms with light-duty visitor use
Hard-floor office interiors	Specify hard-floor treads for tile, sealed concrete, timber, and low-pile carpet without changing chair geometry
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 office seating dimensions	Use dimensional safety requirements for seat, back, arm clearance, and adjustability checks
EN 1335-2 office seating safety	Require structural safety, stability, and mechanism integrity verification under intended office use
EN 1335-3 office seating test methods	Use standardized static, fatigue, impact, and caster test methods for factory acceptance
EN 1021-1 cigarette ignition	Specify upholstery cigarette-ignition testing if fire performance is required by the project
EN 12521 contract furniture durability	Consider durability and stability requirements for non-domestic seating applications

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 office chairs	Use back, seat, base, arm, caster, and tilt tests for commercial swivel chair acceptance

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3 furniture strength and durability	Apply seat and back static-load, impact, and fatigue test methods for metal and upholstered office chairs
GB/T 28001 human-centered ergonomics	Use as an office-seating ergonomic review reference for posture, clearance, and adjustability, not as a certification claim
GB 17927 upholstered furniture fire safety	Use the relevant ignition-resistance method if Chinese-market fire performance is contractually required

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3 furniture strength and durability：Apply seat and back static-load, impact, and fatigue test methods for metal and upholstered office chairs；
2. GB/T 28001 human-centered ergonomics：Use as an office-seating ergonomic review reference for posture, clearance, and adjustability, not as a certification claim；
3. GB 17927 upholstered furniture fire safety：Use the relevant ignition-resistance method if Chinese-market fire performance is contractually required；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OFC-MB-CRM-5STAR-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OFC-MB-CRM-5STAR-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-MB-CRM-5STAR-01打开导出工具

页面快速操作

发布采购询价

产品描述

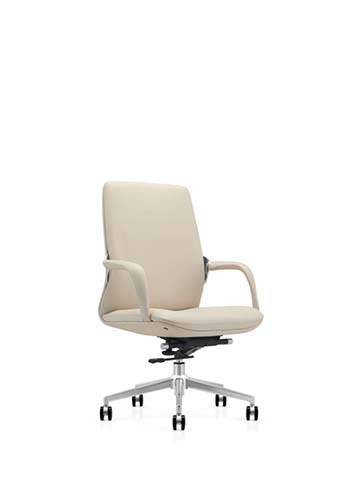

The Mid-Back Upholstered Swivel Conference Chair, model OFC-MB-CRM-5STAR-01, presents a refined executive seating profile with beige smooth upholstery, a padded mid-height backrest, and matching curved loop armrests. Its back panel features stitched perimeter detailing and subtly rounded corners, while the polished aluminum five-star base and black twin-wheel casters create a balanced contrast between soft visual warmth and structured metallic support. The fixed armrests provide a formal, enveloping frame and offer 230 mm of forearm support. Overall dimensions are 620 x 620 x 1010 mm, with a 540 mm clear width between arms, a 90 mm finished seat cushion, 70 mm backrest padding, and a 240 mm lumbar support zone. Construction centers on a molded polyurethane seat cushion with a 45 kg/m3 target density and a shaped polyurethane back cushion with a 35 kg/m3 target density. The visible upholstery is beige and smooth, though the precise material composition requires bill-of-material confirmation between leather, synthetic leather, or coated fabric. Beneath the cushion is a 12 mm molded plywood or steel seat shell bolted to a black steel multi-position tilt mechanism. The back uses a rigid internal board or steel frame, with black side hinges visible at the recline pivots. A Class 4 procurement grade, 50 mm chrome-plated steel gas lift provides a 100 mm height-adjustment stroke. The chair supports pneumatic seat-height adjustment from 430 to 530 mm and full 360-degree swivel on the fixed five-star base. Recline movement extends from an upright 95-degree angle to 107 degrees, controlled through a synchronized or center-tilt mechanism, an upright lock and release lever, and an under-seat tension knob suited to users up to 136 kg. Five 60 mm twin-wheel casters allow omnidirectional movement on hard floors and low-pile carpet. With a 17 kg net weight and an 8-hour daily-use recommendation, it is suited to boardrooms, private executive offices, open-plan work zones, manager meeting rooms, reception areas, and consultant rooms. Procurement teams should confirm exact upholstery material, caster tread suitability, assembly planning, and packaged logistics: each set ships in two cartons with 23 kg packaged gross weight and a 40-minute reference assembly time.

Mid-Back Upholstered Swivel Conference Chair Specifications
