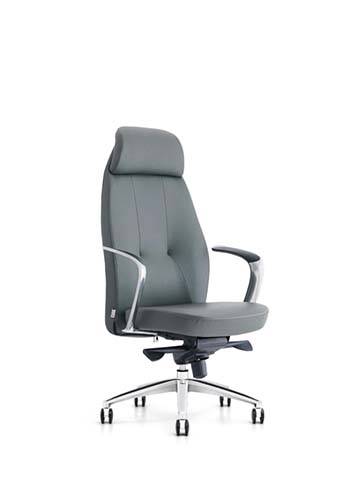

商品供应商High-Back Gray Upholstered Executive Swivel Chair，Gray smooth upholstery over padded cushion, visible as continuous soft-faced seating surface; material type requires BOM confirmation
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 680 × 700 × 1250 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Net weight | 22 kg | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 35 kg/m3 | |
| Foam rebound rate | 45% | |
| Fabric/leather abrasion rating | 60,000 Martindale cycles | |
| Recommended user stature range | 190 cm | |
| Gas-lift static load rating | 400 kg | |
| Base static load rating | 1136 kg | |
| Caster rolling durability | 100,000 cycles |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Seat upholstery | Gray smooth upholstery over padded cushion, visible as continuous soft-faced seating surface; material type requires BOM confirmation | |
|---|---|---|
| Backrest upholstery | Gray upholstered tall back with vertical seam lines and integrated head section | |
| Seat cushion | 100 mm molded foam core on a steel or plywood seat shell | |
| Back cushion | 70 mm contoured foam pad over rigid load-bearing back shell | |
| Arm pads | Gray upholstered padded pads fixed to polished chrome support loops | |
| Arm frame | Polished chrome-plated welded steel loop rising from the seat mechanism | |
| Five-star base | Polished chrome-plated metal five-star base with five radiating legs | |
| Casters | Black twin-wheel swivel casters with chrome mounting stems | |
| Gas lift | Chrome telescopic gas lift with black lower shroud and 50 mm outer tube | |
| Tilt mechanism | Black powder-coated steel multi-function mechanism with side adjustment levers | |
| Internal seat plate | 3.0 mm steel support plate recommended for the mechanism and seat shell | |
| Stitching | Gray matching thread with vertical panel seams and 8 mm stitch pitch |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Swivel function | 360-degree full rotation around the gas-lift center with no directional lock | |
|---|---|---|
| Seat height adjustment | 100 mm vertical lift controlled by the right-side paddle, giving 530 mm seat height | |
| Backrest recline | Synchronous tilt movement with 18-degree maximum recline from upright to relaxed posture | |
| Tilt tension control | Rotating tension knob under the mechanism adjusts resistance for user body weight | |
| Tilt lock | Multi-position lock with upright lock and 3 intermediate recline positions | |
| Backrest support | Fixed tall lumbar-contoured back with integrated headrest and no separate removable pillow | |
| Arm support | Fixed arm pads at 230 mm above the seat, suitable for keyboard and desk-side forearm support | |
| Mobility | Five 60 mm twin-wheel casters enable rolling on hard floors and low-pile carpet | |
| Seat depth use | 480 mm fixed seat depth provides thigh support without requiring adjustable depth | |
| Occupant access | 500 mm opening between arms accommodates users up to the recommended 160 kg capacity | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Packed carton dimensions | 820 x 680 x 400 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Private executive office | High-back head and lumbar support suits long-duration management work at 760 mm desks | |
|---|---|---|
| Manager meeting room | Swivel and recline functions support discussion, computer work, and short review sessions | |
| Corporate director workstation | Polished chrome frame and gray upholstery provide a formal appearance for senior workspaces | |
| Home office professional setup | Mobile five-star base and padded arms support daily computer work in a private study | |
| Conference counseling room | Fixed arms and quiet upholstered form suit consultations, interviews, and formal meetings | |
| Commercial procurement standardization | 160 kg load target and replaceable caster/gas-lift components support multi-chair fleet purchasing | |
| Hard-floor and low-pile-carpet offices | 60 mm twin-wheel casters are specified for common finished office floor surfaces | |
| Users 160-190 cm tall | Seat depth, high back, headrest, and 530 mm seat height target average to tall adults |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1335-1:2020 office furniture seating | Applies to office-chair dimensions, safety terminology, and ergonomic dimensional verification | |
|---|---|---|
| EN 1335-2:2018 office furniture seating safety | Applies to structural safety, stability, mechanism integrity, and caster requirements for type testing | |
| EN 1335-3:2009 office furniture seating test methods | Applies to static load, fatigue, rolling, and mechanism durability laboratory verification | |
| EN 1022:2018 domestic furniture seating stability | Applies to overturning assessment for upright and reclined seating positions |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.1 static load tests | Applies concentrated seat, backrest, and arm loads appropriate to a 160 kg user target |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 general technical furniture requirements | Applies to dimensional stability, workmanship, assembly safety, and finished-furniture inspection of the office chair | |
|---|---|---|
| GB/T 10357.3-2013 furniture mechanical testing | Applies to chair backrest strength and fatigue test methods during procurement verification | |
| GB/T 10357.6-2013 furniture mechanical testing | Applies to chair arm vertical downward static-load and durability testing |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 general technical furniture requirements：Applies to dimensional stability, workmanship, assembly safety, and finished-furniture inspection of the office chair； 2. GB/T 10357.3-2013 furniture mechanical testing：Applies to chair backrest strength and fatigue test methods during procurement verification； 3. GB/T 10357.6-2013 furniture mechanical testing：Applies to chair arm vertical downward static-load and durability testing； 最终交付参数、检测报告和验收标准以双方采购合同为准。
