PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	680 × 660 × 1280 mm
Seat width	520
Seat depth	500
Seat height range	500 mm
Backrest height	720
Backrest width	500
Headrest dimensions	480 x 180 mm
Armrest height from seat	220
Armrest pad dimensions	260 x 60 mm
Aluminum base diameter	700
Caster wheel diameter	60
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended maximum user weight	150
Seat foam density	45
Backrest foam density	35
Gas lift static load rating	1000
Base static load rating	1500
Caster rolling durability	100000
Chair net weight range	22 kg
Warranty period reference	5
Upholstery abrasion resistance	50000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat and back upholstery	Woven fabric in navy blue, smooth matte finish
Seat cushion core	High-density polyurethane foam, 80 mm thick at front edge
Backrest core	Molded polyurethane foam over plywood inner frame, 60 mm thick at lumbar zone
Armrest structure	Polished cast aluminum outer frame with fabric-padded top
Chair base	Five-spoke polished aluminum die-cast base, 5 mm wall thickness at spoke section
Height-adjustment cylinder	Chrome-plated steel gas lift, Class 3 standard specification
Tilt mechanism	Steel multi-function tilt plate, black powder-coated finish
Caster wheels	Nylon wheel body with black soft tread and chrome fork housing
Stitching details	Lockstitch upholstery seams at 6 stitches per 50 mm
Headrest assembly	Integrated polyurethane foam pad with matching fabric upholstery, attached to top of backrest frame
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Seat height adjustment	Pneumatic height adjustment with 80 mm total travel, operated by right-side lever
Backrest tilt function	Synchronous tilt mechanism with multiple lockable positions, maximum recline angle 12 degrees
Tilt tension control	Rotary tension knob under seat adjusts recline resistance to user weight
Swivel function	360-degree full rotation around central gas lift column
Mobility	Five dual-wheel casters for smooth movement on hard and carpeted floors
Headrest support	Fixed integrated padded headrest providing continuous neck and upper-back support
Fixed arm support	Fixed-height polished aluminum arms with 60 mm wide padded tops, positioned 220 mm above the seat for forearm resting
Lumbar contour	Built-in gentle lumbar curve in backrest foam shaping
Synchronous backrest tilt	Synchronous tilt mechanism with 4 lockable positions, maximum recline angle of 12 degrees from upright
360-degree swivel	Full 360-degree continuous rotation around the central gas lift column, supported by a bearing assembly in the mechanism
Floor mobility	Five 60 mm diameter dual-wheel casters mounted at each base spoke end, suitable for hard floors and low-pile carpet
Fixed headrest support	Fixed integrated padded headrest positioned at 720 mm above the seat, providing continuous neck and upper-back support

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Packaging configuration	1 chair per carton, knock-down assembly with seat-back, base, gas lift, arms and casters separated
Carton dimensions	820 x 620 x 380 mm
Gross weight per carton	25 kg
Carton volume	0.193 m³
Assembly time	30 minutes
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office	Suitable for private executive offices and management workstations as a primary daily seating solution
Boardrooms and meeting rooms	Appropriate for high-end boardrooms and executive meeting rooms for long-duration meetings up to 4 hours
Design-focused workplaces	Recommended for modern and minimalist office interiors where polished metal and clean line aesthetics are specified
Daily computer use	Supports 8-hour seated computer work with adjustable height and tilt locking for personalized posture
Visitor and reception areas	Can be used in premium reception or waiting areas to convey a professional corporate image
Sustainability considerations	Aluminum base and frame components are recyclable at end of life, supporting circular office furniture programs
Private executive offices	Suitable for private executive and management workstations as a primary 8-hour daily seating solution
Modern design workplaces	Recommended for minimalist and contemporary office interiors where clean metal lines and muted fabric finishes are specified

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1	2020 Office furniture - Office work chair - Part 1: Dimensions - Determination of dimensions
EN 1335-2	2019 Office furniture - Office work chair - Part 2: Safety requirements

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收参考	ANSI/BIFMA X5.1 通用办公椅

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3	Determination of strength and durability of chairs and stools

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3：Determination of strength and durability of chairs and stools；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EHC-HB-BL-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EHC-HB-BL-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EHC-HB-BL-01打开导出工具

页面快速操作

发布采购询价

产品描述

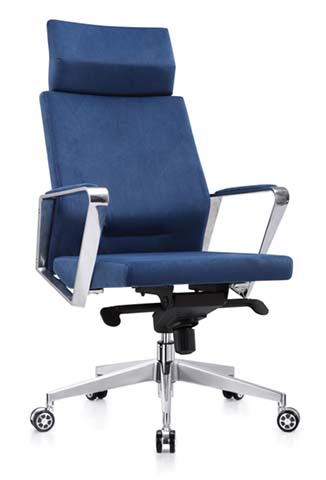

This unbranded high-back fabric executive office chair (model EHC-HB-BL-01) presents a sleek, professional silhouette defined by clean lines and balanced proportions. Its navy blue woven fabric upholstery with a smooth matte finish pairs with polished aluminum armrests and a five-spoke die-cast aluminum base, creating a refined, contemporary aesthetic that fits both formal and modern work environments. The integrated padded headrest extends seamlessly from the tall backrest, while the rigid angular arm frames add structural visual interest without overwhelming the overall streamlined form. Constructed for durability and support, the chair features a steel internal tilt mechanism with a black powder-coated finish, a chrome-plated steel Class 3 gas lift cylinder, and high-density polyurethane foam padding throughout the seat and backrest. The backrest combines molded foam over a plywood inner frame, with a built-in gentle lumbar contour shaped into the foam. The armrests have a polished cast aluminum outer frame topped with fabric-padded surfaces, and the base uses die-cast aluminum with a five-point geometry for stable support. Nylon dual-wheel casters with soft black tread and chrome fork housings attach to each spoke end, and lockstitch seams finish the upholstery for a polished, long-lasting look. Functionally, the chair offers pneumatic seat height adjustment operated via a right-side lever, a synchronous tilt mechanism with lockable positions and a maximum 12-degree recline angle, and a rotary tension knob under the seat to adjust recline resistance to individual user weight. It provides full 360-degree swivel rotation around the central gas lift column, and the fixed-height padded armrests sit positioned for comfortable forearm resting. The fixed integrated headrest delivers continuous neck and upper-back support, and the built-in lumbar curve promotes proper spinal alignment during extended seated use. The dual-wheel casters enable smooth movement across hard floors and low-pile carpet surfaces. This seating solution is suited for a range of professional spaces. It works well as a primary dly seating option in private executive offices and management workstations, and fits naturally in high-end boardrooms and executive meeting rooms for long-duration meetings. It is also appropriate for modern and minimalist office interiors that prioritize polished metal and clean line aesthetics, and can be used in premium reception or waiting areas to convey a professional corporate image. It supports 8-hour seated computer work through its adjustable height and tilt locking features, making it versatile for both focused individual work and collaborative settings. For procurement planning, the chair ships in a knock-down configuration with one unit per carton, with components separated for efficient transport. Single-person assembly uses standard tools. The aluminum base and frame components are recyclable at end of life, supporting circular office furniture initiatives for organizations focused on sustnable procurement practices.

High-Back Fabric Executive Office Chair with Polished Aluminum Arms Specifications
