＞ Home ＞ Office Desks & Chairs Furniture ＞ Office Chair Series ＞ Executive Boss Chair ＞ EHC-HB-BL-01

EHC-HB-BL-01

Code：XAALUVV1
Request supplier quotes

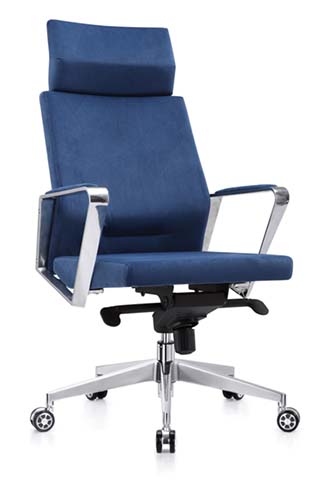

High-Back Fabric Executive Office Chair with Polished Aluminum Arms Key Specifications 2026-08-02 09:30

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EHC-HB-BL-01

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 660 x 1280 mm
Seat width520
Seat depth500
Seat height range500 mm
Backrest height720
Backrest width500
Headrest dimensions480 x 180 mm
Armrest height from seat220
Armrest pad dimensions260 x 60 mm
Aluminum base diameter700
Caster wheel diameter60
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Recommended maximum user weight150
Seat foam density45
Backrest foam density35
Gas lift static load rating1000
Base static load rating1500
Caster rolling durability100000
Chair net weight range22 kg
Warranty period reference5
Upholstery abrasion resistance50000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryWoven fabric in navy blue, smooth matte finish
Seat cushion coreHigh-density polyurethane foam, 80 mm thick at front edge
Backrest coreMolded polyurethane foam over plywood inner frame, 60 mm thick at lumbar zone
Armrest structurePolished cast aluminum outer frame with fabric-padded top
Chair baseFive-spoke polished aluminum die-cast base, 5 mm wall thickness at spoke section
Height-adjustment cylinderChrome-plated steel gas lift, Class 3 standard specification
Tilt mechanismSteel multi-function tilt plate, black powder-coated finish
Caster wheelsNylon wheel body with black soft tread and chrome fork housing
Stitching detailsLockstitch upholstery seams at 6 stitches per 50 mm
Headrest assemblyIntegrated polyurethane foam pad with matching fabric upholstery, attached to top of backrest frame
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment with 80 mm total travel, operated by right-side lever
Backrest tilt functionSynchronous tilt mechanism with multiple lockable positions, maximum recline angle 12 degrees
Tilt tension controlRotary tension knob under seat adjusts recline resistance to user weight
Swivel function360-degree full rotation around central gas lift column
MobilityFive dual-wheel casters for smooth movement on hard and carpeted floors
Headrest supportFixed integrated padded headrest providing continuous neck and upper-back support
Fixed arm supportFixed-height polished aluminum arms with 60 mm wide padded tops, positioned 220 mm above the seat for forearm resting
Lumbar contourBuilt-in gentle lumbar curve in backrest foam shaping
Synchronous backrest tiltSynchronous tilt mechanism with 4 lockable positions, maximum recline angle of 12 degrees from upright
360-degree swivelFull 360-degree continuous rotation around the central gas lift column, supported by a bearing assembly in the mechanism
Floor mobilityFive 60 mm diameter dual-wheel casters mounted at each base spoke end, suitable for hard floors and low-pile carpet
Fixed headrest supportFixed integrated padded headrest positioned at 720 mm above the seat, providing continuous neck and upper-back support
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging configuration1 chair per carton, knock-down assembly with seat-back, base, gas lift, arms and casters separated
Carton dimensions820 x 620 x 380 mm
Gross weight per carton25 kg
Carton volume0.193 m³
Assembly time30 minutes
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive officeSuitable for private executive offices and management workstations as a primary daily seating solution
Boardrooms and meeting roomsAppropriate for high-end boardrooms and executive meeting rooms for long-duration meetings up to 4 hours
Design-focused workplacesRecommended for modern and minimalist office interiors where polished metal and clean line aesthetics are specified
Daily computer useSupports 8-hour seated computer work with adjustable height and tilt locking for personalized posture
Visitor and reception areasCan be used in premium reception or waiting areas to convey a professional corporate image
Sustainability considerationsAluminum base and frame components are recyclable at end of life, supporting circular office furniture programs
Private executive officesSuitable for private executive and management workstations as a primary 8-hour daily seating solution
Modern design workplacesRecommended for minimalist and contemporary office interiors where clean metal lines and muted fabric finishes are specified
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-12020 Office furniture - Office work chair - Part 1: Dimensions - Determination of dimensions
EN 1335-22019 Office furniture - Office work chair - Part 2: Safety requirements
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3Determination of strength and durability of chairs and stools
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3: Determination of strength and durability of chairs and stools;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EHC-HB-BL-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EHC-HB-BL-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EHC-HB-BL-01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This unbranded high-back fabric executive office chr (model EHC-HB-BL-01) presents a sleek, professional silhouette defined by clean lines and balanced proportions. Its navy blue woven fabric upholstery with a smooth matte finish prs with polished aluminum armrests and a five-spoke die-cast aluminum base, creating a refined, contemporary aesthetic that fits both formal and modern work environments. The integrated padded headrest extends seamlessly from the tall backrest, while the rigid angular arm frames add structural visual interest without overwhelming the overall streamlined form. Constructed for durability and support, the chr features a steel internal tilt mechanism with a black powder-coated finish, a chrome-plated steel Class 3 gas lift cylinder, and high-density polyurethane foam padding throughout the seat and backrest. The backrest combines molded foam over a plywood inner frame, with a built-in gentle lumbar contour shaped into the foam. The armrests have a polished cast aluminum outer frame topped with fabric-padded surfaces, and the base uses die-cast aluminum with a five-point geometry for stable support. Nylon dual-wheel casters with soft black tread and chrome fork housings attach to each spoke end, and lockstitch seams finish the upholstery for a polished, long-lasting look. Functionally, the chr offers pneumatic seat height adjustment operated via a right-side lever, a synchronous tilt mechanism with lockable positions and a maximum 12-degree recline angle, and a rotary tension knob under the seat to adjust recline resistance to individual user weight. It provides full 360-degree swivel rotation around the central gas lift column, and the fixed-height padded armrests sit positioned for comfortable forearm resting. The fixed integrated headrest delivers continuous neck and upper-back support, and the built-in lumbar curve promotes proper spinal alignment during extended seated use. The dual-wheel casters enable smooth movement across hard floors and low-pile carpet surfaces. This seating solution is suited for a range of professional spaces. It works well as a primary dly seating option in private executive offices and management workstations, and fits naturally in high-end boardrooms and executive meeting rooms for long-duration meetings. It is also appropriate for modern and minimalist office interiors that prioritize polished metal and clean line aesthetics, and can be used in premium reception or wting areas to convey a professional corporate image. It supports 8-hour seated computer work through its adjustable height and tilt locking features, making it versatile for both focused individual work and collaborative settings. For procurement planning, the chr ships in a knock-down configuration with one unit per carton, with components separated for efficient transport. Single-person assembly uses standard tools. The aluminum base and frame components are recyclable at end of life, supporting circular office furniture initiatives for organizations focused on sustnable procurement practices.
