mm / 英寸自动双单位换算 · 工程采购基础规格

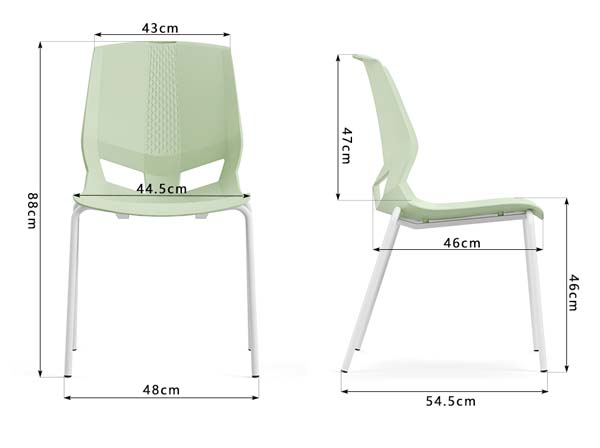

| Overall dimensions | 480 x 545 x 880 mm | |
|---|---|---|
| Backrest top width | 430 mm | |
| Seat width | 445 mm | |
| Seat depth | 460 mm | |
| Seat height from floor | 460 mm | |
| Backrest height above seat | 470 mm | |
| Front leg base width | 480 mm | |
| Waterfall seat front edge overhang | 20 mm | |
| Carry cutout height | 80 mm | |
| Leg tube diameter | 16 mm | |
| Leg tube wall thickness | 2.0 mm | |
| Floor glide diameter | 30 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Unit net weight | 7 kg | |
|---|---|---|
| Static seat load capacity | 200 kg | |
| Maximum stack height on floor | 15 chairs | |
| Frame static load rating | 500 kg | |
| PP shell impact resistance | 10 J drop test rating | |
| Surface abrasion resistance (PP) | 30000 cycles | |
| Floor glide scratch resistance | Pass 10000 cycle floor friction test | |
| Color availability | 5 standard colors | |
| Frame warranty period | 5 years | |
| Plastic component warranty period | 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat shell | Injection-molded high-density polypropylene, 5mm wall thickness, textured matte finish | |
|---|---|---|
| Backrest shell | Injection-molded high-density polypropylene, 4mm wall thickness, central vertical ribbed lumbar texture | |
| Frame tubing | 16mm diameter cold-rolled steel, 2.0mm wall thickness, white powder-coated rust-resistant finish | |
| Floor glides | Injection-molded nylon, non-slip, non-marking, press-fit into leg ends | |
| Carry cutout reinforcement | Integrated molded PP ribbing around seat-back junction cutout | |
| Backrest lumbar zone | Molded textured vertical rib pattern integrated into PP shell for support | |
| Seat surface | Contoured matte PP with waterfall front edge to reduce leg pressure | |
| Frame weld joints | TIG-welded steel joints smoothed before powder coating | |
| PP finish additives | UV-stabilized, fade-resistant, stain-resistant PP compound | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Vertical stackability | Nested interlocking design allows stacking up to 15 chairs without added hardware | |
|---|---|---|
| Integrated carry handle | Open cutout at seat-back junction acts as a grip for single-hand lifting and transport | |
| Fixed position seating | Non-swivel, non-reclining, non-height-adjustable rigid frame for stable meeting use | |
| Ergonomic lumbar support | Contoured backrest with central ribbed texture aligns with natural lumbar curve | |
| Waterfall seat edge | Curved front seat edge reduces pressure on back of thighs during extended sitting | |
| Ventilation cutout | Open gap at seat-back junction allows air circulation to reduce back heat buildup | |
| Floor protection | Nylon press-fit glides on all leg ends prevent scratching and reduce movement noise | |
| Nesting alignment | Angled splayed leg geometry automatically aligns chairs when stacked for stable storage | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Conference meeting rooms | Fixed stable armless seating suitable for boardroom and meeting space layouts | |
|---|---|---|
| Training and education spaces | Stackable design enables quick reconfiguration for training sessions and classrooms | |
| Office visitor and reception areas | Slim profile and light color creates welcoming, uncluttered reception seating | |
| Cafeteria and break rooms | Stain-resistant PP surface allows quick cleaning for food service environments | |
| Event and temporary seating | Lightweight stackable design supports fast setup and breakdown for events | |
| Open plan collaborative zones | Armless design allows flexible side-by-side placement for informal group work | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 | Non-domestic seating strength, durability and safety requirements for contract use | |
|---|---|---|
| EN 1022:2018 | Seating stability test method applicable to fixed non-adjustable chairs | |
| EN 13761:2002 | Office visitor chairs performance requirements for stacking models |
美国及加拿大家具标准
| ANSI/BIFMA X5.1-2017 | General purpose office chairs strength and durability test standard | |
|---|---|---|
| ANSI/BIFMA X5.4-2020 | Lounge and public seating requirements applicable to meeting room chairs |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame structural performance | |
|---|---|---|
| GB/T 35607-2017 | Limit of harmful substances in plastic furniture parts, applicable to PP seat/back | |
| GB/T 10357.3-2013 | Furniture mechanical test for chair and stool strength and durability |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for metal furniture, applicable to frame structural performance； 2. GB/T 35607-2017：Limit of harmful substances in plastic furniture parts, applicable to PP seat/back； 3. GB/T 10357.3-2013：Furniture mechanical test for chair and stool strength and durability； 最终交付参数、检测报告和验收标准以双方采购合同为准。
