Black Mesh Back Cantilever Sled Base Meeting Office Chair Specifications

MC-SLED-MESH-BLK-620

代码:ECT4QXV1
获取供应商报价
2026-08-12 14:43人气: 38
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MC-SLED-MESH-BLK-620

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

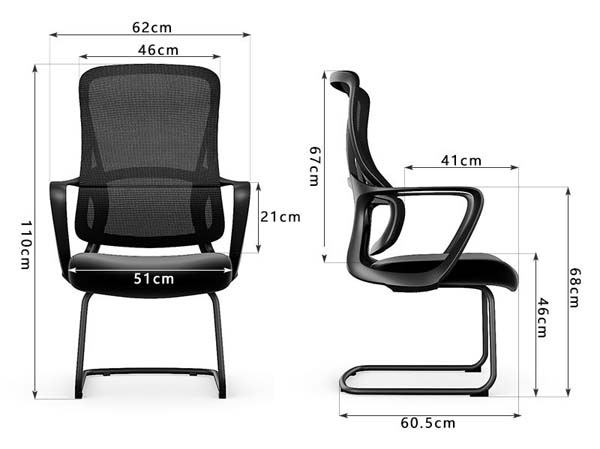

Overall dimensions620 x 605 x 1100 mm
Seat width510 mm
Seat depth460 mm
Seat height from floor460 mm
Backrest width460 mm
Backrest height from seat670 mm
Armrest height above seat210 mm
Armrest depth from seat front edge410 mm
Sled base span (front-to-back)605 mm
Armrest to armrest inner width510 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight15 kg
Recommended static load capacity113 kg
Seat foam density65 kg/m³
Seat foam thickness30 mm
Mesh abrasion resistance50000 cycles
Cantilever frame static load rating102 kg
Seam stitch pitch8 stitches per 30mm
Warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest constructionBreathable polyester office mesh tensioned over PP inner frame
Seat cushion coreHigh-density polyurethane foam with woven fabric upholstery
Cantilever frame tubing25mm diameter 2.0mm thick matte black powder-coated steel
ArmrestsFixed integrated black polypropylene loop arms connecting seat frame to backrest
Floor glidesInjection-molded non-slip polypropylene glides at sled base contact points
Seat support plate1.5mm thick molded plywood core under seat foam
Frame finishMatte black electrostatic powder coating on all steel components
Mesh stretch resistance30% glass-fiber reinforced PP back frame for mesh tension retention
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Base configurationFixed cantilever sled base with no casters, no swivel, no height adjustment
Seat ergonomicsWaterfall front seat edge to reduce under-leg pressure during extended sitting
Back supportIntegrated curved lumbar support shaping in mesh back for upright seated posture
Arm supportFixed closed-loop armrests providing stable upper body support for meeting use
Flex characteristicSlight controlled flex in cantilever frame for gentle seated movement without recline lock
Floor protectionNon-marring PP glides suitable for hard commercial flooring without scratching
Assembly configurationKnock-down construction requiring simple frame-to-seat bolt assembly
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Conference room seatingArranged around meeting tables for boardrooms, team meeting spaces and interview rooms
Reception and guest areasUsed in office lobbies, waiting zones and visitor reception spaces
Training room seatingDeployed in corporate training rooms and lecture spaces for multi-hour seated use
Open office guest seatingPositioned at desk sides for impromptu discussions and visitor seating adjacent to workstations
Home office supplemental seatingUsed as extra seating for home offices and small studio workspaces
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013 Level 2Applicable standard for non-domestic seating strength, durability and stability for office use
EN 1022:2018Applicable standard for seating stability determination for adult office seating
EN 1335-2:2018Applicable standard for office chair safety requirements for contract use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable standard for general-purpose office chairs, static, fatigue and impact test requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3-2013Applicable standard for mechanical strength and durability testing of office seating
GB/T 35607-2017Applicable standard for green product evaluation of furniture, volatile emission limits
GB 28007-2011Applicable safety standard for general seating, stability and structural safety requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 10357.3-2013:Applicable standard for mechanical strength and durability testing of office seating;
2. GB/T 35607-2017:Applicable standard for green product evaluation of furniture, volatile emission limits;
3. GB 28007-2011:Applicable safety standard for general seating, stability and structural safety requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MC-SLED-MESH-BLK-620

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MC-SLED-MESH-BLK-620

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MC-SLED-MESH-BLK-620打开导出工具

页面快速操作

发布采购询价

产品描述

The Black Mesh Back Cantilever Sled Base Meeting Office Chair (model MC-SLED-MESH-BLK-620) is an unbranded seating solution designed for collaborative and guest-facing spaces, with a streamlined monochromatic black aesthetic that aligns with modern commercial and residential work interiors. Its low-profile fixed cantilever sled base creates an open, uncluttered silhouette, while integrated closed-loop armrests create a cohesive visual profile that suits both formal and casual layout arrangements. The chair’s construction balances durability and seated comfort: the backrest uses breathable polyester office mesh tensioned over a 30% glass-fiber reinforced polypropylene inner frame, shaped with integrated curved lumbar support to encourage upright posture. The contoured seat features a high-density 65 kg/m³ polyurethane foam core 30mm thick, supported by a 14mm bent plywood base, upholstered in woven fabric with a waterfall front edge to reduce under-leg pressure during extended sitting. The frame is built from 25mm diameter, 2.0mm thick steel finished with matte black electrostatic powder coating, with fixed integrated polypropylene armrests that connect the seat frame directly to the back structure for stable upper body support. Non-slip, injection-molded polypropylene glides at the sled base contact points protect hard commercial flooring from scratches, while the cantilever frame delivers slight controlled flex for gentle seated movement without recline, swivel, caster, or height adjustment functions. The mesh back offers 50,000 cycles of abrasion resistance, the cantilever frame carries a 102kg static load rating, and the chair supports a 113kg recommended static load. All steel components feature a uniform matte black powder coat finish, with consistent seam stitching of 8 stitches per 30mm for upholstery durability. This chair is well-suited for arrangement around meeting tables in boardrooms, team meeting spaces, and interview rooms, as well as deployment in office lobbies, waiting zones, visitor reception areas, corporate training rooms, and lecture spaces. It also works as side guest seating adjacent to open office workstations for impromptu discussions, and as supplemental seating for home offices and small studio workspaces, with a recommended pairing with 2.4m executive desks. Procurement teams should note the chair ships as knock-down construction across two cartons per set, with 40 minutes of assembly required per unit. Packaged sets weigh 23kg, with a carton volume of 0.26m³, and 135 sets fit in a 20GP container at 85% space utilization, supporting efficient bulk planning for large fit-out projects.
