Mid-Back Mesh Ergonomic Office Task Chair with Blue Padded Seat Specifications

MBT-620-MESH-BL

代码:ZSZFBGV1
获取供应商报价
2026-08-12 12:52人气: 41
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MBT-620-MESH-BL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

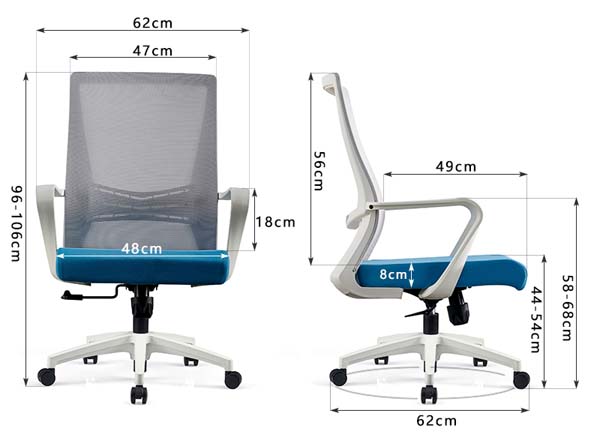

Overall dimensions (W x D x H max)620 x 620 x 1060 mm
Backrest width470 mm
Backrest height560 mm
Seat width480 mm
Seat depth490 mm
Seat cushion thickness80 mm
Seat height adjustable range540 mm
Armrest height above seat180 mm
Five-star base diameter340 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight136 kg
Net chair weight15 kg
Five-star base static load rating1000 kg
Caster rolling durability cycles100000 cycles
Seat cushion foam density45 kg/m³
Seat cushion foam rebound rate45%
Tilt lock maximum angle120°
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryTensioned breathable gray polyester mesh
Backrest frameLight gray PP with fiberglass reinforcement
Seat cushion coreMolded high-density polyurethane foam
Seat support inner panel12mm thick plywood
Seat upholsteryWear-resistant blue polyester fabric
ArmrestsFixed C-shaped light gray PP loop arms
Five-star baseLight gray reinforced nylon five-prong base
CastersBlack PU dual-wheel swivel casters
Gas lift columnChromed steel Class 3 pneumatic cylinder
Tilt mechanism plate2.5mm thick stamped steel
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustment100mm vertical travel via single under-seat lever
360-degree swivel rotationFull unrestricted rotation around central gas lift column
Rocker tilt function120° backward tilt with tension adjustment knob
Fixed integrated armrestsStatic 180mm height above seat, no flip or height adjustment
Contoured lumbar supportIntegrated molded mesh back contour for lower back alignment
Smooth floor mobilityDual-wheel casters for low-friction movement on hard and carpeted floors
Tilt lock featureLocks chair in upright position for focused desk work
Gas lift stroke length100 mm
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open office workstationsSized for standard 1400 mm desk widths, supports daily seated task work for employees
Home office study spacesCompact footprint fits small home desks, neutral colorway matches residential decor
Conference and meeting roomsFixed armrests and breathable back support suit 2 hour collaborative meetings
Shared hot-desking environmentsDurable casters and easy height adjustment suit rotating user groups
Training room seatingSwivel and tilt features support flexible positioning during group training sessions
Cubicle workstationsMid-back height fits standard partition heights without blocking sightlines
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic performance requirements
EN 1335-2:2018Applies to office chair strength, durability and stability performance requirements
EN 1335-3:2020Applies to office chair mechanical test methods for safety verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and durability performance benchmarks
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office furniture dimensional measurement and tolerance requirements
GB/T 3324-2017Applies to general technical requirements for wooden and upholstered office furniture
GB 28007-2011Applies to stability, strength and durability requirements for office chairs
GB/T 10357.3-2013Applies to mechanical performance test methods for office seating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office furniture dimensional measurement and tolerance requirements;
2. GB/T 3324-2017:Applies to general technical requirements for wooden and upholstered office furniture;
3. GB 28007-2011:Applies to stability, strength and durability requirements for office chairs;
4. GB/T 10357.3-2013:Applies to mechanical performance test methods for office seating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MBT-620-MESH-BL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MBT-620-MESH-BL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MBT-620-MESH-BL打开导出工具

页面快速操作

发布采购询价

产品描述

The MBT-620-MESH-BL mid-back mesh ergonomic office task chair presents a streamlined, functional design tailored for extended seated use across commercial and residential settings. Visually, it pairs a taut breathable gray mesh backrest with a padded blue fabric seat, framed by smooth light gray structural components that create a balanced, neutral aesthetic suited to a wide range of interior palettes. Fixed C-shaped loop armrests sit integrated with the back frame, while a five-prong light gray base fitted with black dual-wheel casters completes the cohesive, compact layout, with dimensions sized to align with standard desk and partition configurations. Construction prioritizes durability and seated comfort without excess bulk. The backrest uses tensioned gray polyester mesh set in a fiberglass-reinforced light gray PP frame, molded with a built-in contoured lumbar zone to support natural lower back alignment. The seat features a molded high-density polyurethane foam core supported by a rigid plywood inner panel, upholstered in wear-resistant blue polyester fabric for long-term surface resilience. Structural components include a reinforced nylon five-star base, chromed steel Class 3 pneumatic lift cylinder, and black PU dual-wheel casters, with a lightweight net weight that supports easy repositioning across spaces. Core functional features support flexible, comfortable seated work. A single under-seat lever controls 100mm of vertical pneumatic seat height adjustment, while the full 360-degree swivel rotation allows unobstructed access to surrounding desk surfaces. The rocker tilt mechanism enables 120 degrees of backward recline with an adjustable tension knob, and a dedicated lock secures the chair in an upright position for focused task work. Fixed armrests hold a consistent height above the seat for stable upper body support, and dual-wheel casters deliver smooth, low-friction movement across both hard flooring and carpeted surfaces. This chair fits seamlessly across a diverse range of spaces. It is sized appropriately for open office workstations and cubicle environments, where its mid-back height aligns with standard partition heights without blocking cross-workspace sightlines. Its compact footprint works well in home office study spaces, as its neutral color palette coordinates with typical residential decor, and it performs reliably in conference rooms, shared hot-desking zones, and training rooms where rotating users and flexible positioning are common requirements. For procurement planning, note that each unit ships across two cartons, with an assembly time of 40 minutes per chair. The design supports a maximum recommended user weight of 136 kg, and its durable component ratings make it suitable for high-traffic shared work environments, while bulk shipping metrics are available to support large-scale order planning for office fit-outs or multi-room furnishing projects.
