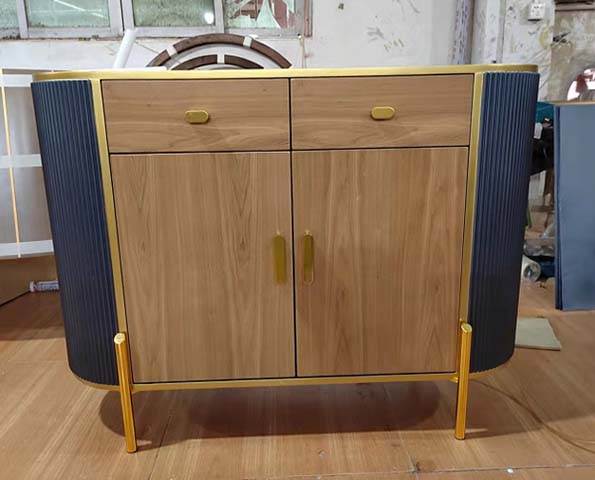

商品供应商Modern Curved Accent Storage Cabinet with 2 Drawers, 2 Doors, Gold Trim and Navy Fluted Side Panels,multi-layer
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1190 x 510 x 810 mm | |
|---|---|---|
| Under-cabinet floor clearance | 180 mm | |
| Upper drawer count | 2 units | |
| Per upper drawer internal dimensions | 530 x 400 x 140 mm | |
| Lower cabinet door count | 2 units | |
| Lower cabinet interior shelf count | 1 unit | |
| Per door width | 530 mm | |
| Navy fluted side panel radius | 100 mm | |
| Leg diameter | 25 mm | |
| Gold trim frame width | 15 mm | |
| Pull handle length | 60 mm | |
| Carcass panel thickness | 18 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Top surface static load capacity | 50 kg | |
|---|---|---|
| Total cabinet net weight | 42 kg | |
| Hinge open-close cycle rating | 50000 cycles | |
| Drawer slide open-close cycle rating | 40000 cycles | |
| Surface scratch resistance rating | 2B | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main carcass core | 18mm MDF/particleboard engineered wood | |
|---|---|---|
| Front drawer/door panels | Light oak wood-grain matte laminate finish | |
| Side end panels | Navy blue vertically fluted textured MDF panels | |
| Front decorative frame | Gold brushed brass-finish steel trim | |
| Support legs | 25mm diameter gold-plated steel cylindrical legs | |
| Drawer/door hardware | Zinc alloy gold-finished pull handles | |
| Edge banding | 1mm thick PVC matching front and panel finishes | |
| Back panel | 3mm thick hardboard | |
| Drawer slides | Cold-rolled steel full-extension side-mount slides | |
| Door hinges | Cold-rolled steel soft-close concealed hinges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Upper drawer operation | Full-extension glide for access to small loose items | |
|---|---|---|
| Lower cabinet door operation | 110-degree swing open with soft-close damper | |
| Interior shelf adjustability | 3-position height adjustment in 32mm increments | |
| Leveling function | Adjustable foot pads integrated into leg bases | |
| Anti-tip safety | 2 wall-mounted anti-tip restraint brackets included | |
| Surface maintenance | Stain-resistant matte finish for wipe-clean care | |
| Storage zoning | Separate top shallow drawers and lower deep cabinet | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
推荐空间 / 目标用户 / 使用方式
| Residential entryway use | Provides storage for keys, mail and entry accessories at accessible standing height | |
|---|---|---|
| Living room accent use | Functions as a decorative display and media accessory storage piece | |
| Dining room sideboard use | Stores table linens, serveware and dining accessories near dining tables | |
| Home office credenza use | Holds office supplies, files and decor adjacent to work desks | |
| Target user group | Residential homeowners and commercial space designers seeking modern luxury storage |
欧洲市场准入与化学品要求
| EN 14749:2016 | Domestic and kitchen storage units and worktops, safety and performance requirements | |
|---|---|---|
| EN 717-1:2004 | Wood-based panels formaldehyde release determination, applicable for material inspection |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emissionAcceptance inspection |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for dimensional and structural inspection; 2. GB 18584-2001:Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emissionAcceptance inspection; 最终交付参数、检测报告和验收标准以双方采购合同为准。
