Modern Light Luxury Sideboard Storage Cabinet Specifications

SB-MOD-1500W

代码:DRSBU7V1
获取供应商报价
2026-08-12 12:00人气: 66
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SB-MOD-1500W

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1500 x 400 x 800 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total storage volume0.36 cbm
Top surface static load capacity50 kg
Recommended number of users6 people
Product net weight65 kg
Drawer slide cycle rating50000 open/close cycles
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Cabinet body carcass18mm E1 grade engineered wood
Door and drawer front panelsTextured brown embossed engineered wood
Decorative trim and hardwareGold-toned brushed metal alloy
Cabinet legsGold-toned square metal tubing
Internal shelves16mm matching engineered wood
Back panel5mm hardboard
Drawer slidesCold-rolled steel with soft-close mechanism
Cabinet side panelsSmooth dark brown engineered wood
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Left double-door storageTwo hinged doors open to reveal single adjustable shelf for large item storage
Right drawer storageThree full-width stacked drawers provide divided storage for small items
Soft-close drawer mechanismDrawers glide on steel slides and close silently without slamming
Adjustable internal shelfLeft cabinet shelf supports 3 height positions at 50mm increments to accommodate varied item heights
Raised floor clearance80mm floor gap allows robot vacuum access for cleaning underneath the unit
Wall anchor compatibilityPre-drilled rear mounting points support anti-tip wall anchoring for safety
Leveling foot adjustmentSmall adjustable feet at base correct uneven floor surfaces up to 10mm
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Dining room sideboardPlaced against dining area wall for tableware, linens and serving piece storage
Entryway console cabinetPositioned in residential entry hall for keys, bags and entryway accessory storage
Living room media consoleUsed under wall-mounted televisions for media device and accessory storage
Residential open-plan space useSuitable for modern light luxury, contemporary and minimalist interior design schemes
Small office breakroom storageUsed in office pantries for dishware, snack and supply storage
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Applicable standard for domestic storage furniture safety requirements
EN 16122:2012Applicable standard for furniture storage strength and durability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable standard for wooden furniture general technical requirements
GB 18580-2017Applicable standard for formaldehyde emission limits for wood-based panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable standard for wooden furniture general technical requirements;
2. GB 18580-2017:Applicable standard for formaldehyde emission limits for wood-based panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SB-MOD-1500W

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SB-MOD-1500W

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SB-MOD-1500W打开导出工具

页面快速操作

发布采购询价

产品描述

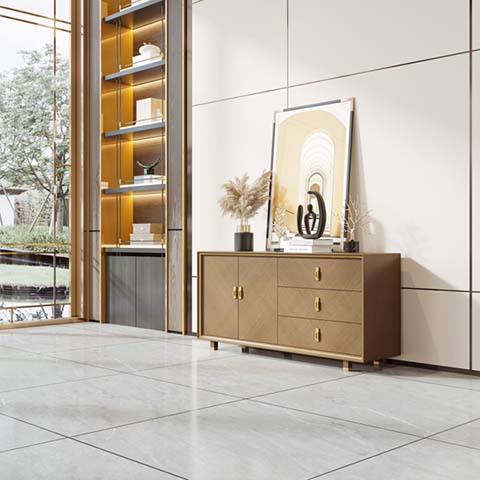

The Modern Light Luxury Sideboard Storage Cabinet, model SB-MOD-1500W from Hongsheng Dining, is a floor-standing enclosed storage unit crafted to align with modern, light luxury, contemporary, and minimalist interior design schemes. Its streamlined rectangular form features smooth dark brown engineered wood side panels, textured brown embossed engineered wood door and drawer fronts, and coordinated gold-toned brushed metal alloy trim, hardware, and square metal tubing legs, creating a refined, cohesive visual profile. The unit stands on a raised base with an 80mm floor gap, complemented by small adjustable leveling feet that correct uneven floor surfaces up to 10mm, while pre-drilled rear mounting points support anti-tip wall anchoring for added safety. Built for long-term durability, the cabinet’s main carcass uses 18mm E1 grade engineered wood, paired with 2mm thick edge banding to protect panel edges from wear. Internal shelves are constructed from 16mm matching engineered wood, the back panel uses 5mm hardboard, and drawers operate on cold-rolled steel soft-close slides rated for 50000 open/close cycles with a 45kg load capacity per pair. The static load capacity of the top surface reaches 50kg, and each shelf supports a 30kg distributed load, with a total storage volume of 0.36 cbm across its layout: the left section features two hinged double doors enclosing a single adjustable shelf with three height positions at 50mm increments to accommodate large items of varying sizes, while the right section houses three full-width stacked drawers for divided small-item storage, all closing silently without slamming. This versatile unit serves multiple spatial needs: it functions as a dining room sideboard against walls to store tableware, linens, and serving pieces for up to 6 users, an entryway console for keys, bags, and entry accessories, a media console under wall-mounted televisions for media devices, a storage solution for residential open-plan spaces, or a breakroom storage unit in small offices for dishware, snacks, and supplies. For procurement, note the unit ships as one set split across cartons, with a packaged gross weight of 100kg per set, total packaging volume of 0.65 cbm, and a reference assembly time of 40 minutes per set, requiring installation appropriate to its floor-standing design.
