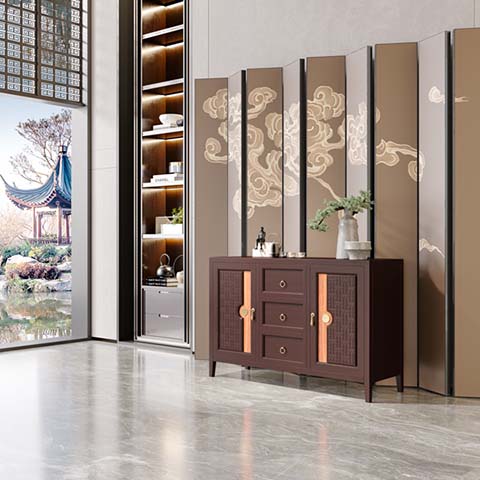

Neo-Chinese Dark Walnut Woven Door Accent Storage Sideboard Specifications

SB-NEO-2D3D-1400

代码:DB45V0V1
获取供应商报价
2026-08-12 11:56人气: 57
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SB-NEO-2D3D-1400

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1400 x 450 x 900 mm
Leg height150 mm
Central drawer column width420 mm
Single hinged door width490 mm
Individual drawer internal height160 mm
Door internal shelf clearance550 mm
Top surface usable thickness25 mm
Back panel thickness16 mm
Woven door panel inset width80 mm
Floor clearance under cabinet120 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Product net weight60 kg
Top surface static load capacity50 kg
Recommended user count6person household
Surface abrasion resistance cycles1000 cycles
Drawer slide cycle rating30000 open/close cycles
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main cabinet frame18mm thick MDF core with dark walnut wood veneer finish
Side door panelsNatural woven rattan inset with matching wood frame
Vertical door accentsBrushed gold-toned metal decorative strips
Pull hardwareCircular brushed gold metal knobs with jade-style inlay
Support legsSolid tapered wood legs stained to match cabinet finish
Drawer runnersCold-rolled steel side-mount full extension slides
Internal shelves16mm thick matching wood veneer fixed shelves
Back panel16mm thick engineered wood back panel
Finish coatingMatte scratch-resistant polyurethane topcoat
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Side door storageTwo outward-hinged doors with fixed internal shelves for large item storage
Central drawer storageThree vertically stacked equal-size drawers for small item organization
Door swing directionEach door opens 110 degrees outward with magnetic catch retention
Drawer travelFull 400mm extension travel with soft-close damping mechanism
Surface useFlat top surface designed for decorative display and serving use
Elevated leg designRaised base enables easy floor cleaning under the cabinet
Installation typeFreestanding assembly requiring wall anchor for anti-tip safety
Dust protectionFully enclosed door and drawer fronts prevent dust accumulation on stored items
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Shipping carton dimensions1500 x 600 x 250 mm
Gross shipping weight67 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Dining room placementPosition against wall as buffet storage for tableware and serving items
Entry foyer placementInstall against entry wall for shoe care, key storage and entryway display
Living room accent usePlace behind sofa or against feature wall for media accessories and display
Target user groupResidential customers preferring Neo-Chinese, oriental or modern classic interior design
Recommended matching piecesPair with matching solid wood dining set, oriental decorative screens and ceramic display ware
Commercial space useSuitable for tea room, private club lounge or boutique hotel corridor storage
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety and performance requirements for domestic kitchen and storage furniture
EN 12521:2015Strength, durability and safety requirements for domestic seating-adjacent storage
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural and dimensionalAcceptance inspection
GB 18584-2001Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification
GB/T 4893.9-2013Surface furniture wear resistance test method, applicable for finish durability validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural and dimensionalAcceptance inspection;
2. GB 18584-2001:Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification;
3. GB/T 4893.9-2013:Surface furniture wear resistance test method, applicable for finish durability validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SB-NEO-2D3D-1400

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SB-NEO-2D3D-1400

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SB-NEO-2D3D-1400打开导出工具

页面快速操作

发布采购询价

产品描述

The Neo-Chinese Dark Walnut Woven Door Accent Storage Sideboard is a freestanding storage piece defined by balanced, culturally rooted visual styling. Its front facade features two outward-facing hinged side doors flanking a central vertical column of three stacked equal-sized drawers, anchored by tapered solid wood legs finished to match the cabinet body. Brushed gold-toned decorative vertical accents run along door edges, paired with circular brushed gold knobs set with jade-style inlay, while natural woven rattan insets set within matching wood frames form the door panels, introducing textural warmth against the deep dark walnut veneer finish. Constructed on an 18mm thick MDF core frame, the piece is clad in dark walnut wood veneer topped with a matte scratch-resistant polyurethane coating. Internal fixed shelves, 16mm thick and matched to the cabinet finish, sit behind each door, while 16mm engineered wood forms the rear panel. Drawers operate on cold-rolled steel side-mount full extension slides, and doors retain closed position via magnetic catches. The structure stands on stained solid wood legs, with all hardware finished in coordinated brushed gold tones. Functional design supports flexible daily use: the hinged doors open 110 degrees outward to reveal shelf space sized for larger items, while the three central drawers accommodate organized storage of smaller belongings. Drawers feature full extension travel with soft-close damping for smooth, quiet operation. The flat, stable top surface supports decorative display and serving use, while the elevated leg base leaves open space beneath the cabinet to simplify routine floor cleaning. The unit requires assembly, and includes provisions for wall anchoring to meet anti-tip safety requirements. This sideboard fits seamlessly in a range of residential interiors aligned with Neo-Chinese, oriental, or modern classic design preferences: it works as a dining room buffet for tableware and serving pieces, an entryway storage unit for entry essentials and display, or a living room accent piece positioned behind a sofa or against a feature wall for media accessories and curated decor. It also suits light commercial settings including tea rooms, private club lounges, and boutique hotel corridors. When planning procurement, note that the unit ships across multiple cartons, requires assembly, and is rated for use in six-person households; specifiers should account for the wall anchor requirement for safe installation, and can coordinate the piece with matching solid wood dining sets, oriental decorative screens, and ceramic display ware to create a cohesive interior scheme.
