| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1750 x 650 x 800 mm | |
|---|---|---|
| Single seat width | 520 mm | |
| Single seat depth | 480 mm | |
| Seat height from floor | 430 mm | |
| Backrest height per seat | 420 mm | |
| Armrest height from seat surface | 220 mm | |
| Leg spread width | 1650 mm | |
| Ground clearance under seat | 280 mm | |
| Armrest width | 50 mm | |
| Frame beam cross-section | 60 x 30 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Total product net weight | 28 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total static load for full unit | 450 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Seat cushion compression recovery | 95% | |
| Floor foot static friction coefficient | 0.6 | |
| Daily occupancy capacity | 200 users | |
| Warranty period for structural frame | 5 years | |
| Warranty period for upholstery and wearing parts | 2 years | |
| Structural frame durability cycle rating | 100000 seat load cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Support frame main beam | 1.5mm thick cold-rolled steel with matte silver powder coating | |
|---|---|---|
| Leg supports | Cast aluminum alloy with brushed silver finish | |
| Armrests | Die-cast aluminum alloy with smooth polished surface treatment | |
| Seat base panels | 1.2mm thick cold-rolled steel perforated support plates | |
| Seat and back cushion cores | 40mm thick high-resilience polyurethane foam, density 45kg/m³ | |
| Seat and back upholstery | 0.8mm thick polyurethane (PU) leather, abrasion resistance 50000 Martindale cycles | |
| Floor contact pads | Non-marking nitrile rubber | |
| Connection hardware | Grade 8.8 zinc-plated steel bolts and brackets | |
| Stitching details | Reinforced polyester thread with 8 stitches per inch seam pitch | |
| Back support inner panel | 1.0mm thick cold-rolled steel backing plate | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Fixed gang seating configuration | Three individually separated seat bays with intermediate armrests, prevents unintended shared seating and delineates personal space for waiting users | |
|---|---|---|
| Fixed upright back support | 105 degree fixed backrest angle, provides upright support without recline mechanism, suitable for high-traffic areas where adjustable parts could be damaged | |
| Non-reclining seat structure | Fixed 5 degree forward seat tilt, reduces forward sliding when seated and supports upright posture for short waiting periods | |
| Surface cleaning access | Smooth non-porous PU upholstery allows wipe-down cleaning with common disinfectants, no fabric seams that trap debris on seat contact surfaces | |
| Floor stability design | Four-point curved leg base with rubber contact pads eliminates rocking on uneven floors, no wall anchoring required for standard installation | |
| Modular connection capability | End frame brackets allow ganging multiple 3-seat units together in continuous rows for large waiting areas, no additional adapters required for straight row installations | |
| No moving adjustment parts | No tilt, swivel, or height adjustment mechanisms, reduces maintenance requirements and vandalism risk in unsupervised public spaces | |
| Lower under-seat clearance | Open space under seats allows full access for brooms, mops and robotic vacuums without moving the bench | |
| Fixed seat tilt structure | 5 degree fixed forward seat tilt, reduces forward sliding when seated and supports neutral upright posture for short waiting periods | |
| Disinfectable surface design | Smooth non-porous PU upholstery allows wipe-down cleaning with 75% alcohol and common quaternary ammonium disinfectants, no deep fabric crevices that trap debris on seat contact surfaces | |
| Modular ganging capability | End frame pre-drilled brackets allow connecting multiple 3-seat units together in continuous straight rows for large waiting areas, no additional adapter parts required | |
| Maintenance-free fixed construction | No tilt, swivel, height adjustment or moving mechanical parts, reduces routine maintenance requirements and vandalism risk in unsupervised public spaces |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping packages | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1780 x 680 x 420 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume per unit | 0.51 CBM | |
| Required assembly time | 30 minutes | |
| 20ft GP container loading capacity | 52 units | |
| 40ft HQ container loading capacity | 126 units | |
| Packaging materials | 5-layer corrugated carton with EPS foam corner protection, plastic shrink wrap for cushion sets, sealed polybag for hardware and instructions | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Hospital clinic waiting areas | Suitable for patient and visitor waiting zones, with disinfectable PU upholstery that supports regular sanitization between users, durable frame withstands continuous daily use | |
|---|---|---|
| Public transport terminals | Ideal for airport, railway and bus station waiting concourses, fixed heavy-duty structure resists heavy use and impact, intermediate armrests organize passenger seating | |
| Government service hall waiting zones | Appropriate for civic service, bank and public administrative office waiting areas, teal neutral finish fits formal public interior schemes, low maintenance design reduces operational upkeep | |
| Corporate reception and break areas | Can be deployed in office reception lobbies and employee break zones, comfortable padded cushions provide short-term seating for visitors and staff, clean simple design complements modern office interiors | |
| Educational institution common areas | Suitable for school administration lobbies, library study zones and student service waiting areas, sturdy construction resists heavy student use, rounded edge design reduces injury risk | |
| Indoor installation only | Designed for fully sheltered indoor use, powder coated frame and PU upholstery are not rated for long-term outdoor exposure to rain or direct UV radiation | |
| Recommended complementary configuration | Pair with matching single-seat and corner units to create custom waiting zone layouts, install with spaced 1200mm access aisles between rows for wheelchair and pedestrian traffic | |
| Recommended layout configuration | Pair with matching single-seat units and corner connectors to create custom waiting zone layouts, install rows with 1200mm clear access aisles between seat fronts for wheelchair access and pedestrian traffic |
欧洲市场准入与化学品要求
| EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | Applicable European standard for structural safety, stability and durability of commercial public seating excluding office work chairs | |
|---|---|---|
| EN 1022:2018 Furniture - Seating - Determination of stability | Reference test method for verifying stability of fixed multi-seat benches to prevent tipping when users apply load to seat edges | |
| EN 14465:2003 Textiles - Upholstery fabrics - Specification and test methods | Applicable performance standard for abrasion resistance, color fastness and seam strength of upholstery materials used on public seating |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 General technical requirements for furniture | Applicable standard for dimensional tolerances, surface finish quality and structural stability requirements for fixed metal-framed seating used in general public spaces | |
|---|---|---|
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Recommended test standard for seat static load, backrest load and leg strength verification for commercial public seating products | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for formaldehyde and harmful substance limits for any composite panel components included in seat backing structures | |
| GB/T 24821-2009 Public seating for airport terminals | Reference performance standard for high-traffic public seating durability, load requirements and surface finish performance, suitable for hospital, station and terminal applications |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 General technical requirements for furniture：Applicable standard for dimensional tolerances, surface finish quality and structural stability requirements for fixed metal-framed seating used in general public spaces； 2. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools：Recommended test standard for seat static load, backrest load and leg strength verification for commercial public seating products； 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture：Applicable for formaldehyde and harmful substance limits for any composite panel components included in seat backing structures； 4. GB/T 24821-2009 Public seating for airport terminals：Reference performance standard for high-traffic public seating durability, load requirements and surface finish performance, suitable for hospital, station and terminal applications； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

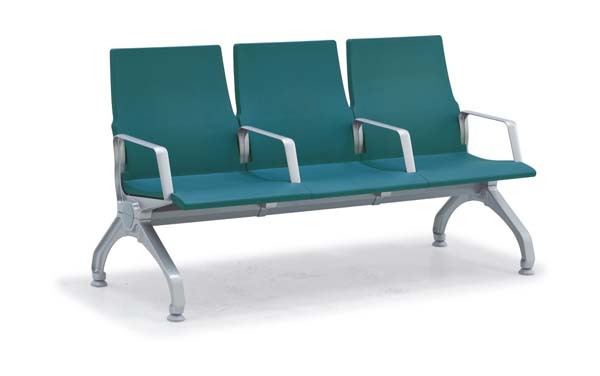

打开导出工具This 3-seat upholstered public wting bench features a streamlined, functional gang chr design finished in a smooth teal polyurethane upholstery, pred with polished silver aluminum armrests and a matte silver powder-coated steel frame. Its layout divides seating into three distinct individual bays separated by intermediate armrests to delineate personal space, with curved splayed aluminum legs creating a wide, stable floor footprint and rounded edges on all armrests to reduce injury risk. The open under-seat gap delivers ample clearance for unobstructed floor cleaning without moving the unit. The bench is built for high-traffic durability: its mn support structure uses thick cold-rolled steel for the mn beam, seat support plates and backrest inner panels, held together with commercial-grade zinc-plated steel hardware to resist loosening from repeated use. Die-cast aluminum armrests and cast aluminum leg supports deliver rigid support without excess weight, finished to resist scuffs and corrosion. Seat and back cushions use high-resilience polyurethane foam with a 95% compression recovery rate to prevent permanent indentation, wrapped in abrasion-resistant, non-porous PU leather that resists water and stns. Non-marking nitrile rubber foot pads protect hard flooring, dampen movement noise, and prevent sliding on smooth surfaces. Reinforced polyester stitching on upholstery seams prevents splitting under regular load. Designed for fixed, low-mntenance use, the bench has no moving adjustment parts to reduce vandalism risk and upkeep requirements. It features a fixed upright backrest angle and subtle forward seat tilt to support neutral upright posture during short wting periods, with dedicated lumbar support for comfortable short-term seating. The smooth, non-porous upholstery can be fully disinfected with common cleaning solutions including 75% alcohol and quaternary ammonium disinfectants, with no deep crevices to trap debris. Pre-drilled end brackets allow multiple units to be connected in continuous strght rows without additional adapters for flexible large-space layout, and no wall anchoring is required for standard installation. This bench is suited exclusively for fully sheltered indoor spaces, including hospital clinic wting areas, rport, rlway and bus terminal concourses, government service and bank wting halls, corporate reception lobbies, employee break areas, and school administration or library common areas. When planning layouts, leave 1200mm clear access sles between rows to support pedestrian and wheelchr traffic, and pr the bench with matching single-seat and corner units to build custom wting zone configurations. For procurement, note the unit ships in knock-down packaging requiring two-person assembly, with a 5-year warranty for the structural metal frame and 2-year warranty for upholstery and wearing parts. Order volumes can be planned around standard 20ft and 40ft contner loading capacities for large-scale projects, and avoid deployment in outdoor or exposed areas as the materials are not rated for long-term rn or UV exposure. The static load rating supports continuous high dly user throughput, making it appropriate for spaces with frequent short-stay visitor traffic.
