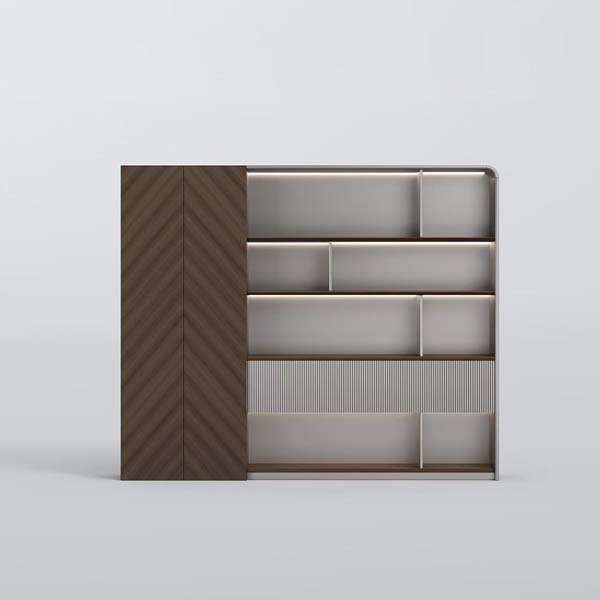

Asymmetrical Office Storage Bookshelf Cabinet with LED Lit Shelves and Fluted Glass Panel Specifications

OF-BK-2120-ASY-LED

代码:6KUSE8V1
获取供应商报价
2026-09-02 16:50人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OF-BK-2120-ASY-LED

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2390 x 430 x 2120 mm
left closed storage section width800 mm
right open shelving section width1590 mm
internal closed storage depth400 mm
open shelf vertical clearance between tiers330 mm
fluted glass panel tier height330 mm
open shelf front edge thickness25 mm
solid door panel thickness18 mm
back panel thickness9 mm
rounded top corner radius50 mm
base plinth height50 mm
fluted glass panel thickness8 mm
Carcass Panel Thickness25 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

total unit static load capacity57 kg
laminate surface abrasion resistance2000 cycles
fluted glass panel impact resistanceTempered grade, 5x impact strength vs annealed glass
LED strip rated operational lifespan30000 hours
hinge cycle rating for left doors80000 open/close cycles
edge band peel strength1.5 N/mm
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

main carcassE1 grade medium density fiberboard, 18mm thick, 0.7g/cm³ density
left door panelsHerringbone pattern wood veneer over MDF substrate, matte clear seal finish
open shelf interiorsMatte light grey laminate finish, scratch and stain resistant surface
middle fluted panelSemi-transparent vertically ribbed (fluted) tempered glass
under-shelf lightingRecessed linear LED strip lights, warm white 4000K color temperature
shelf dividers18mm thick matching laminate MDF, dividing right section into asymmetric bays
edge banding1mm thick PVC edge banding matching door and shelf finish
base plinthMatching dark wood veneer MDF, full width floor contact support
door hingesConcealed soft-close steel hinges, nickel plated finish
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

left section storageTwo full-height hinged solid doors enclosing adjustable shelving for concealed document storage
open shelf displayFive tiered asymmetric open shelves split into two bays for displayed items and reference materials
integrated lightingRecessed under-shelf LED strips illuminate each open shelf tier, hardwired with wall switch control
semi-concealed storage tierMiddle tier fluted glass panel hides stored items while allowing light transmission across both bays
anti-tip safetyTwo included wall anchor connectors secure unit to wall to prevent forward tipping
adjustable shelvingClosed cabinet shelves support 3 height positions with 50mm incremental adjustment
soft-close doorsConcealed hinges provide 110 degree door opening with automatic soft-close damping in final 15 degrees of travel
cable managementRear access cutouts on open shelves allow concealed power routing for LED lighting and displayed devices
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive office backdropPlaced behind executive desks for combined open display of awards and concealed file storage
open office break area storageUsed for displaying reading materials, decor and storing office supplies in shared work zones
reception area displayPositioned in lobby areas to display company credentials, decor and visitor information
private study home officeInstalled in home workspaces for book storage and personal item display
meeting room ancillary storagePlaced along meeting room walls to store reference materials, presentation supplies and refreshments
recommended complementary furniturePaired with light wood executive desks and ergonomic office seating for coordinated office interiors
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety and strength requirements for domestic and office storage furniture and kitchen worktops
EN 12521:2015Furniture strength, durability and safety requirements for non-domestic storage units
EN 14073-2:2004Office storage furniture, safety and strength requirements for filing and display cabinets
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.9
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to dimensional and structural quality checks
GB 18580-2017Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ for interior use
GB/T 4893.8-2013Surface abrasion resistance test method for furniture finishes
GB/T 10357.5-2011Strength and durability test for storage furniture shelving and cabinet structures
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to dimensional and structural quality checks;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ for interior use;
3. GB/T 4893.8-2013:Surface abrasion resistance test method for furniture finishes;
4. GB/T 10357.5-2011:Strength and durability test for storage furniture shelving and cabinet structures;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OF-BK-2120-ASY-LED

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OF-BK-2120-ASY-LED

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OF-BK-2120-ASY-LED打开导出工具

页面快速操作

发布采购询价

产品描述

This floor-standing asymmetrical office storage bookshelf cabinet delivers a balanced blend of concealed storage and open display, defined by its modern, mixed-material silhouette with rounded corner details. Its layout splits into a narrower left closed storage section and a wider right open shelving area, with a semi-transparent fluted glass panel spanning the middle tier that diffuses light while partially obscuring stored items. The unit rests on a full-width dark wood veneer plinth that sits flush with the floor for a streamlined look, with consistent finish matching across door panels, edge banding, and structural components. The body is constructed from E1 grade medium density fiberboard, with left section doors finished in herringbone pattern wood veneer sealed with a matte clear coat. Open shelf interiors feature a matte light grey scratch- and stain-resistant laminate surface, while the middle panel uses vertically ribbed tempered glass with higher impact strength than standard annealed glass. Recessed warm white linear LED strips are integrated under each open shelf, activated via a hardwired wall switch to illuminate displayed items. All exposed edges are finished with color-matched PVC edge banding, and left section doors operate on concealed nickel-plated steel soft-close hinges. Functional design supports flexible organizational needs: the left closed cabinet holds adjustable shelves that can be set to multiple height positions for concealed document storage, while the right section’s five tiered asymmetric open bays accommodate displayed items and frequently accessed reference materials. The fluted glass middle tier adds semi-concealed storage that lets light pass across both open bays, and included wall anchor connectors secure the unit to walls to prevent forward tipping. This cabinet suits a range of commercial and residential spaces, including executive offices as a desk backdrop for awards and file storage, open office break areas for shared supplies and reading materials, reception lobbies for company credentials and visitor information, private home studies for books and personal items, and meeting rooms for reference materials and presentation supplies. It pairs seamlessly with light wood executive desks and ergonomic office seating for coordinated interiors. For procurement planning, note that the unit is delivered unbranded, requires on-site assembly, ships across multiple cartons, and supports static weight loads aligned with standard office storage use. Buyers should account for required wall anchor installation to meet safety guidelines, and select placement that allows access to the hardwired wall switch for integrated lighting control.
