Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3300 × 2700 × 900 mm | |
|---|---|---|
| Overall set footprint (U-shaped arrangement) | 3300 x 2700 x 900 mm | |
| 3-seat sofa dimensions | 1800 x 760 x 900 mm | |
| Single armchair dimensions | 940 x 760 x 900 mm | |
| Oval coffee table dimensions | 1200 x 610 x 450 mm | |
| TV media console dimensions | 2000 x 400 x 550 mm | |
| Square side end table dimensions | 600 x 600 x 450 mm | |
| Seating seat height | 450 mm | |
| Seat frame wood thickness | 25 mm | |
| Backrest slat width | 60 mm | |
| TV console open shelf clearance | 180 mm | |
| Coffee table lower apron clearance | 120 mm | |
| Side table lower shelf clearance | 220 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight (reference) | 260 kg | |
|---|---|---|
| 3-seat sofa static load capacity | 450 kg | |
| Standard residential service life | 10 years | |
| Surface scratch resistance (reference) | 1000 cycles | |
| Available color options | 2 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seating frame and slats | Kiln-dried solid oak/rubber wood, 25mm thick, mortise-and-tenon joinery | |
|---|---|---|
| Table and console tops | 18mm thick solid wood panel, rounded edge profiling | |
| Table and seating legs | Solid wood tapered/splayed legs, 50mm cross-section at top | |
| Surface finish | Eco-friendly water-based matte clear coat, zero heavy metal content | |
| Optional seat cushions (if fitted) | 35kg/m³ high-density resilience foam, removable linen fabric covers | |
| Storage drawer components | 12mm thick solid wood drawer fronts, hidden soft-close undermount slides | |
| Joinery hardware | Zinc-plated steel bolt connectors, wood dowel reinforcement | |
| Foot pads | Non-slip polyethylene floor protection pads, 5mm thick | |
| Lower shelf panels (tables/console) | 15mm thick solid wood panels, fixed to leg supports | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

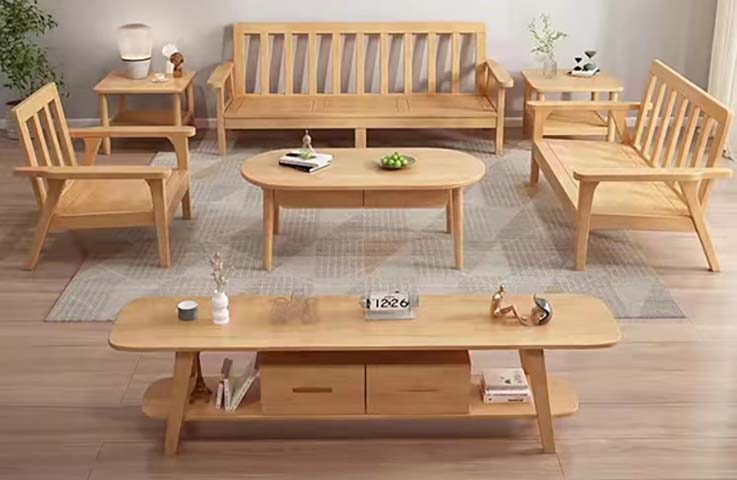

| Seating configuration | U-shaped conversational layout, 3-seat sofa + 2 single armchairs | |
|---|---|---|
| TV console storage | 2 central handle-less soft-close drawers, full-length lower open shelf | |
| Coffee table storage | 2 hidden under-top drawers, shallow lower apron storage | |
| Side table storage | Open lower shelf on each square end table | |
| Assembly design | Knock-down flat-pack construction, included hex key and hardware | |
| TV console cable management | Rear pre-cut cable routing cutouts | |
| Optional cushion compatibility | Fits custom tie-on fabric seat cushions | |
| Floor protection | Non-marking pads on all leg bases | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small to medium residential living rooms | Fits 25sqm open-plan or separate living spaces, U-shaped layout | |
|---|---|---|
| Nordic/Japanese minimalist interior schemes | Light natural wood finish matches neutral, warm-toned residential decor | |
| Family daily use and casual guest hosting | Durable solid wood construction supports regular household traffic | |
| Rental property and apartment furnishing | Neutral timeless design, easy assembly and long service life | |
| Compact home open-plan living areas | Scaled appropriately for smaller urban apartment layouts | |
| Combined living and dining open spaces | Low profile does not block sight lines across open floor plans |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic seating | |
|---|---|---|
| EN 15372:2016 | Furniture - Strength, durability and safety for domestic tables | |
| EN 71-3:2019 | Safety of toys - Migration of certain elements, applies to finish safety for residential use |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to all solid wood components | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture | |
| GB/T 4893.8-2013 | Test of surface coatings of furniture - determination of abrasion resistance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to all solid wood components; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture; 3. GB/T 4893.8-2013: Test of surface coatings of furniture - determination of abrasion resistance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
