Name: Two-Tone Light Oak and White TV Media Console with Glass Doors and Drawers
Brand: Zhenxi Muye
SKU: 4HBQ45

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 400 × 450 mm
Leg height	150 mm
Top panel thickness	25 mm
Carcass side panel thickness	18 mm
Drawer internal dimensions	380 x 340 x 120 mm per drawer
Glass door compartment width	380 mm per door bay
Internal shelf depth	340 mm
Floor clearance under unit	130 mm
Knob diameter	30 mm
Glass panel thickness	5 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static top load capacity	70 kg
Maximum supported TV size	75 inches
Drawer slide cycle rating	50000 open/close cycles
Door hinge cycle rating	80000 open/close cycles
Net product weight	42 kg
Surface abrasion resistance	1000 revolutions
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Support legs	Solid rubberwood, tapered cylindrical form, natural clear lacquer finish
Top surface and outer frame	Oak veneer over MDF core, semi-matte natural lacquer finish
Drawer and door outer fronts	MDF substrate, matte white polyurethane paint finish
Central door panels	5mm thick clear tempered glass, set in white painted MDF frames
Hardware knobs	Zinc alloy with brass gold plating, round pull design
Drawer slides	Side-mounted cold-rolled steel, soft-close ball bearing design
Door hinges	Concealed steel cup hinges, soft-close damping feature
Internal shelves	15mm thick engineered wood, white melamine finish
Back panel	3mm thick hardboard, pre-cut cable openings
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drawer storage	Four full-extension soft-close drawers, two stacked at each end
Glass cabinet storage	Two central hinged glass doors enclosing two fixed internal shelves
Cable management	Two 60mm diameter rear cable cutouts per glass compartment
Anti-tip safety	Two wall anchor straps included for secure mounting
Soft-close damping	All drawers and doors close silently without slamming
Surface use	Flat seamless top surface supports TV, decor, and media devices
Ventilation design	5mm rear gap between back panel and shelves
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room placement	Positioned against wall below wall-mounted or stand-mounted TV
Residential use case	Designed for apartment and family home living room layouts
Storage function use	Stores AV equipment, media collections, remote controls, and small living room items
Matching interior styles	Fits Scandinavian, modern minimalist, and light natural wood interiors
Combined set compatibility	Pairs with matching coffee tables, side tables, and solid wood sofa sets from the same product line
Cleaning access	130mm floor clearance allows robot vacuum and regular broom access under the unit

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage furniture safety requirements
EN 12521:2015	Furniture strength, durability and safety for domestic seating storage
EN 13722:2004	Furniture surface test for resistance to cold liquids

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB 18584-2001	Limit of harmful substances in wooden furniture
GB/T 4897.3-2003	Particleboard for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB 18584-2001: Limit of harmful substances in wooden furniture;
3. GB/T 4897.3-2003: Particleboard for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-OAK-WHT-1800-4D2G

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-OAK-WHT-1800-4D2G

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-OAK-WHT-1800-4D2GOpen Export Tool

Quick Actions

Post an RFQ

Product Description

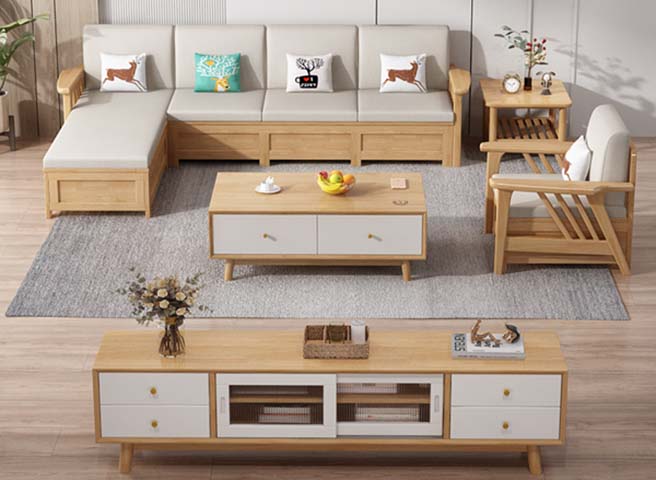

The Two-Tone Light Oak and White TV Media Console from Zhenxi Muye, model TVC-OAK-WHT-1800D2G, is a low-profile Scandinavian-style public furniture piece tailored for organized media and living space storage. It features a streamlined rectangular layout defined by tapered cylindrical legs, a seamless flat top surface, and balanced visual contrast between warm light oak wood grain surfaces and crisp matte white storage fronts, with clear glass central door panels that add light, open visual appeal without disrupting the cohesive, uncluttered silhouette.
Constructed for durable, long-term residential use, the unit’s support legs are solid rubberwood finished with natural clear lacquer, while the top surface and outer frame use oak veneer over an MDF core with a semi-matte natural lacquer coating. Drawer and door outer fronts sit on an MDF substrate coated in matte white polyurethane paint, with central door panels made of 5mm thick clear tempered glass set in matching white painted MDF frames. Round zinc alloy knobs with brass gold plating add subtle refined detail, while side-mounted cold-rolled steel soft-close ball bearing drawer slides, concealed steel cup soft-close hinges, white melamine finished engineered wood internal shelves, and a hardboard back panel with pre-cut cable openings complete the sturdy build. The hardware is rated for extensive repeated use, with drawers tested for 50000 open/close cycles and hinges for 80000 open/close cycles, and the top surface supports a total static load of 70 kg to accommodate televisions up to 75 inches alongside decor and media devices.
Functional design elements include four full-extension soft-close drawers positioned two stacked at each end for small item storage, two central hinged glass doors enclosing two fixed shelves with a 30 kg per shelf distributed load rating for AV equipment and media collections, dual 60mm rear cable cutouts per glass compartment paired with a 5mm rear ventilation gap between the back panel and shelves, included wall anchor straps for anti-tip safety, and 130mm of floor clearance to enable easy cleaning access for robot vacuums and standard brooms. All moving components operate with soft-close damping to eliminate slamming during daily use.
This console is ideally suited for apartment and family home living rooms, placed against a wall below wall-mounted or stand-mounted televisions, and complements Scandinavian, modern minimalist, and light natural wood interior schemes. It coordinates seamlessly with matching coffee tables, side tables, and solid wood sofa sets from the same product line for a cohesive furnished look. For procurement, note that each unit ships split across multiple cartons with a total packaged gross weight of 100 kg, requires 40 minutes of on-site assembly, and should be specified to align with existing room layout dimensions and furnishing finish palettes.

Two-Tone Light Oak and White TV Media Console with Glass Doors and Drawers Specifications
