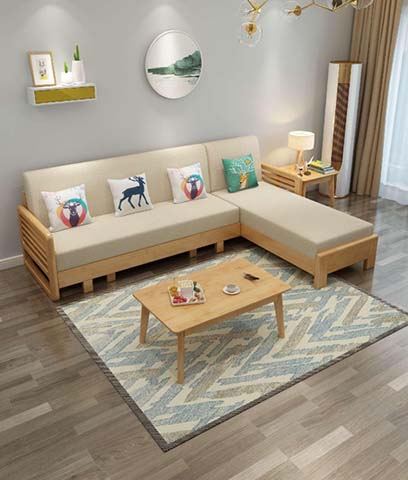

Product supplierL-Shaped Solid Wood Frame Convertible Sofa Bed, Solid pine wood, 30mm thick, sanded natural finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2600 × 1800 × 850 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 95 kg | |
|---|---|---|
| Total static seating load capacity | 450 kg | |
| Recommended maximum user count | 4 people | |
| Seat foam compression density | 35 kg/m³ | |
| Backrest foam compression density | 25 kg/m³ | |
| Fabric Martindale abrasion resistance | 20000 cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Primary load-bearing frame | Solid pine wood, 30mm thick, sanded natural finish | |
|---|---|---|
| Side armrest panels | Horizontal slatted solid pine, spaced ventilation gaps | |
| Upholstery fabric | Linen-blend woven fabric, matte beige finish, removable covers | |
| Seat core padding | High-resilience polyurethane foam, 120mm thick, polyester fiber wrap | |
| Backrest padding | Soft polyurethane foam, 80mm thick, with non-woven fabric lining | |
| Support legs | Solid rubberwood, square profile, natural clear coat finish | |
| Support frame slats (bed mode) | 15mm thick pine slats, spaced 80mm apart | |
| Hardware connectors | Zinc-plated steel bolts and cam locks, 8mm diameter | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Convertible bed mechanism | Pull-out seat frame, converts to 1900x1500mm flat sleeping surface | |
|---|---|---|
| Backrest angle adjustment | 3-position tilt lock, ranges from 100 degrees (upright) to 180 degrees (flat) | |
| Cushion configuration | 4 matching decorative throw pillows included, removable covers | |
| Under-seat support design | Individual block foot supports, evenly distributed along frame | |
| Upholstery maintenance | Zippered removable seat and back covers, machine washable at low temperature | |
| Modular assembly design | Two-section knockdown construction (main seat + chaise), reversible chaise orientation | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Flat-packed shipping carton dimensions | 1900 x 900 x 450 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small apartment living room | Suits 100sqm residential units, provides dual seating and guest sleeping function | |
|---|---|---|
| Studio multi-function space | Saves space by combining sofa and bed for single-occupancy living units | |
| Rental property furnishing | Durable solid wood and removable covers for high-turnover residential rentals | |
| Casual lounge area | Works for home casual seating paired with matching wood coffee table | |
| Teenager bedroom lounge zone | Provides comfortable seating for 3teens with easy care fabric surfaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic furniture safety standard | EN 12520:2015 | |
|---|---|---|
| Upholstered furniture flammability | EN 1021:2014 | |
| Wood furniture formaldehyde emission | EN 13986:2004+A1:2015 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Structural safety standard | GB/T 3324 | |
|---|---|---|
| Upholstery furniture safety | GB/T 28007 | |
| Formaldehyde emission limit | GB 18584 | |
| Fabric color fastness | GB/T 3920 |
Standardized tender description text
This product must meet the following technical requirements: 1. Structural safety standard: GB/T 3324; 2. Upholstery furniture safety: GB/T 28007; 3. Formaldehyde emission limit: GB 18584; 4. Fabric color fastness: GB/T 3920; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
