Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 450 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop distributed static load | 50 kg | |
|---|---|---|
| Single drawer static load capacity | 10 kg | |
| Product net weight | 28 kg | |
| Recommended number of users | 4 | |
| Finish abrasion resistance | Class 2 for residential use | |
| Limited warranty period | 1 year | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop panel | Solid light oak/rubberwood with natural matte clear finish | |
|---|---|---|
| Drawer fronts | Solid wood matching tabletop tone with routed pull recesses | |
| Storage frame body | Solid wood frame with matching wood side/back panels | |
| Tapered support legs | Solid hardwood tapered legs with floor glides | |
| Drawer slides | Side-mount cold-rolled steel silent glides | |
| Joinery connectors | Zinc-plated steel KD cam lock screws and wood dowels | |
| Surface finish | Water-based low-VOC clear matte wood lacquer | |
| Open shelf panels | Fixed solid wood panels matching tabletop material | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central storage drawers | Two soft-closing drawers operating on 3/4 extension steel slides | |
|---|---|---|
| Side open shelves | Two fixed open shelves on either side of drawers for frequently accessed items | |
| Floor leveling | Hard plastic non-slip glides on each leg for uneven floor adjustment | |
| Knock-down assembly | Flat-packed with included hex key hardware for home assembly | |
| Tabletop surface function | Flat, smooth, stain-resistant surface for placing drinks, decor and reading materials | |
| Drawer stop mechanism | Integrated drawer stops to prevent full accidental pull-out | |
| Edge safety design | Rounded smooth edges on all exposed wood components | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

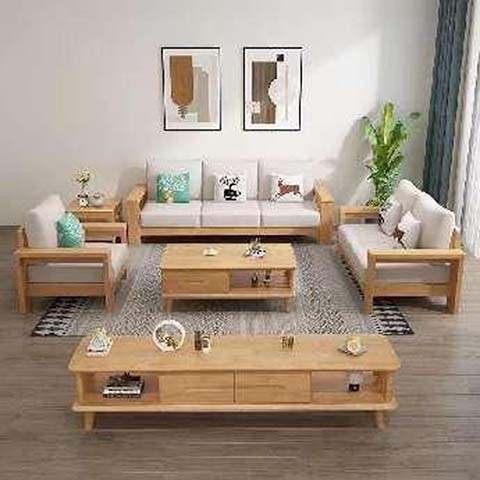

| Living room seating area | Centrally placed facing a 3-seat sofa and armchairs for lounge access | |
|---|---|---|
| Small to medium apartment spaces | 1200mm width fits 25sqm living rooms without crowding walkways | |
| Matching light wood furniture sets | Coordinates with matching solid wood sofas and side tables for a unified natural aesthetic | |
| Daily household storage use | Stores remote controls, coasters, magazines and small living room essentials |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Residential furniture strength, durability and safety requirements for tables, applicable for structural testing | |
|---|---|---|
| EN 71-3:2019 | Migration of certain elements safety standard, applicable if used in households with young children | |
| EN 13722:2004 | Furniture test methods for storage units, applicable for drawer and shelf load verification |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural quality checks | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances in wooden furniture, applicable for formaldehyde testing | |
| GB/T 4893.8-2013 | Furniture surface test for abrasion resistance, applicable for finish durability verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality checks; 2. GB 18584-2001: Indoor decoration material limit of harmful substances in wooden furniture, applicable for formaldehyde testing; 3. GB/T 4893.8-2013: Furniture surface test for abrasion resistance, applicable for finish durability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
