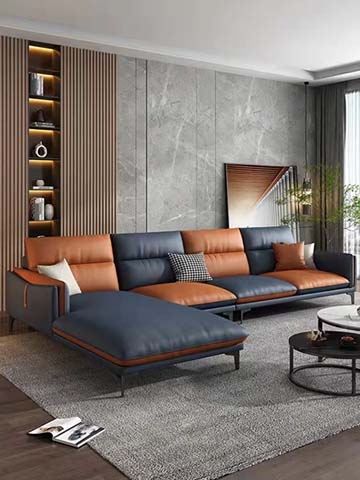

Product supplierModern Left-Facing L-Shaped Sectional Sofa with Two-Tone Upholstery, Kiln-dried solid hardwood frame, 30mm section thickness
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2794 × 2007 × 914 mm | |
|---|---|---|
| Seat height from floor | 432 mm | |
| Seat cushion depth (main seating) | 635 mm | |
| Chaise lounge depth | 1778 mm | |
| Backrest total height above seat | 482 mm | |
| Armrest width | 127 mm | |
| Armrest height from floor | 610 mm | |
| Leg height (floor to seat base) | 203 mm | |
| Cushion thickness (seat) | 152 mm | |
| Minimum required entry door width | 1372 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total sofa net weight | 113 kg | |
|---|---|---|
| Overall static weight capacity | 544 kg | |
| Recommended seating capacity | 4 people | |
| Seat foam density | 40 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Per-leg static load rating | 136 kg | |
| Standard manufacturer warranty period | 5 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal load-bearing frame | Kiln-dried solid hardwood frame, 30mm section thickness | |
|---|---|---|
| Seat support system | 3.8mm diameter sinuous steel springs with polypropylene webbing | |
| Cushion core fill | High-density polyurethane foam with 20mm top soft foam layer | |
| Seat and back upholstery | Semi-aniline dyed leather look, 1.2mm thickness, two-tone navy/cognac | |
| Support legs | 9.5mm solid cold-rolled steel, matte black powder-coated finish | |
| Throw pillow covers | Mixed woven fabric and faux leather, removable zippered closures | |
| Armrest construction | Padded upholstery over hardwood frame, edge welt matching cognac trim | |
| Seam construction | Reinforced stitched seams, 8 stitches per 25mm seam length | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Configuration layout | Fixed left-hand facing chaise with three-seat main body forming L shape | |
|---|---|---|
| Cushion design | Loose, reversible seat and back cushions for rotated wear distribution | |
| Assembly requirement | Leg attachment required, all hardware and tools included in packaging | |
| Floor protection | Non-marking plastic glides fitted to leg bases to prevent floor scratching | |
| Modular connection | Heavy-duty metal bracket connectors secure chaise to main sofa section | |
| Cleaning access | Removable cushion covers allow spot cleaning of upholstery surfaces | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 2845 x 1067 x 660 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary use space | Residential open-plan living rooms as main multi-person seating piece | |
|---|---|---|
| Secondary use space | Executive office lounge areas or boutique hotel reception zones | |
| Recommended supporting furniture | Low-profile round coffee tables, short-pile area rugs, modular media consoles | |
| Target user group | Households of 5people seeking stylish, durable casual seating | |
| Design suitability | Modern, industrial, and minimalist interior design schemes | |
| Placement requirement | Position against wall or in open room, minimum 900mm clearance in front of seats |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Domestic furniture seating strength, durability and safety requirements | |
|---|---|---|
| EN 1022:2018 | Domestic furniture seating determination of stability | |
| EN 13759:2008 | Domestic furniture seating test methods for leg strength |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal hardwood frame | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances for wooden furniture, applicable for formaldehyde control | |
| GB/T 16799-2008 | Leather for furniture, applicable to upholstery material performance requirements | |
| GB/T 19001-2016 | Quality management systems, applicable to production process control |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal hardwood frame; 2. GB 18584-2001: Limit of harmful substances for wooden furniture, applicable for formaldehyde control; 3. GB/T 16799-2008: Leather for furniture, applicable to upholstery material performance requirements; 4. GB/T 19001-2016: Quality management systems, applicable to production process control; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
