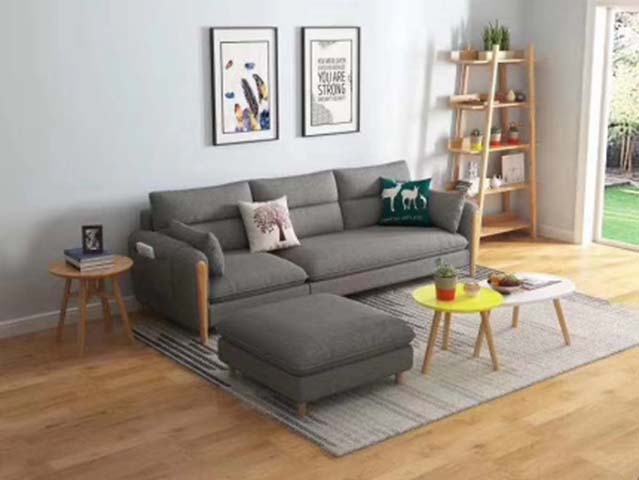

Product supplierGrey Woven Fabric 3-Seater Sectional Sofa with Matching Ottoman and Light Wood Accents, 100% polyester matte grey woven fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2580 × 1850 × 910 mm | |
|---|---|---|
| Overall sofa dimensions | 2580 x 1850 x 910 mm | |
| Seat height from floor | 450 mm | |
| Seat depth (main seating area) | 650 mm | |
| Seat cushion thickness | 250 mm | |
| Backrest total height | 480 mm | |
| Armrest height from floor | 610 mm | |
| Armrest width | 120 mm | |
| Leg height | 120 mm | |
| Matching ottoman dimensions | 1050 x 800 x 480 mm | |
| Ottoman seat cushion thickness | 200 mm | |
| Knee clearance under sofa front rail | 120 mm | |
| Chaise seat width (left section) | 800 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total evenly distributed weight capacity | 680 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Back cushion fill density | 30 kg/m³ | |
| Fabric Martindale abrasion resistance | 20000 cycles | |
| Net weight (full sofa + ottoman set) | 120 kg | |
| Seam stitch pitch | 8 stitches per inch | |
| Cushion loft recovery time (flat-pack) | 48 hours | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 100% polyester matte grey woven fabric | |
|---|---|---|
| Internal frame | Solid pine wood with reinforced corner blocking | |
| Seat support system | 8-gauge sinuous steel springs with polypropylene webbing | |
| Seat cushion fill | High-density polyurethane foam wrapped in 20mm polyester fiber | |
| Back cushion fill | Blown polyester fiber wrap over foam core | |
| Arm structural trim | Light natural-finish solid rubber wood | |
| Support legs | Tapered solid rubber wood with natural clear finish | |
| Cushion covers | Removable zippered woven fabric covers | |
| USB port panel | ABS plastic integrated charging panel on left arm | |
| Decorative throw pillows | Woven polyester covers with polyfiber fill | |
| Ottoman internal frame | Solid pine wood frame matching sofa construction | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Built-in USB charging port | 5V/2A USB-A port mounted on left outer arm for device charging | |
|---|---|---|
| Removable seat cushions | Unzippable cushion covers for spot cleaning or replacement | |
| Free-positioning ottoman | Unattached rectangular ottoman usable as footrest or extra seating | |
| Stationary fixed seating | No recline or motion mechanisms, fixed lounge positioning | |
| Segmented back support | Three independent padded back sections for targeted lumbar support | |
| Padded wide armrests | Fully upholstered arm tops with wood side trim for resting arms | |
| Floor protection glides | Plastic floor glides fitted to leg bases to prevent hardwood scratching | |
| Included accent pillows | Two decorative throw pillows included as standard matching accessories | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small to medium living rooms | Fits 2580mm width in apartments or open-plan residential lounge spaces | |
|---|---|---|
| Family and guest seating | Accommodates 3 adults comfortably with additional ottoman overflow seating | |
| Nordic/modern minimalist interiors | Light wood accents and grey fabric coordinate with Scandinavian decor schemes | |
| Home lounge and media rooms | Low-profile deep cushion design supports extended seated relaxation | |
| Small apartment open-plan spaces | Free-positioning ottoman allows flexible layout adjustment for limited spaces | |
| Home office casual reception areas | Neutral professional appearance suitable for informal guest waiting zones |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable for residential furniture seating strength, durability and stability | |
|---|---|---|
| EN 1021-1:2014 | Applicable for upholstered furniture cigarette ignition resistance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture frames | |
|---|---|---|
| GB 18584-2001 | Applicable for limit of harmful substances in wooden furniture materials | |
| GB/T 1952.1-2012 | Applicable for upholstered sofa durability and structural performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture frames; 2. GB 18584-2001: Applicable for limit of harmful substances in wooden furniture materials; 3. GB/T 1952.1-2012: Applicable for upholstered sofa durability and structural performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
