PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 400 × 500 mm
Leg height	150 mm
Individual drawer front dimensions	350 x 160 mm
Central glass cabinet door dimensions	370 x 320 mm
Interior shelf depth in central cabinets	360 mm
Top panel thickness	25 mm
Carcass side panel thickness	18 mm
Adjustable shelf height positions in central bays	3 positions
Round hardware pull diameter	30 mm
Clearance under console	125 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface distributed static load	80 kg
Interior shelf static load	15 kg
Individual drawer static load	10 kg
Maximum TV screen size fit	75 in
Net weight	45 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame and leg construction	Solid rubberwood with natural matte lacquer finish
Drawer and cabinet front panels	MDF core with matte white paint finish
Central cabinet door panels	5mm clear tempered glass with white wood frames
Hardware pulls	Zinc alloy with brushed brass finish
Drawer slides	Cold-rolled steel side-mounted soft-close slides
Cabinet hinges	Stainless steel concealed hydraulic hinges
Back panel	3mm hardboard with pre-cut cable openings
Interior shelves	15mm thick particleboard with natural wood veneer finish
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Two stacked drawers per end, two central glass-fronted cabinets
Central cabinet shelving	One adjustable shelf per glass cabinet bay, 3 height positions
Drawer operation	Soft-close drawer slides with pull-open activation, no protruding handles
Cable management	Rear pre-cut 60mm diameter cable ports behind each central cabinet
Ventilation design	10mm gap behind glass doors and rear panel vents
Leg stability	Four fixed tapered solid wood legs with optional floor protection pads
Surface usability	Flat, scratch-resistant top surface for decor and TV placement
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Residential living room, placed against a wall under wall-mounted or standing TV
Suitable design schemes	Nordic, Japanese minimalism, modern light wood style interiors
Matching furniture sets	Paired with matching solid wood frame sofas, coffee tables and accent chairs as visible in reference scene
Storage use cases	Holds media accessories, remote controls, game discs, books and AV components
Space suitability	Small to medium sized apartments from 60 to 120 square meters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture safety for domestic storage units	EN 14749:2016
Surface abrasion resistance for painted wood	EN 12720:2013
Formaldehyde emission for wood panels	EN 13986:2004+A1:2015 E1 grade

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission limit	GB/T 18580E1 grade
Wood furniture general technical requirement	GB/T 3324
Tempered glass safety standard	GB 15763.2

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission limit: GB/T 18580E1 grade;
2. Wood furniture general technical requirement: GB/T 3324;
3. Tempered glass safety standard: GB 15763.2;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-RW180-WG4D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-RW180-WG4D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-RW180-WG4DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

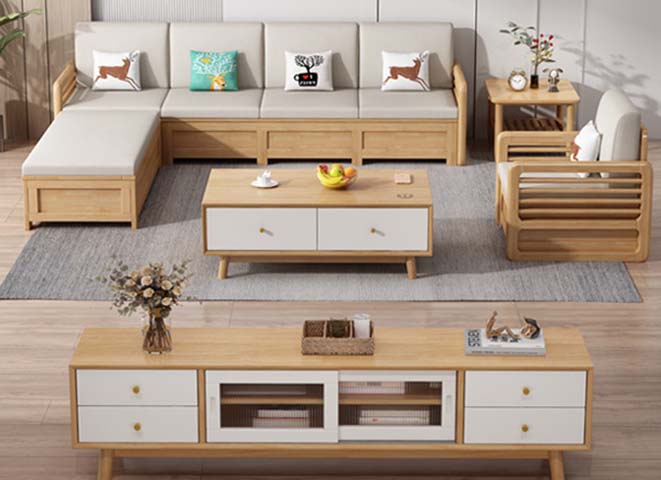

This freestanding Nordic-style TV media console balances light natural wood tones and crisp matte white finishes for a clean, open-yet-structured visual presence. Its layout places two stacked drawer units at each end, flanking two central glass-fronted cabinet bays; the elevated frame rests on four tapered solid wood legs, creating a light, unobtrusive silhouette that avoids visual heaviness in compact spaces.
The console’s frame and legs are built from solid rubberwood finished with natural matte lacquer, paired with MDF-cored matte white drawer and cabinet fronts, 5mm clear tempered glass central door panels set in white wood frames, and brushed brass-finish zinc alloy hardware. Soft-close cold-rolled steel side-mounted drawer slides and concealed hydraulic stainless steel hinges support long-term regular use, while a 3mm hardboard back panel, 15mm natural wood veneer particleboard interior shelves, and 2mm edge banding add consistent structural integrity across all components. The top panel and carcass side panels are sized for stable support, with central bay shelves offering three adjustable height positions to accommodate different stored items.
Practical design details support seamless media use: the flat, scratch-resistant top surface supports TVs up to 75 inches, with rated distributed static load capacity for safe placement of devices and decor. Soft-close drawers operate via pull-open activation with no protruding handles, reducing visual clutter, while pre-cut rear cable ports behind each central cabinet, dedicated ventilation gaps behind glass doors, and rear panel vents support organized AV component setup and consistent airflow. Drawers, shelves, and enclosed cabinet space hold media accessories, remote controls, game discs, books, and connected tech devices with rated load capacities tailored to each storage zone.
This console is designed for residential living rooms, placed against a wall beneath wall-mounted or standing televisions, and complements Nordic, Japanese minimalism, and modern light wood interior schemes in small to medium apartments. It pairs naturally with matching solid wood frame sofas, coffee tables, and accent chairs for a coordinated living space layout.
Procurement teams and buyers should note the unit ships across multiple cartons, with an 40-minute assembly time per set. Optional floor protection pads are available for use with delicate flooring surfaces, and the mixed open-and-closed storage layout eliminates the need for separate secondary media storage in most target living spaces.

Nordic Light Wood and White TV Media Console with Glass Doors and Drawers Specifications
