PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 600 × 2000 mm
left long hanging zone internal width	500 mm
right tall hanging zone internal width	700 mm
central open shelf column width	300 mm
long hanging zone internal height	1400 mm
short hanging zone internal height	900 mm
lower short hanging zone under drawer height	700 mm
central drawer internal dimensions	700 x 400 x 120 mm
shelf compartment internal dimensions	300 x 300 mm
upper bulk storage shelf dimensions	500 x 400 x 300 mm
carcass panel thickness	18 mm
base leg height	100 mm
back panel thickness	5 mm
edge band thickness	1 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

unit net weight	75 kg
hanging rod static load capacity	30 kg per rod
total clothing storage capacity	80 hangers plus 4 shelf compartments and 1 drawer
surface scratch resistance	2000 abrasion cycles
anti-tip hardware load rating	50 kg pull resistance
hinge and slide cycle rating	50000 open/close cycles
drawer slide load rating	25 kg per pair
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main carcass	18mm thick engineered particleboard with natural light oak melamine foil finish
back panel	5mm thick hardboard with matching light wood finish
hanging rods	25mm diameter powder-coated steel with matte silver finish
central drawer front	18mm thick matching engineered wood with recessed metal pull handle
shelf surfaces	18mm thick matching engineered wood with 1mm PVC edge banding
base legs	Solid rubberwood with natural clear coat finish
drawer slides	Cold-rolled steel side-mounted ball-bearing slides
edge banding	1mm thick PVC in matching wood tone
anti-tip hardware	Zinc-plated steel wall anchor brackets and screws
drawer internal base	12mm thick high-density fiberboard
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

dual separate hanging zones	Left full-height zone for long garments, right split zone for short tops and lower trousers
four central open shelves	Fixed horizontal shelves in middle column for folded clothes, cushions or accessories
central soft-close drawer	Single full-width drawer between right hanging sections for small clothing items
upper bulk storage shelf	Top-left enclosed open shelf for folded bedding, linens or out-of-season items
wall anti-tip anchoring	Included hardware secures top rear of unit to wall studs
no door access	Completely open front design without hinged or sliding doors
modular shelf adjustment	Pre-drilled pin holes allow 32mm incremental height adjustment of central shelves
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential bedroom	Primary clothing storage for studio, apartment or master bedroom open closet layouts
rental property furnishing	Freestanding installation without wall modification required (anchoring recommended)
boutique retail display	Open front design displays garments and accessories for clothing store visual merchandising
entryway dressing zone	Placed near entry for outerwear, bags and daily outfit storage
small apartment storage	Compact 1600mm width fits narrow bedroom spaces without occupying excess floor area
dormitory or shared housing	Dual hanging zones divide storage space for 2 users sharing a bedroom

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Storage furniture for office and domestic use, safety and strength requirements for freestanding units
EN 12221-1:2005+A1:2013	Furniture for clothing storage, functional and structural performance test methods

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and structural quality checks
GB 18584-2001	Limit of formaldehyde emission for indoor wooden furniture, mandatory for indoor air safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality checks;
2. GB 18584-2001: Limit of formaldehyde emission for indoor wooden furniture, mandatory for indoor air safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OW-16060200-NW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OW-16060200-NW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OW-16060200-NWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

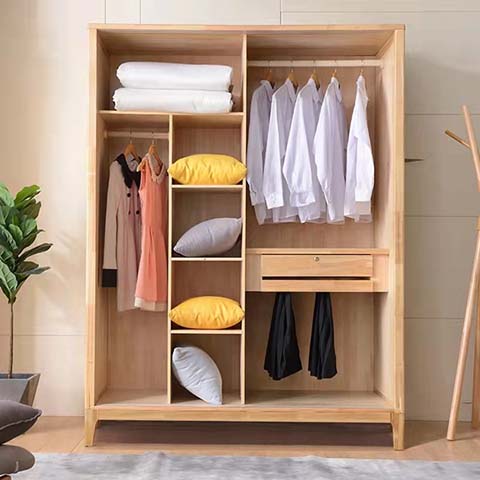

The Light Natural Wood Freestanding Open Wardrobe (model OW-16060200-NW) is an unbranded doorless clothing armoire designed for flexible, accessible storage across residential and light commercial settings. Visually, it features a warm light natural oak finish across its main surfaces, balanced by matte silver powder-coated steel hanging rods and a recessed metal pull handle on its central drawer. The layout is organized into three distinct vertical sections: a left dedicated long hanging zone, a central column of open shelves, and a right split hanging zone, with solid rubberwood legs elevating the unit slightly above floor level for a streamlined, open aesthetic that avoids the bulk of closed-door armoires. The unit is built for lasting daily use, with an 18mm thick engineered particleboard carcass wrapped in scratch-resistant light oak melamine foil rated to withstand 2000 abrasion cycles. Matching 18mm engineered wood forms the drawer front and shelf surfaces, which are finished with 1mm wood-tone PVC edge banding to prevent chipping. The 5mm hardboard back panel carries a matching light wood finish, while 25mm diameter matte silver steel hanging rods support static loads of 30kg per rod. The central soft-close drawer operates on cold-rolled steel side-mounted ball-bearing slides rated for 25kg per pair and 50000 open-close cycles, and zinc-plated steel anti-tip hardware with 50kg pull resistance is included for secure installation. Functionally, the wardrobe delivers dedicated storage for varied items: the left 500mm wide zone offers 1400mm of hanging height for long garments such as dresses and coats, paired with an upper bulk storage shelf for folded linens or out-of-season items. The right 700mm wide zone is split into a 900mm tall upper section for short tops and a 700mm tall lower section for trousers, separated by the 700 x 400 x 120mm central drawer sized for small clothing items and accessories. The 300mm wide central column holds four fixed open shelves, with pre-drilled pin holes allowing 32mm incremental height adjustments to accommodate folded clothes, cushions or personal items. In total, the unit supports 80 hangers across its hanging zones, plus storage across four shelf compartments and one drawer, with completely open access that eliminates door obstruction. This wardrobe suits a broad range of spaces: it serves as primary clothing storage for studio apartments, master bedrooms with open closet layouts, and narrow small apartment bedrooms, with its 1600mm width fitting compact floor plans without excess footprint. It works well for rental property furnishing, as freestanding installation requires no permanent wall modification (though anti-tip anchoring is recommended), and its divided dual hanging zones make it ideal for dormitories or shared bedrooms where two users split storage space. Its open front also supports boutique retail visual merchandising to display garments and accessories, or placement in entryways to hold outerwear, bags and daily outfit pieces. When procuring this unit, note that it ships as one set across multiple cartons with a total packaged gross weight of 100kg and total packaging volume of 0.65m³.

Light Natural Wood Freestanding Open Wardrobe with Dual Hanging Zones, Central Shelves and Drawer Specifications
