PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1920 × 2200 × 1100 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 adults
Recommended user weight per sleeper	120 kg
Total static bed support load	400 kg
Frame net weight	68 kg
Mattress support point count	14 slats
Single slat distributed load	25 kg
Headboard lateral push resistance	90 kg
Leg floor contact points	4 legs
Design service target	10 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Black padded synthetic leather-look fabric over engineered-wood panel
Headboard core	30 mm engineered-wood board with foam padding
Headboard padding thickness	40 mm high-resilience polyurethane foam
Side and foot rails	Black upholstered engineered-wood rails with 25 mm foam layer
Internal support frame	25 mm plywood or particleboard support board with metal joining brackets
Slat system	14 curved plywood slats, 60 mm wide and 12 mm thick
Bed legs	Matte-black powder-coated steel splayed legs, 30 x 30 mm section
Leg attachment hardware	2.0 mm steel mounting plates with M8 bolts
Surface seam structure	Vertical center seam joining two padded headboard panels
Bottom rail finish	Black wear-resistant upholstered wrap with concealed stapling
Floor contact pads	Injected plastic non-slip pads under each steel leg
Nightstand visible material	Black painted wood-composite drawer fronts with metal pulls

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	Supports one 1800 x 2000 mm mattress for two-adult sleeping
Mattress support method	Platform slat support without a box spring
Headboard design	Two split padded panels provide back support and conceal wall contact
Under-bed access	160 mm open clearance allows robotic vacuum entry and floor cleaning
Leg stability design	Four outward-splayed steel legs transfer load and resist lateral movement
Assembly method	Knock-down assembly using bolted headboard, side rails, foot rail, slats, and legs
Bedding retention	Upholstered foot and side rails contain the mattress within the platform perimeter
Ventilation function	Slatted support creates air circulation under the mattress
Wall placement	Freestanding headboard intended for placement against a flat wall
Noise control target	Threaded inserts, lock washers, and padded slat seats limit metal-to-frame noise
Color option visible	Black upholstered finish
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Rail and footboard carton size	2240 x 430 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Master bedroom	Suits a 1800 x 2000 mm two-adult bed placement in a modern master bedroom
Modern dark interior	Pairs with black nightstands, warm wall panels, and wood-look flooring
Robot-cleaner household	Suitable where a 160 mm under-bed gap is required for robotic vacuum access
Compact luxury apartment	Low platform footboard reduces visual bulk while retaining a wide upholstered headboard
Hotel-style guest suite	Can be specified for upscale guest rooms with coordinated bedside storage and lamps
Bedroom clearance planning	Requires a minimum 2900 x 3200 mm room zone for bed, nightstands, and circulation
Flooring compatibility	Suitable for wood, laminate, tile, and low-pile carpet with protective leg pads

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Bed structural safety	EN 1725:1998 domestic furniture - beds and mattresses - safety requirements and test methods
Furniture durability	EN 12521:2015 domestic furniture - strength, durability and safety
Upholstered furniture flammability	EN 1021:2014 cigarette ignition resistance
Wood-based panel emission	EN 13986:2004 wood-based panels for construction use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture safety recommendation	GB/T 3324 general technical requirements for wooden furniture
Formaldehyde verification	GB 18584indoor decorative wood-based furniture limit
Upholstered furniture safety	GB/T 36012service technical requirements for upholstered furniture
Furniture inspection recommendation	GB/T 10357.6furniture mechanical surface test

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture safety recommendation: GB/T 3324 general technical requirements for wooden furniture;
2. Formaldehyde verification: GB 18584indoor decorative wood-based furniture limit;
3. Upholstered furniture safety: GB/T 36012service technical requirements for upholstered furniture;
4. Furniture inspection recommendation: GB/T 10357.6furniture mechanical surface test;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-BLK-1800-SPLIT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-BLK-1800-SPLIT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-BLK-1800-SPLITOpen Export Tool

Quick Actions

Post an RFQ

Product Description

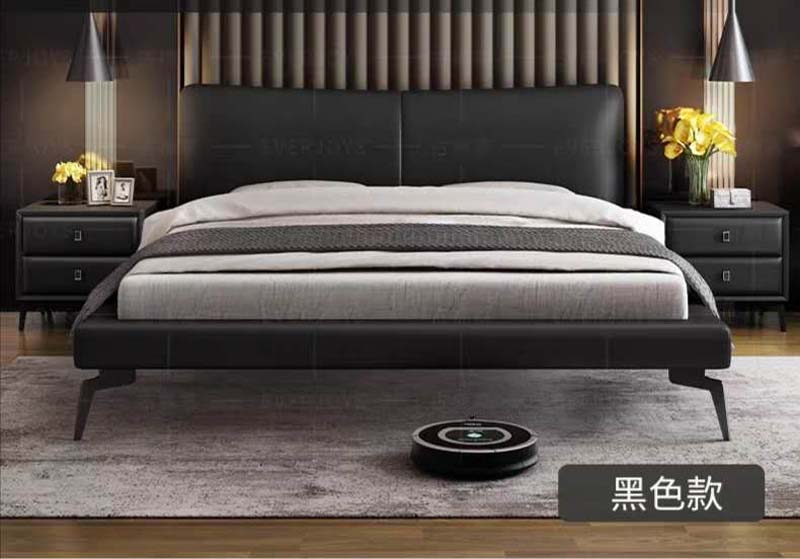

The Black Upholstered Platform Bed with Two Split Headboard Panels is a modern low-profile sleep foundation for one 1800 x 2000 mm mattress and two adult users. Its defining visual feature is a wide black headboard formed as two padded panels joined at a vertical center seam, paired with upholstered side and foot rails. The dark synthetic leather-like surface and outward-splayed matte-black steel legs give the frame a tailored, contemporary appearance, while the low footboard helps reduce visual bulk in a smaller room. The headboard uses a 30 mm engineered-wood board with 40 mm high-resilience polyurethane foam beneath black synthetic leather-look upholstery. Side and foot rails are engineered wood with black upholstery and a 25 mm foam layer. Inside, a 25 mm plywood or particleboard support board is connected with metal joining brackets. The platform carries 14 curved plywood slats, each 60 mm wide and 12 mm thick, with 80 mm spacing and side rails 40 mm thick. Six center support legs are recommended. The matte-black powder-coated steel legs have a 30 x 30 mm section and attach with 2.0 mm steel mounting plates and M8 bolts. No box spring is required. The slatted platform distributes mattress support while the upholstered foot and side rails retain the mattress within the perimeter. The split, padded headboard also provides back support and conceals wall contact. Four splayed steel legs transfer load and help resist lateral movement, while 160 mm of open under-bed clearance permits robotic vacuum access and floor cleaning. The design has a total static support load of 400 kg, with a recommended weight of 120 kg per sleeper. This bed is suited to a modern master bedroom, compact luxury apartment, dark-toned interior, or upscale hotel-style guest suite. It coordinates naturally with black nightstands, warm wall panels, wood-look flooring, bedside storage, and lamps. Planning should allow a minimum bedroom zone of 2900 x 3200 mm for the bed, nightstands, and circulation. Procurement teams should note that the model is unbranded and supplied in black. It uses knock-down assembly with bolted headboard, rails, slats, and legs; reference assembly time is 40 minutes per set. Logistics information includes a packaged gross weight of 130 kg per set, 0.9 cubic meters of packaging volume, and multi-carton shipping. Site planning should also account for the 68 kg frame weight and confirm the recommended center-leg configuration before installation.
