PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2210 × 2210 × 1105 mm
Overall outer dimensions	2210 x 2210 x 1105 mm
Mattress platform size	1800 x 2000 mm
Front footboard dimensions	2210 x 350 x 450 mm
Side rail dimensions	350 x 2100 x 450 mm
Sleeping surface height	300 mm
Mattress thickness fit	300 mm
Under-frame clearance	90 mm
Outer platform overhang	205 mm per side and foot
Headboard cushion modules	2 cushions, each 1030 x 750 mm
Side platform seating width	205 mm
Slat roll width	1780 mm
Center support beam	2000 x 70 x 40 mm
Support leg spacing	500 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	449 kg
Net weight	74.2 kg
Mattress support capacity	180 kg
Slat count	26 slats
Slat spacing	75 mm
Center support legs	4 legs
Recommended mattress thickness	300 mm
Occupant capacity	2 adults
Warranty period	1 year
Color options	2 colors

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Light gray soft woven fabric with smooth pile
Headboard padding	Polyurethane foam panels under channel-tufted fabric
Back cushion filling	Fiber-wrapped foam cushion cores in two removable-looking sections
Side and foot padding	Foam-padded upholstered rails with rounded corners
Internal frame	Engineered-wood or steel load-bearing frame
Slat support	26 wood or steel slats attached across the frame
Center beam	70 mm rectangular wood or steel beam with floor legs
Rail connectors	Cam-bolt or bolt-on steel hardware with inset brackets
Floor-facing base	Dark recessed support rail with concealed feet
Fabric seam construction	Channel seams at 260 mm vertical spacing
Anti-noise strips	EVA or felt slat isolation strips at contact points
Edge treatment	Self-piped soft rolled edges without exposed hard trim

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed platform support	Mattress rests directly on the slat deck and no box spring is required
Channel-tufted headboard	Two padded cushion sections provide back support with fixed horizontal channels
Center-load distribution	A full-length beam and four legs transfer mid-span load to the floor
Low-entry access	The 300 mm sleeping surface gives a low modern entry height
Noise-reduction interface	Slats can be fitted with isolation strips to limit metal or wood movement
Knock-down assembly	Headboard, side rails, foot rail, beam, legs and slat roll join on site
Mattress compatibility	Supports memory foam, latex, innerspring and hybrid mattresses up to 300 mm thick
Perimeter impact protection	Continuous foam upholstery covers side, foot and headboard edges
Floor clearance limitation	The 90 mm shadow gap is for cleaning access, not storage bins
Fixed positioning	The bed is not designed to fold, recline, lift for storage or convert to a sofa
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Package protection	Foam corners, plastic bag and corrugated carton for upholstered parts
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suits a modern main bedroom where a low padded bed anchors a soft, uncluttered layout
Contemporary residential suite	Pairs with low nightstands and warm ambient lighting for neutral interior schemes
Serviced apartment	Provides two-adult sleeping with durable direct platform support and no box spring
Boutique hotel room	Soft padded perimeter suits low-profile guestroom designs requiring impact-safe edges
Compact luxury bedroom	The recessed mattress and wide padded frame create a lounge-like bed without storage bulk
Showroom display	Can be staged with pillows, throw and sculptural lighting as a cloud-bed focal product
Two-user nightly use	Queen width, center beam and 449 kg static capacity support regular two-adult occupancy

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725 applicability	Domestic and contract bedding safety, strength and durability requirements
EN 1022 applicability	Domestic furniture seating stability, relevant only if side bolsters are used for seating
EN 1021-1 applicability	Upholstered furniture ignitability by smouldering cigarette
EN 717-1 applicability	Formaldehyde release from wood-based panels by chamber method

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA e3 applicability	Furniture sustainability credits for materials, energy and human ecosystem effects

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	General technical requirements for wooden furniture, applicable if the frame uses wood panels
GB/T 3325 applicability	Metal furniture technical requirements, applicable if the supplied frame is steel-based
GB 18584 applicability	Indoor wooden furniture limited harmful substances, recommended for panel components
GB/T 10357.6 applicability	Furniture physical and mechanical tests for beds, recommended for static load validation
GB 20286 applicability	Public-place furniture flammability requirement, applicable to contract installations

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: General technical requirements for wooden furniture, applicable if the frame uses wood panels;
2. GB/T 3325 applicability: Metal furniture technical requirements, applicable if the supplied frame is steel-based;
3. GB 18584 applicability: Indoor wooden furniture limited harmful substances, recommended for panel components;
4. GB/T 10357.6 applicability: Furniture physical and mechanical tests for beds, recommended for static load validation;
5. GB 20286 applicability: Public-place furniture flammability requirement, applicable to contract installations;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-CLOUD-LG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-CLOUD-LG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-CLOUD-LG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

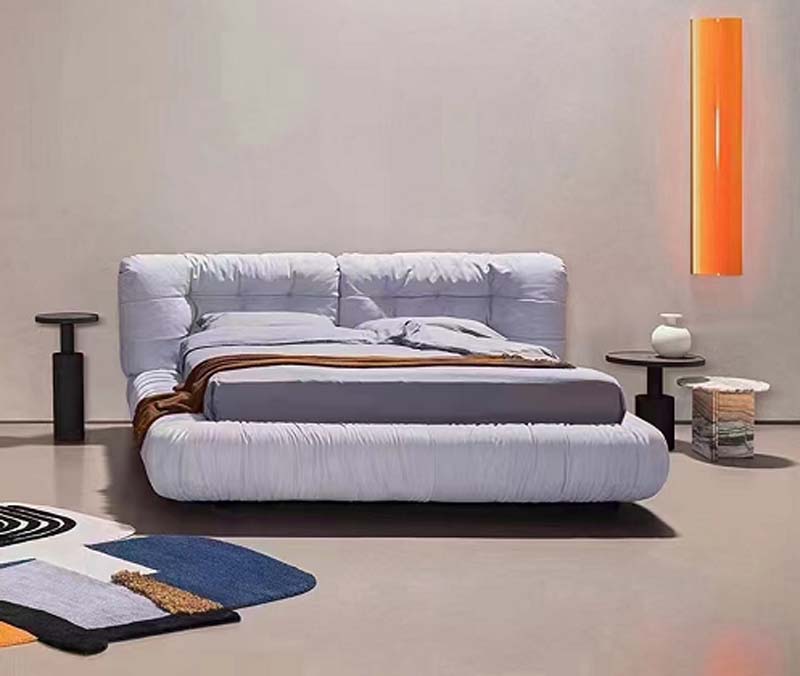

The Light Gray Channel-Tufted Upholstered Platform Bed is a low-profile bed with a broad padded silhouette, rounded frame corners, and a fully upholstered exterior. Its light gray woven fabric creates a soft, neutral appearance, while the channel-tufted headboard adds structured texture. Two padded cushion sections sit within the headboard, supported by fixed horizontal channels, giving the bed a relaxed, lounge-like presence. The mattress platform is recessed within wide upholstered side rails and a matching footboard, producing a grounded, modern layout suited to uncluttered interiors. Construction combines soft woven upholstery with polyurethane foam padding over an engineered-wood or steel load-bearing frame. The headboard uses foam panels beneath the channel-tufted fabric, and the back cushion sections contain fiber-wrapped foam cores. The side and foot rails are foam padded with rounded corners. A dark recessed support rail and concealed feet form the floor-facing base, helping the bed retain a clean visual profile. The platform uses 26 wood or steel slats across the frame, with a full-length rectangular center beam and four floor-facing support legs. This arrangement distributes mid-span weight to the floor and provides direct mattress support without a box spring. The stated static load capacity is 449 kg, with mattress support capacity of 180 kg. Slats may be fitted with isolation strips to reduce movement noise between structural components. The bed supports memory foam, latex, innerspring, and hybrid mattresses up to 300 mm thick, and its 300 mm sleeping surface offers low-entry access. Overall outer dimensions are 2210 x 2210 x 1105 mm, with an 1800 x 2000 mm mattress platform. The headboard is 1105 mm high, the footboard and side rails are 450 mm high, and under-frame clearance is 90 mm. The design suits a contemporary main bedroom, residential suite, serviced apartment, boutique hotel room, compact luxury bedroom, or showroom display. It pairs naturally with low nightstands, warm lighting, pillows, and throws. Procurement teams should note the unbranded model UPB-Q-CLOUD-LG-01, knock-down assembly, and reference assembly time of 40 minutes per set. Components join with cam-bolt or bolt-on steel hardware and inset brackets. Packaging protects upholstered parts with foam corners, a plastic bag, and corrugated cartons; reference logistics list two cartons, 130 kg packaged gross weight, and 0.9 cubic meters of packaging volume per set.

Light Gray Channel-Tufted Upholstered Platform Bed Specifications
