PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2080 × 2270 × 1050 mm
Overall bed dimensions	2080 x 2270 x 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	68 kg
Recommended mattress weight capacity	60 kg
Static bed load capacity	350 kg
Recommended user count	2 adults
Slat system quantity	28 slats
Individual slat spacing	55 mm
Leg load points	4 legs
Fabric seam stitch density	9 stitches per 25 mm
Warranty target	5 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer headboard frame	Fabric-upholstered padded panel over engineered board
Front headboard cushions	Two independent grey woven-fabric cushions with soft filling
Platform side rails	Grey woven fabric over padded engineered-wood rails
Internal support frame	Kiln-dried timber or engineered wood battens with joinery hardware
Mattress support	Wooden slat support board system with 28 slats
Support legs	Polished chrome or brushed stainless steel square tube legs
Mounting hardware	Powder-coated steel corner brackets, bolts and barrel nuts
Upholstery textile	Woven polyester or polyester-blend fabric with 1.2 mm face thickness
Back cushion filling	High-resilience polyurethane foam with a 30 mm fibre topper
Rail padding	20 mm polyurethane foam under woven fabric
Mattress shown	Black quilted mattress or removable mattress cover
Slat Thickness	15 mm bent plywood or solid timber

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	King-size two-person platform designed for an 1800 x 2000 mm mattress
Headboard support	Two padded back cushions provide shoulder and reading support against the fixed outer frame
Platform installation	Knockdown rails attach to headboard and support frame with concealed bolted brackets
Mattress retention	Upholstered side and end rails contain the mattress on the slat platform without a separate footboard
Under-bed access	80 mm open clearance permits robot vacuum access and limited airflow but no storage drawers
Slat ventilation	Open-spaced timber slats allow air circulation beneath the mattress
Floor protection	Four metal legs should use fitted glides or pads to distribute load and protect hard flooring
Headboard positioning	Fixed floor-standing headboard aligns against a wall and does not include an angle-adjustment mechanism
Bedding clearance	120 mm padded side rails retain thick bedding while maintaining a low modern profile
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suits a modern primary bedroom where a low-profile king bed and soft padded headboard are required
Hotel guest room	Suitable for upscale boutique hotel rooms using a durable woven textile and compact metal-leg base
Serviced apartment	Fits long-stay apartments needing knockdown delivery, two-person sleeping capacity and standard king bedding
Dark contemporary interior	Pairs with grey, taupe, black or charcoal palettes and soft area rugs
Compact luxury bedroom	Appropriate where floor space is limited because the no-footboard design reduces visual weight
Reading-in-bed setup	Split padded headboard supports two independent back-rest areas for reading or media use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture strength	EN 1725:1998
Upholstered furniture burning behaviour	EN 1021:2014 and EN 1021:2014
Formaldehyde emission	EN 717:2004

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture structural safety	GB/T 3324
Upholstered furniture safety	GB 17927
Textile formaldehyde	GB 18401Category B

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture structural safety: GB/T 3324;
2. Upholstered furniture safety: GB 17927;
3. Textile formaldehyde: GB 18401Category B;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BD-PLT-SPH-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BD-PLT-SPH-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BD-PLT-SPH-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

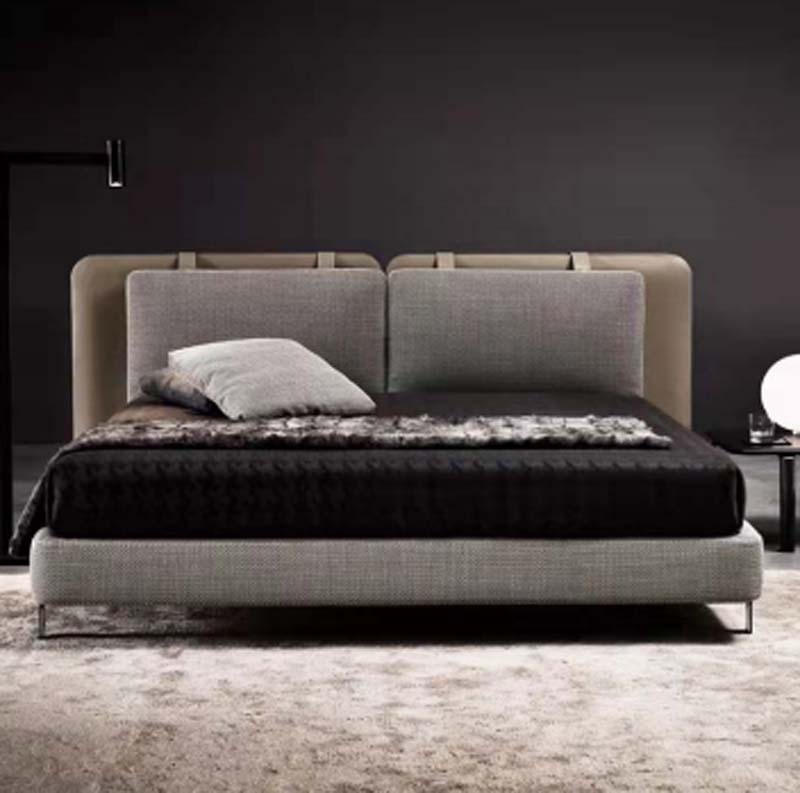

The Upholstered Platform Bed with Split Padded Headboard is a contemporary king-size sleeping piece designed for two adults. Its low-profile platform presents a clean, upholstered form with a fixed headboard frame and two independent grey woven-fabric cushions. The split cushion layout creates separate back-rest zones, while the absence of a footboard keeps the visual composition light and gives the bed a streamlined presence suited to modern interiors. The headboard combines a fabric-upholstered padded panel over engineered board with soft-filled front cushions. Its cushioning uses high-resilience polyurethane foam beneath a fibre topper, providing shoulder support and a comfortable surface for reading or media use. The side and end rails are finished in grey woven fabric over padded engineered wood, containing the mattress without requiring a separate footboard. Built around an engineered wood frame with kiln-dried timber or engineered wood battens and joinery hardware, the bed uses a wooden slat support system with 28 slats. Open slat spacing encourages air circulation beneath the mattress. The exterior is finished in woven polyester or polyester-blend fabric, and the base rests on polished chrome or brushed stainless steel square tube legs. Internal assembly details include powder-coated steel corner brackets, bolts and barrel nuts, with knockdown rails attaching to the headboard and support frame using concealed bolted connections. This platform bed is configured for an 1800 x 2000 mm mattress. The upholstered rails help retain the mattress in position, while the open under-bed clearance allows robot vacuum access and limited airflow; no storage drawers are included. Fitted glides or pads should be used on the four metal legs to distribute load and protect hard flooring. The stated static bed load capacity is 350 kg, with a recommended mattress weight of 60 kg. The design fits residential primary bedrooms, compact luxury bedrooms and dark contemporary schemes using grey, taupe, black or charcoal palettes, especially when paired with soft area rugs. It is also appropriate for upscale boutique hotel guest rooms and long-stay serviced apartments where standard king bedding, two-person capacity and a refined upholstered appearance are required. Procurement teams should note the unbranded model BD-PLT-SPH-1800, knockdown delivery, assembly requirement and two-carton set packing. Installation time is referenced at 40 minutes per set. Specifiers should also confirm leg finish, floor protection accessories, mattress compatibility and the intended support arrangement before purchase.

Upholstered Platform Bed with Split Padded Headboard Specifications
