| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Side Rail Thickness | 40 mm | |
|---|---|---|
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Recommended static sleep load | 300 kg | |
|---|---|---|
| Mattress support point load | 100 kg at any 400 x 400 mm area | |
| Bed frame net weight | 75 kg | |
| Mattress support capacity | 1 mattress, 1530 x 2030 mm maximum | |
| Occupant capacity | 2 adults | |
| Slat spacing requirement | 80 mm clear gap | |
| Center support leg load rating | 100 kg per leg | |
| Fastener cyclic assembly target | 20 assembly/disassembly cycles | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
Core acceptance fields · Panels / hardware / frame / upholstery

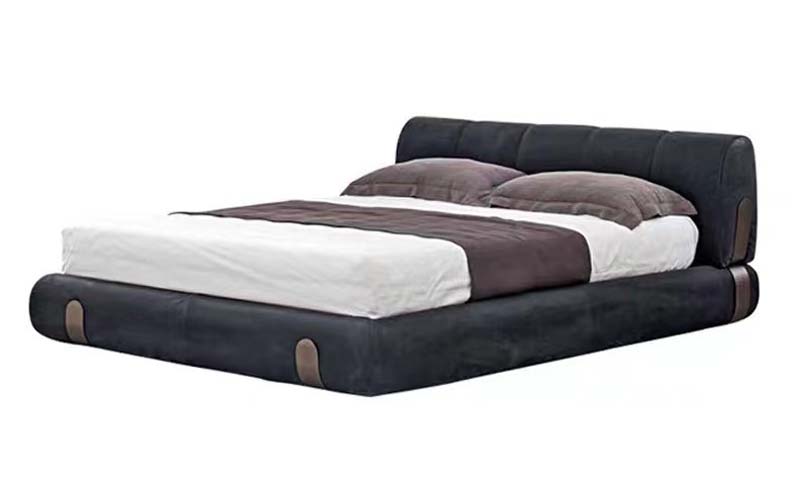

| Headboard upholstery | Black woven fabric over padded panel with five vertical channel seams | |
|---|---|---|
| Side and foot rail upholstery | Black fabric over fully padded wood or engineered-wood frame | |
| Decorative inserts | Brown smooth-finish oval and strap-like accents at side corners and foot rail | |
| Internal support frame | Kiln-dried hardwood or LVL structural frame with bolted corner joints | |
| Mattress support system | 15 mm poplar plywood deck or 25 mm bentwood slats with center rail | |
| Center support beam | 40 x 60 mm rectangular wood or steel beam with three floor legs | |
| Padding layers | 25 mm polyurethane foam on headboard and 20 mm foam on side rails | |
| Foam density | 30 kg/m3 polyurethane foam for upholstered rails and headboard | |
| Bottom dust cover | Black non-woven polypropylene fabric tacked under the base | |
| Feet or floor glides | 20 mm black nylon or rubber non-scuff glides flush with upholstered base | |
| Joinery hardware | M8 carbon-steel bolts, barrel nuts, and lock washers at rail and headboard joints | |
| Seam construction | Stitched vertical channel seams with 70 mm seam pitch across the headboard |
Adjustment / rotation / tilt / mobility / storage features
| Sleeping function | Fixed platform sleeping surface for one queen-size mattress up to 250 mm thick | |
|---|---|---|
| Headboard support | Padded vertical headboard provides backrest and pillow retention without recline adjustment | |
| Mattress retention | Raised upholstered side and foot rails contain the mattress and reduce lateral movement | |
| Under-bed storage | No lift mechanism or storage drawers are visible; base functions as a fixed platform | |
| Assembly method | Knockdown headboard, side rails, foot rail, and support slats connect with bolts and cross dowels | |
| Floor adaptation | Low-profile glides allow placement on hard floors or low-pile carpet with 20 mm clearance | |
| Ventilation provision | Slatted support or perforated platform deck maintains bottom-side mattress airflow | |
| Center load transfer | Center beam and three support legs transfer the mattress load across the long span | |
| Bedding clearance | 300 mm rail height retains mattress corners without obstructing sheet changes | |
| No power or adjustment | No motor, actuator, remote, or articulated deck is visible; bed is non-adjustable | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Total gross weight | 85 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Primary bedroom | Suitable for a 12 to 18 square meter bedroom with queen bedding and two bedside tables | |
|---|---|---|
| Modern residential suite | Black padded frame and brown accents fit contemporary, hotel-inspired, or urban interiors | |
| Hotel or serviced apartment | Suitable for rooms requiring a soft headboard, durable edge protection, and standardized queen bedding | |
| Guest bedroom | Dual-occupancy platform provides a compact styled bed without under-bed drawer hardware | |
| Boutique rental furnishing | Suitable for furnished apartments where a fully upholstered statement bed is delivered in knockdown cartons | |
| Carpeted or hard-floor placement | Low glides suit wood, tile, laminate, and low-pile carpet with 20 mm clearance | |
| Recommended surrounding clearance | 300 mm minimum on each long side and 600 mm at the foot for circulation and bed making |
EU Market Access Requirements* EN Standards
| Structural safety standard | EN 1725:1998 domestic and contract bedding furniture safety requirements | |
|---|---|---|
| Bed durability test standard | EN 1957:2015 test methods for beds and mattresses | |
| Upholstered furniture seating-bed fire guidance | EN 1021:2014 smouldering cigarette ignition resistance | |
| Wood-based panel emission guidance | EN 13986:2004 wood-based panels for construction use |
US and Canada office-furniture standards
| Bedding support reference | BIFMA E2019does not directly cover residential beds; use EN 1725 instead | |
|---|---|---|
| Commercial furniture hardware guidance | BIFMA X2017threaded fastener integrity concepts may inform bolted joint inspection |
Standards applicable to China-market projects
| Bed safety dimensional recommendation | GB/T 3324 general technical requirements for wooden furniture | |
|---|---|---|
| Upholstered furniture flammability guidance | Recommended references: GB 17927 | |
| Formaldehyde emission recommendation | GB 18580formaldehyde emission for wood-based panels | |
| Furniture hardware recommendation | GB/T 3325 metal furniture general technical requirements |
This product must meet the following technical requirements: 1. Bed safety dimensional recommendation: GB/T 3324 general technical requirements for wooden furniture; 2. Upholstered furniture flammability guidance: Recommended references: GB 17927; 3. Formaldehyde emission recommendation: GB 18580formaldehyde emission for wood-based panels; 4. Furniture hardware recommendation: GB/T 3325 metal furniture general technical requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
