PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1980 × 2280 × 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Bed frame recommended static load	400 kg
Mattress user capacity	2 adults
Frame net weight	72 kg
Mattress weight	32 kg
Deck distributed support load	260 kg
Perimeter rail top load	30 kg
Fastener torque target for steel base	12 Nm
Recommended durability cycles	20000 simulated loading cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard central panel	Cream woven fabric upholstery over padded backing with vertical channel tufting
Headboard outer wings	Brown synthetic-leather wrapping over a shaped wood or engineered-wood frame
Bed perimeter rail	Brown synthetic-leather padded rail on an engineered-board substrate
Support base	Black powder-coated rectangular steel tube with inverted-V legs and continuous floor runners
Slat or deck substrate	18 mm engineered-wood support board or poplar slat set
Mattress side fabric	Blue knitted or woven textile with diamond-quilted stitching
Mattress top panel	White quilted fabric sleeping surface with a dark printed product band
Mattress edge tape	White piped perimeter tape separating blue side and white top panels
Internal mattress comfort layer	240 mm hybrid foam and support-core construction
Frame hardware	Black finished steel brackets, M8 bolts, washers, and barrel nuts
Floor contact pads	PVC or nylon protective glides on black runner ends
Sewing construction	Diamond-quilted mattress cover with stitched channels and sewn-on fabric care label

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed platform support	Low-profile platform holds an 1800 x 2000 mm mattress without requiring a box spring
Headboard support	Padded wing headboard provides seated back support and retains pillows at the wall side
Base stability structure	Two inverted-V steel frames connect through longitudinal runners to distribute load and resist lateral movement
Under-bed access	210 mm open clearance allows robot vacuums and routine floor cleaning beneath the sleeping deck
Perimeter protection	Continuous brown upholstered rail frames the mattress and reduces lateral mattress shift
Knock-down assembly	Headboard, perimeter rails, support deck, and two leg frames join with bolted brackets for flat-packed delivery
Mattress placement	Mattress rests directly on the support deck and is removable for rotation or replacement
Wall placement	Straight rear headboard is designed for placement against a flat wall with bedside clearances
Floor adaptation	Continuous runners spread pressure on hard floors and can accept self-adhesive leveling pads for uneven surfaces
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suits a modern main bedroom where a queen-size bed is paired with two bedside tables and wall lighting
Boutique guest room	Fits serviced apartments or hotel-style guest rooms requiring a soft headboard and durable low-profile frame
Compact modern interior	Open base and slim rail reduce visual weight in rooms with limited floor area
Residential procurement	Suitable for developers furnishing multiple bedrooms with one neutral cream-and-brown color scheme
Pairing recommendation	Pair with 1800 x 2000 mm bedding and two compact bedside cabinets below the 1050 mm headboard
Floor type suitability	Use on wood, tile, laminate, or carpet with protective runner glides secured before first use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic bedding strength	EN 1725:1998 for strength and durability testing of domestic beds
Mattress dimensional basis	EN 1334:1996 for mattress size and tolerance measurement
Upholstered furniture safety	EN 1021for cigarette ignition resistance of upholstery combinations
Furniture emissions	EN 16516 for VOC emission chamber testing of board and upholstered components

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional furniture standard	GB/T 3324 for wooden furniture dimensional and geometric tolerance checks during incoming inspection
Formaldehyde control	GB 18580 for formaldehyde emission limits on engineered-wood deck and backing boards
Upholstered furniture safety	GB/T 36012 for general technical requirements for upholstered furniture covering durability and construction integrity
Textile safety	GB 18401 Category C for non-direct skin-contact upholstery textiles

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional furniture standard: GB/T 3324 for wooden furniture dimensional and geometric tolerance checks during incoming inspection;
2. Formaldehyde control: GB 18580 for formaldehyde emission limits on engineered-wood deck and backing boards;
3. Upholstered furniture safety: GB/T 36012 for general technical requirements for upholstered furniture covering durability and construction integrity;
4. Textile safety: GB 18401 Category C for non-direct skin-contact upholstery textiles;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-CHF-1800-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-CHF-1800-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-CHF-1800-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

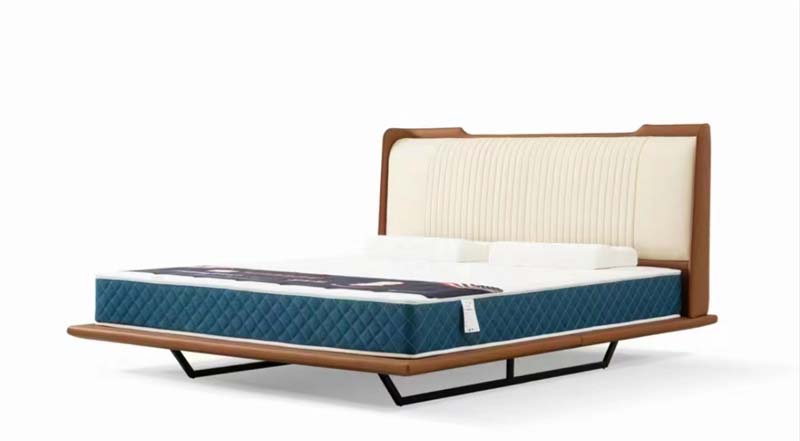

The Channel-Tufted Upholstered Platform Bed with Floating Rail and Black Metal Base is a modern low-profile bed defined by its layered materials and clean rectangular silhouette. The padded wing headboard combines a cream woven fabric center panel with vertical channel tufting and brown synthetic-leather outer wings wrapped over a shaped wood or engineered-wood frame. A continuous brown synthetic-leather padded rail surrounds the sleeping area, creating a framed, floating appearance above the black base. The support structure uses black powder-coated rectangular steel tubing, two inverted-V leg frames, and longitudinal floor runners that give the bed a contemporary sled-style visual line. Construction is intended for regular bedroom use without a box spring. The mattress rests directly on an 18 mm engineered-wood support board or poplar slat set, while the perimeter rail is built on an engineered-board substrate and upholstered for a soft edge. The steel frames connect through the runners to distribute load and resist lateral movement. A 240 mm hybrid foam and support-core mattress is included. Its white quilted sleeping surface is bordered by white piped edge tape, with blue knitted or woven side fabric and diamond-quilted stitching. The headboard offers padded support for sitting up and helps retain pillows near the wall, while the upholstered rail reduces lateral mattress movement. Under the deck, 210 mm of open clearance supports routine floor cleaning and use with a robot vacuum. The bed is supplied in knock-down form, with the headboard, rails, support deck, and two leg frames joining through bolted brackets. Steel-base fasteners should be tightened to the stated torque target during assembly. The neutral cream-and-brown upholstery with black metal detailing suits a modern main bedroom paired with two bedside tables and wall lighting. It is also appropriate for boutique guest rooms, serviced apartments, hotel-style interiors, and compact modern rooms where the open base and slim rail reduce visual weight. Residential developers furnishing multiple bedrooms can use the consistent finish across a coordinated scheme. It is designed for an 1800 x 2000 mm mattress and bedding, with a stated capacity for two adults; the bed frame carries a recommended static load of 400 kg, the deck a distributed support load of 260 kg, and the rail top a load of 30 kg. Procurement planning should account for an unbranded product, model BED-CHF-1800-BLK, supplied as one set across two cartons by reference, with flat-packed delivery and assembly required. The set has a packaged gross weight of 130 kg and a reference assembly time of 40 minutes. Buyers should confirm the support deck or slat option, delivery count, bedding compatibility, and access route before ordering. Protective runner glides should be secured before first use on wood, tile, laminate, or carpet.

Channel-Tufted Upholstered Platform Bed with Floating Rail and Black Metal Base Specifications
