PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1930 × 2438 × 1234 mm
Overall bed dimensions	1930 x 2438 x 1234 mm
Mattress platform opening	1549 x 2032 mm
Individual padded headboard panels	900 x 120 x 850 mm
Side rail dimensions	2438 x 160 x 320 mm
Foot rail dimensions	1930 x 160 x 320 mm
Wood slat quantity	24 slats
Individual slat size	900 x 55 x 18 mm
Slat clear spacing	70 mm
Center support rail size	2032 x 40 x 30 mm
Center support leg height	250 mm
Under-bed clearance	165 mm
Recommended mattress thickness	254 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	363 kg
Recommended user weight	180 kg per person
Net bed weight	75 kg
Slat distributed support	120 kg per slat row
Headboard cushion thickness	60 mm
Foam density target	35 kg/m3
Foam rebound target	35 percent
Seam stitch pitch	8 stitches per 100 mm
Fabric abrasion acceptance	30,000 Martindale cycles
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard facing	Beige woven fabric or faux leather upholstery over padded panels
Headboard padding	Polyurethane foam with soft fiber wrap
Internal headboard panel	18 mm engineered wood board
Perimeter rails	Beige upholstery over engineered-wood rail frames
Side rail structural board	25 mm plywood or composite wood rail
Bed slats	18 mm natural-finish bentwood or plywood slats
Slat holders	Black injection-molded plastic end caps
Longitudinal support rails	30 x 40 mm black powder-coated steel or composite rails
Center support legs	25 x 25 mm black metal square-tube legs
Fastening hardware	M8 steel bolts, washers and barrel nuts
Floor contact pads	Polypropylene or rubber foot pads
Slat Thickness	15 mm bent plywood or solid timber

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	24 wooden slats in two rows provide full-width no-box-spring support
Center support structure	One longitudinal rail with multiple downward legs stiffens the middle of the sleeping area
Rail attachment	Bolt-on side and foot rails attach to the headboard structure with knock-down hardware
Headboard function	Two fixed padded panels provide back support and wall protection; no recline or height adjustment
Storage configuration	No drawers, hydraulic lift, or under-bed storage boxes are present
Box spring requirement	No box spring is required; the mattress rests directly on the wooden slat platform
Floor placement	Freestanding frame rests on discrete support legs without wall mounting
Noise control target	Plastic slat caps and padded rails should limit metal-to-wood rattling under normal movement
Assembly requirement	Headboard, side rails, foot rail, support legs and slat roll require on-site bolted assembly
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton 1 dimensions	2184 x 381 x 340 mm
Carton 2 dimensions	2134 x 330 x 229 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom use	Suited to a queen mattress in a residential master or guest bedroom
Interior style fit	Works with warm neutral, minimalist and contemporary interiors
User profile	Suitable for two adults seeking a soft headboard and a low, direct-mattress platform
Bedding planning	Pair with a 254 mm mattress to keep the padded headboard visible
Furniture coordination	Coordinate with light wood case goods, beige nightstands, curtains and soft area rugs
Space planning	Allow 450 mm minimum beside each rail for bed-making and nightstand access
Hospitality extension	Suitable for serviced apartments and hotel-style guest rooms with residential-grade fabric specifications

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Formaldehyde recommendation	EN 13986 E1 for wood-based panels used in interior furniture
Domestic furniture safety recommendation	EN 12521 for strength, stability and safety requirements of domestic beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600 E1 emission class for engineered-wood panels
Furniture safety recommendation	GB/T 3324 general technical requirements for wooden furniture
Upholstered furniture recommendation	GB/T 31952 for upholstered furniture anti-dumping and durability-related construction checks
Textile safety recommendation	GB 18401 Category C for non-direct-contact upholstery fabric

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600 E1 emission class for engineered-wood panels;
2. Furniture safety recommendation: GB/T 3324 general technical requirements for wooden furniture;
3. Upholstered furniture recommendation: GB/T 31952 for upholstered furniture anti-dumping and durability-related construction checks;
4. Textile safety recommendation: GB 18401 Category C for non-direct-contact upholstery fabric;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-BE-2P-SLAT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-BE-2P-SLAT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-BE-2P-SLATOpen Export Tool

Quick Actions

Post an RFQ

Product Description

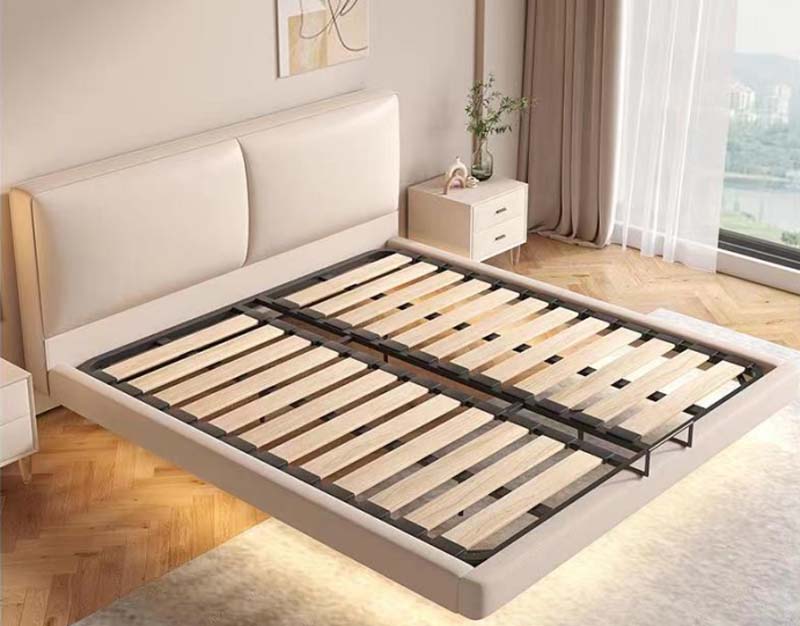

The Beige Upholstered Platform Bed Frame with Two-Panel Padded Headboard offers a calm, modern focal point for residential bedrooms. Its low-profile form is defined by beige upholstered padding, a tall two-panel headboard, and matching upholstered side and foot rails. The fixed headboard panels provide a soft surface for sitting up while also protecting the wall behind the bed. The frame does not recline or adjust in height, and the clean perimeter design has no visible storage mechanism. Overall dimensions are 1930 x 2438 x 1234 mm, with a 1930 x 180 x 1234 mm headboard and a mattress platform opening of 1549 x 2032 mm. Construction pairs an engineered wood frame with beige woven fabric or faux leather upholstery. Each padded headboard panel uses polyurethane foam with a soft fiber wrap over an 18 mm engineered wood board; the cushion thickness is 60 mm, with a 35 kg/m3 foam density target and 35 percent rebound target. Side rails use 25 mm plywood or composite wood frames beneath the upholstery, while the sleeping platform contains 24 natural-finish bentwood or plywood slats. Each slat measures 900 x 55 x 18 mm and rests in black injection-molded plastic end caps. Additional support comes from black powder-coated steel or composite longitudinal rails and 25 x 25 mm black metal square-tube center legs. The slatted system is arranged in two rows and supports a mattress directly, so a box spring is not required. A central longitudinal rail with multiple downward legs reinforces the middle of the sleeping area. Bolt-on side and foot rails connect to the headboard using knock-down hardware, and the freestanding frame stays in place on discrete support legs without wall mounting. There are no drawers, hydraulic lift, or under-bed storage boxes. Total static load capacity is 363 kg, distributed slat support is 120 kg per slat row, and recommended user weight is 180 kg per person. The bed weighs 75 kg net. This model is suited to a queen mattress in a master or guest bedroom, especially in warm neutral, minimalist, or contemporary interiors. It fits two adults seeking a padded headboard and a low platform profile. Pairing it with a 254 mm mattress helps keep the headboard visible, while light wood case pieces, beige nightstands, soft curtains, and area rugs complete the setting. Planning should include 450 mm minimum clearance beside each rail for bed-making and nightstand access. Procurement teams should note that this is an unbranded model, UPB-Q-BE-2P-SLAT, delivered as one set in two cartons. Reference assembly time is 40 minutes per set, and reference packaged gross weight is 130 kg. Confirm the selected upholstery facing, rail material, and delivery packing details before ordering.

Beige Upholstered Platform Bed Frame with Two-Panel Padded Headboard Specifications
