PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1900 × 2250 × 1000 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user capacity	2 adults
Static bed-frame load rating	350 kg
Recommended mattress thickness	240 mm
Mattress minimum thickness	200 mm
Mattress maximum thickness	300 mm
Headboard lean-back static load	120 kg
Platform point-load rating	80 kg per support zone
Bed frame net weight	68 kg
Color availability target	1 standard cream-white color
Warranty target	36 months

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Cream white woven or velvet-like soft fabric over padded panels
Side and foot upholstery	Matching cream white fabric with gathered lower edge
Headboard cushioning	High-resilience polyurethane foam with soft fiber top layer
Cushion foam thickness	80 mm headboard padding
Foam density target	35 kg/m3 headboard foam
Internal frame	Kiln-dried solid timber and engineered timber composite frame
Frame timber section	40 x 60 mm primary support rails
Mattress support base	Plywood board or closely spaced timber slats with center rail
Support board or slat thickness	18 mm plywood or 25 mm timber slats
Feet and floor protection	Low black polymer or powder-coated metal feet with non-marking pads
Joinery hardware	Powder-coated steel corner brackets, bolts and cam connectors
Fabric surface weight target	320 g/m2

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	Fixed queen-size double bed platform for two-adult use
Headboard support	Four vertically segmented padded zones provide backrest and pillow retention
Platform support	Mattress rests directly on a fixed low platform deck or close-slatted support
Under-bed storage	No drawers or lift-up storage compartment are present
Bedding retention	Padded side and foot rails contain the mattress and reduce lateral movement
Assembly method	Knock-down headboard, side rails, foot rail and support deck join with concealed bolts
Floor installation	Freestanding placement on level bedroom flooring with no wall fixing shown
Cleaning access	20 mm under-bed clearance permits light floor cleaning but not storage box access
Mattress retention height	120 mm effective rail containment above deck
Headboard cable management	No integrated power socket, reading light or cable outlet is visible
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Master bedroom	Suits a residential master bedroom where a soft cream bed anchors a calm neutral interior
Boutique hotel guest room	Appropriate for upscale boutique rooms requiring padded headboard comfort and low modern profile
Apartment furnishing package	Suitable for serviced apartments seeking one neutral upholstered bed with no separate box spring
Soft contemporary interior	Pairs with oak-look flooring, plaster tones, arched windows and rounded lighting
Reading in bed	Padded full-width headboard supports seated reading with separate sleeping pillows
Low-ceiling bedroom	Low 240 mm platform base creates a relaxed floor-near profile without a tall storage bulk
Carpeted or wood flooring	Low non-marking feet suit wood, laminate or carpet with load-distribution pads

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture mechanical safety	EN 1725:1998
Bed durability testing	EN 1957:2012
Upholstered furniture safety	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Timber structure safety	GB/T 3324
Upholstered furniture safety	GB/T 36407
Fabric colorfastness	GB/T 3920
Formaldehyde emission	GB 18584
Furniture labeling	GB/T 16799

Standardized tender description text

This product must meet the following technical requirements:
1. Timber structure safety: GB/T 3324;
2. Upholstered furniture safety: GB/T 36407;
3. Fabric colorfastness: GB/T 3920;
4. Formaldehyde emission: GB 18584;
5. Furniture labeling: GB/T 16799;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-CHANNEL-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-CHANNEL-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-CHANNEL-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

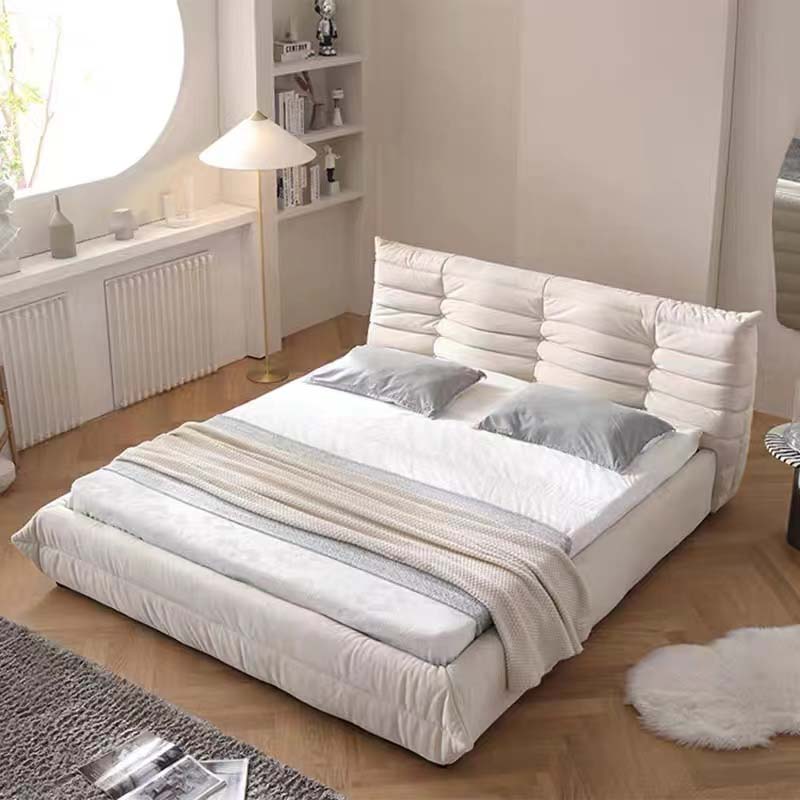

The Cream White Channel-Tufted Upholstered Low-Profile Platform Bed in queen size offers a calm, modern focal point for interiors that favour soft texture and clean horizontal lines. Its full-width padded headboard is divided into four vertically segmented upholstered zones, creating a channel-tufted appearance while providing back support and helping retain sleeping pillows. Matching cream white fabric covers the padded side rails and foot rail, with a gathered lower edge for a tailored, residential look. The low platform and concealed low feet keep the visual profile close to the floor, avoiding the bulk associated with storage beds or traditional foundation systems. The bed combines a kiln-dried solid timber and engineered timber composite frame with a platform support structure. Primary support rails use a 40 by 60 millimetre timber section, while the base is supplied as an 18 millimetre plywood deck or 25 millimetre timber slats set at 80 millimetre spacing, with a centre rail and recommended six support legs. Side rails are 40 millimetres thick. Headboard cushioning consists of high-resilience polyurethane foam with a soft fibre top layer, using 80 millimetres of padding and a 35 kilograms per cubic metre foam density target. Upholstery is a cream white woven or velvet-like soft-touch fabric over padded panels. Designed for fixed queen-size double sleeping, the frame accommodates two adults. The mattress rests directly on the platform deck or close-slatted base, so a separate box spring is not required. The recommended mattress thickness is 240 millimetres, with compatible options from 200 to 300 millimetres. Padded side and foot rails contain the mattress and reduce lateral movement. The frame has a static load rating of 350 kilograms, the platform point-load rating is 80 kilograms per support zone, and the headboard lean-back static load is 120 kilograms. There are no drawers or lift-up storage compartments. The neutral cream finish suits residential master bedrooms, low-ceiling rooms, serviced apartments, and upscale boutique hotel guest rooms, particularly within soft contemporary schemes paired with oak-look flooring, plaster tones, arched windows, or rounded lighting. It is also suitable for reading in bed, supported by the full-width padded headboard. Procurement planning should note the unbranded model UPB-Q-CHANNEL-01, knockdown assembly with concealed bolts, freestanding installation on level flooring, and no shown wall fixing. Reference assembly time is 40 minutes per set. Logistics information lists one set across two cartons, with a packaged gross weight of 130 kilograms and packaging volume of 0.9 cubic metres; purchasers should reconcile the separate dimensional packing note before ordering.

Cream White Channel-Tufted Upholstered Low-Profile Platform Bed, Queen Size Specifications
