PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2450 × 2280 × 1080 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user capacity	2 adults
Bed frame static load	350 kg
Per-side shelf load	15 kg
Lower round shelf load	8 kg
Net weight	78 kg
Slat support count	14 slats
Recommended mattress thickness	280 mm
Floor loading concentration	4.2 kPa
Warranty	36 months
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Woven polyester fabric with visible fine uniform weave
Headboard padding	High-resilience polyurethane foam over a shaped timber frame
Side rail padding	Foam-padded upholstered rail with concealed structural board
Internal support frame	Kiln-dried timber and structural plywood construction
Mattress support	Plywood or laminated bentwood slats on central support rail
Exposed legs	Gold-toned powder-coated or plated steel tube, 20 mm diameter
Left round tabletop	Dark wood-based board with matte veneer or laminate surface
Right shelf surface	Light oak-look wood-composite board with matte finish
Shelf support posts	Gold-toned metal tubular posts matching the bed legs
Panel substrate	18 mm engineered wood board for upholstered panel cores
Floor contact feet	Small non-marking polymer or rubber foot caps
Seam construction	Tailored stitched panel joins with concealed zippered upholstery closure

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	King-size platform accepts an 1800 x 2000 mm mattress
Headboard support	Four separate padded back sections provide shoulder and head support
Integrated bedside storage	Left round table and right rectangular shelf provide two independent bedside surfaces
Two-tier left table	Upper tabletop holds bedside objects while a lower circular shelf provides display storage
Lamp placement zone	Right shelf accommodates a table lamp with vertical clearance above the platform
Low-profile entry	320 mm padded rail and 520 mm sleeping surface allow side access without a footboard
Under-bed ventilation	120 mm open gap permits airflow and robot-cleaner access below the rails
Floor protection	Small capped feet distribute point loads and reduce floor scratching
Assembly method	Knockdown headboard wings, side rails, slats, legs, and shelves join with bolts and brackets
Mattress retention	Upholstered side rails surround the mattress perimeter without a tall footboard
Cleaning access	Open slim-leg base allows access beneath the frame while excluding bulky storage
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Designed for a spacious modern bedroom where a soft low bed and integrated bedside surfaces reduce separate furniture
Hotel guest room	Suitable for boutique hotel king rooms because shelves support lamps, phones, and personal items on both sides
Residential suite	Fits neutral warm, beige, greige, or contemporary interiors with soft textiles and gold metal accents
Compact luxury layout	Useful where freestanding nightstands are difficult to place because both shelves extend from the bed composition
Couples use	King-width sleeping platform with two pillows and two independent bedside zones supports two occupants
Soft-contract furnishing	Appropriate for serviced apartments seeking a residential appearance with durable upholstery and replaceable bedding
Low-visual-height room	Low rail and rounded back create a calm profile without a dominating tall footboard

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic bedding dimensions	EN 1334 provides mattress-size terminology for the 1800 x 2000 mm king-size platform
Upholstered furniture safety	EN 1725 applies safety and test methods for domestic beds
Furniture mechanical testing	EN 12520 should be specified for strength, durability, and stability of household beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel safety	GB/T 39600 formaldehyde emission classification applies to plywood and fiberboard components
Furniture mechanical safety	GB/T 3324 applies to wooden furniture dimensions, materials, and structural inspection
Upholstered furniture durability	GB/T 44514 should be specified for soft-cover furniture structural and covering performance
Furniture hardware fasteners	GB/T 3325 should be specified for strength of beds and mating hardware

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel safety: GB/T 39600 formaldehyde emission classification applies to plywood and fiberboard components;
2. Furniture mechanical safety: GB/T 3324 applies to wooden furniture dimensions, materials, and structural inspection;
3. Upholstered furniture durability: GB/T 44514 should be specified for soft-cover furniture structural and covering performance;
4. Furniture hardware fasteners: GB/T 3325 should be specified for strength of beds and mating hardware;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UP-CRV-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UP-CRV-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UP-CRV-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

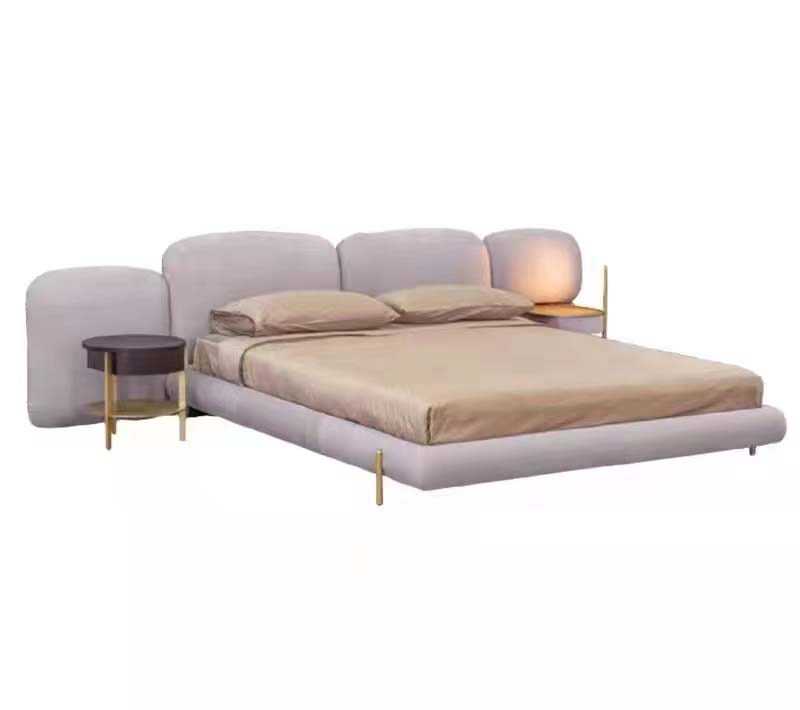

The Upholstered Curved Platform Bed with Integrated Side Tables is an unbranded king-size bed designed for modern bedrooms that benefit from a soft, low-profile sleeping centerpiece and reduced separate furniture. Model BED-UP-CRV-1800 combines a curved upholstered form, padded headboard, slim gold-toned metal legs, and two differently styled bedside surfaces built into the bed composition. Its contemporary appearance suits neutral warm, beige, greige, and other soft-textured interior schemes. Visually, the bed is wrapped in woven polyester fabric with a visible fine, uniform weave. The headboard uses four separate padded sections over a shaped timber frame, with high-resilience polyurethane foam providing shoulder and head support. The side rails are foam-padded around concealed structural boards, producing a softened edge rather than an exposed hard frame. Gold-toned powder-coated or plated steel tube legs, 20 mm in diameter, are matched by gold-toned tubular posts supporting the shelves. The left bedside table has a dark matte wood-based round top with a lower circular shelf, while the right rectangular shelf uses a light oak-look wood-composite surface with a matte finish. Construction is based on kiln-dried timber and structural plywood, with 14 plywood or laminated bentwood slats set on a central support rail. The slat spacing is 80 mm, the side rail thickness is 40 mm, and six center support legs are recommended. The platform accepts an 1800 x 2000 mm mattress, with a recommended mattress thickness of 280 mm. The padded rail is 320 mm high, and the sleeping surface is 520 mm high. There is no footboard, allowing easy side access, while the 120 mm open gap below the rails supports ventilation and robot-cleaner access. The integrated surfaces provide distinct functions for two occupants. The left two-tier round table holds bedside objects above and display items below; the upper surface is rated for 15 kg and the lower round shelf for 8 kg. The right rectangular shelf offers a separate bedside zone with vertical clearance for a table lamp. The bed is intended for two adults, and the frame has a static load rating of 350 kg. Net weight is 78 kg. Suitable settings include spacious residential primary bedrooms, couples’ suites, compact luxury layouts where freestanding nightstands are hard to place, boutique hotel king rooms, serviced apartments, and other soft-contract interiors. Buyers should note the unbranded supply, fixed king-size mattress requirement, independent load limits, and need for coordinated placement because the shelves are part of the bed. Logistics reference one set across two cartons, 130 kg packaged gross weight, 0.9 cubic meters packaging volume, and 40 minutes assembly time per set.

Upholstered Curved Platform Bed with Integrated Side Tables Specifications
