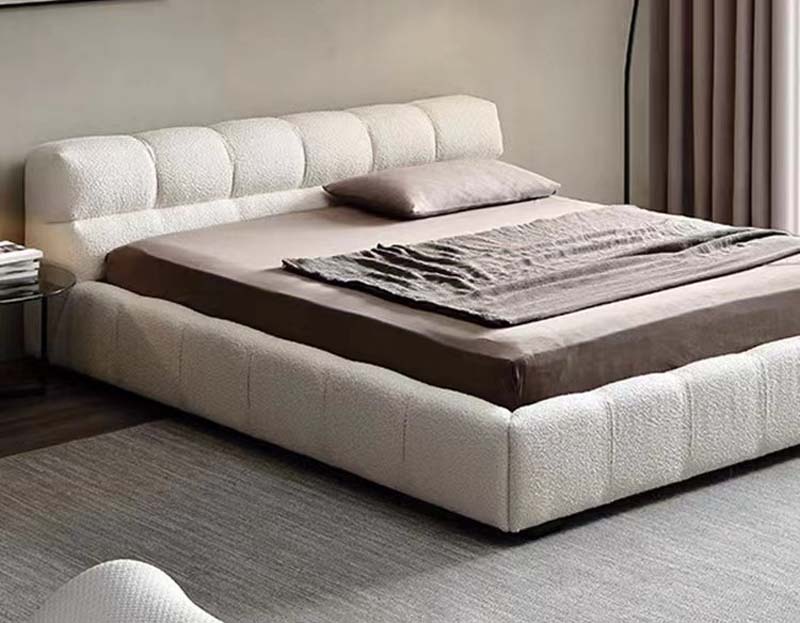

Product supplierCream Textured Fabric Channel-Tufted Upholstered Platform Bed, Cream textured looped woven fabric with bouclé-style appearance
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1690 × 2285 × 875 mm | |
|---|---|---|
| Overall queen-size footprint | 1690 x 2285 x 875 mm | |
| Mattress support area | 1530 x 2030 mm | |
| Headboard width | 1690 mm | |
| Headboard segment height | 620 mm | |
| Headboard thickness | 180 mm | |
| Side rail width | 220 mm | |
| Foot rail height | 420 mm | |
| Rail panel depth | 160 mm | |
| Recommended mattress thickness | 300 mm | |
| Sleeping surface height | 520 mm | |
| Under-bed clearance | 80 mm | |
| Slat support width | 1530 mm | |
| Slat support length | 2030 mm | |
| Slat count | 14 slats | |
| Slat spacing | 70 mm clear gap | |
| Center support beam | 1 longitudinal beam with 4 support legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user load | 360 kg total static load | |
|---|---|---|
| Per-slat distributed load | 35 kg | |
| Center support leg load | 60 kg each per leg | |
| Mattress weight allowance | 55 kg | |
| Product net weight | 58 kg | |
| Color option count | 1 standard cream color | |
| Residential warranty target | 24 months | |
| Fabric seam slippage acceptance target | 6 mm maximum under 180 N sewn-seam test | |
| Foam compression set acceptance target | 5 percent maximum after 22 hours at 70 degrees Celsius | |
| Recommended cyclic mattress-support test | 20,000 loading cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Cream textured looped woven fabric with bouclé-style appearance | |
|---|---|---|
| Headboard padding | 35 mm polyurethane foam under soft woven fabric | |
| Side and foot rail padding | 30 mm polyurethane foam wrapped over rigid rail panels | |
| Internal support frame | Pine or eucalyptus solid-wood rails with plywood or LVL structural panels | |
| Slat material | 90 x 20 mm laminated veneer lumber or bent wood slats | |
| Center beam | 60 x 40 mm engineered-wood or rectangular steel beam | |
| Support feet | 40 mm dark stained wood or polymer-composite low feet | |
| Panel substrate | 12 mm engineered-wood board behind upholstered rail panels | |
| Thread and seams | Polyester sewing thread with 70 mm vertical channel seam pitch | |
| Back of headboard | Non-woven fabric dust cover over framed backing | |
| Hardware | Zinc-plated steel bolts, corner brackets and barrel nuts | |
| Foot finish | Matte dark brown or black protective finish |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mattress support system | 14 wood slats rest on side rails and a central beam, with no box spring required. | |
|---|---|---|
| Mattress retention | Recessed upholstered side and foot rails hold the mattress inside the platform perimeter. | |
| Center load control | One longitudinal beam and four support legs reduce slat deflection across the queen-width span. | |
| Headboard function | Six independently padded channel segments provide a soft backrest and wall-protecting padded surface. | |
| Wrap-around surround | Continuous upholstered side and foot rails soften exposed bed edges and reduce mattress lateral movement. | |
| Low-access base | 80 mm floor clearance allows slim under-bed access while retaining a low-profile appearance. | |
| Knock-down assembly | Headboard, side rails, foot rail, slats and hardware assemble with bolted corner connectors. | |
| Floor protection | Small raised feet isolate upholstery from floor moisture and permit limited cleaning access. | |
| Bed orientation | Headboard is intended for wall placement; the open foot end supports normal front entry. | |
| Movable components | No folding, lift-up storage, reclining or height-adjustment mechanism is visible on the bed. | |
| Connector requirement | Four corner brackets and eight M8 x 80 mm bolts provide the principal rail-to-headboard/foot joints. | |
| Maintenance access | Removable slats permit underside inspection without dismantling the upholstered outer frame. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Headboard and rail carton | 1720 x 360 x 240 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Main bedroom | Suits a queen-size residential bedroom with a soft, low-profile cream upholstered focal bed. | |
|---|---|---|
| Hotel or serviced apartment | Durable padded surround and no-box-spring platform simplify furnishing for long-stay rooms. | |
| Neutral modern interior | Works with warm gray walls, wood flooring, soft rugs and layered bedding shown in the scene. | |
| Adult two-person use | Queen platform width and central support are planned for two-adult residential occupancy. | |
| Low-ceiling room | Low 875 mm headboard and platform profile reduce visual mass in compact bedrooms. | |
| Upholstered-edge safety setting | Soft side and foot rails are suitable where users want padded edges around the sleeping area. | |
| Procurement bundle | Pair with two nightstands, mattress, rug and protective floor glides for a complete bedroom package. | |
| Non-storage configuration | Specify where under-bed lift storage is not required and a clean upholstered platform is preferred. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic bedding safety, strength and durability requirements for bed frames. | |
|---|---|---|
| EN 1129-1:1995 | Domestic bedding dimensions and tolerances for beds and mattresses. | |
| EN 716-1:2017 | Not directly applicable to adult beds, but useful if a child-size variant is ordered. | |
| EN 1021-1:2014 | Upholstered furniture ignitability test with smouldering cigarette, suitable for fabric/foam risk review. | |
| EN 16137:2013 | Furniture bed and mattress test terminology and performance alignment reference. |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame strength, dimensions and workmanship. | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable if steel center beams or brackets are supplied. | |
| GB/T 3326-2016 | Furniture main dimension tests, applicable to verifying bed and mattress interface dimensions. | |
| GB 18584-2001 | Indoor decorative materials limit formaldehyde emission from wood-based furniture components. | |
| GB/T 10357.6-2013 | Furniture mechanical test for beds, applicable to static load and stability acceptance. | |
| GB/T 17657-2022 | Wood-based panel physical and chemical test methods, applicable to substrate verification. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame strength, dimensions and workmanship.; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if steel center beams or brackets are supplied.; 3. GB/T 3326-2016: Furniture main dimension tests, applicable to verifying bed and mattress interface dimensions.; 4. GB 18584-2001: Indoor decorative materials limit formaldehyde emission from wood-based furniture components.; 5. GB/T 10357.6-2013: Furniture mechanical test for beds, applicable to static load and stability acceptance.; 6. GB/T 17657-2022: Wood-based panel physical and chemical test methods, applicable to substrate verification.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
