PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2040 × 2250 × 1050 mm
Mattress fit dimensions	1800 x 2000 mm
Headboard height (floor to top)	1050 mm
Footboard height (floor to top)	400 mm
Sleeping surface height (floor to slat top)	350 mm
Underbed clearance	260 mm
Headboard panel thickness	36 mm
Footboard panel thickness	30 mm
Wood slat width	70 mm
Slat spacing	89 mm
Bed leg height	100 mm
Center support beam height	80 mm
Recommended mattress thickness	250 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	272 kg
Recommended user weight per sleeper	136 kg
Product net weight	59 kg
Finish abrasion resistance	1000 cycles
Warranty period	30 days
Assembly time	90 minutes
Fastener torque rating	15 Nm
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard panel	Engineered wood core with walnut wood veneer, framed inlay detail
Footboard panel	Solid rubberwood frame with walnut veneer surface, smooth matte finish
Bed side rails	Solid rubberwood with walnut veneer, 30mm thickness for structural rigidity
Support slats	Solid birch wood slats, 70mm width, spaced for no-box-spring use
Center support beam	LVL engineered wood beam with metal support legs
Bed legs	Solid rubberwood tapered legs, matte walnut finish matching frame
Surface finish	Low-VOC matte polyurethane clear coat, scratch-resistant wipe-clean surface
Hardware components	Zinc-plated steel confirmat screws, bed rail brackets, and barrel nuts
Nightstand tops (matching adjacent units)	Walnut veneer over MDF core, 18mm thickness with matching edge banding
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system functionality	Wood slat platform supports mattress directly, no box spring required
Structural reinforcement	Full-length center support beam with 4 evenly spaced metal support legs
Assembly structure	Knock-down flat pack assembly with pre-drilled holes and included hex key
Mattress fit compatibility	Accommodates all standard 1800x2000mm spring, memory foam, and latex mattresses
Edge support performance	Solid wood side rails provide 30mm wide edge support to prevent perimeter sag
Underbed storage access	260mm underbed clearance allows low-profile storage bins to slide under frame
Headboard mounting	Fixed panel headboard with 4 heavy-duty mounting brackets to side rails
Surface maintenance	Matte finish allows spot cleaning with soft dry or slightly damp cloth
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master bedrooms, matching modern walnut or mid-century interior designs
Recommended user group	Adult couples seeking a low-profile solid wood bed without bulky upholstery
Recommended configuration	Pair with matching 1-drawer walnut nightstands for a coordinated bedroom set
Style compatibility	Works with minimalist, modern, new Chinese, and mid-century modern interior decor
Bedding compatibility	Pairs with 250mm thick mattresses and standard king size linens, duvets, and bed runners
Installation note	Suitable for placement against flat bedroom walls with minimum 2100mm clearance along wall length

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Furniture - Beds and mattresses - Safety requirements and test methods, applicable for structural safety
EN 12520:2015	Furniture - Strength, durability and safety - Requirements for domestic seating, referenced for edge stability
EN 312:2010	Particleboards - Specifications, applicable for engineered wood panel performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional accuracy and finish quality
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture
GB/T 10357.6-2013	Test of mechanical properties of furniture - strength and durability of beds

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional accuracy and finish quality;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture;
3. GB/T 10357.6-2013: Test of mechanical properties of furniture - strength and durability of beds;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PB-WL-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PB-WL-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PB-WL-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

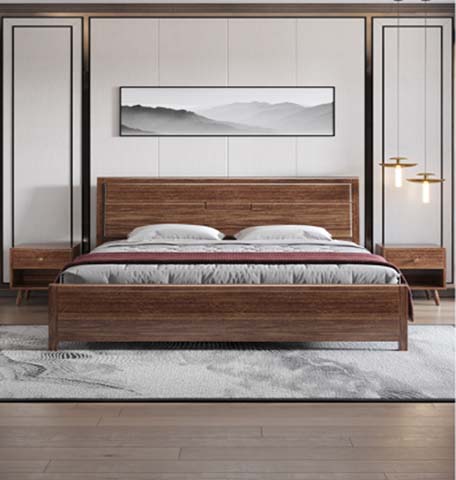

This modern wooden platform bed presents a cohesive, low-profile silhouette defined by consistent walnut-toned finishes and clean, minimalist panel detailing. The fixed headboard sits as a structured focal point paired with a proportionally lower matching footboard, connected by straight side rails and tapered solid wood legs to create a streamlined, uncluttered visual presence that balances visual weight across the frame.
The bed’s construction blends solid wood and engineered wood components for balanced performance. The headboard features an engineered wood core with walnut wood veneer and framed inlay detail, while the footboard uses a solid rubberwood frame topped with walnut veneer and a smooth matte surface. Side rails are crafted from solid rubberwood with walnut veneer, paired with solid birch wood support slats sized and spaced to eliminate the need for a box spring. A full-length LVL engineered wood center beam with metal support legs adds structural reinforcement, and zinc-plated steel hardware connects all components. The entire surface is finished with a low-VOC matte polyurethane clear coat that creates a scratch-resistant, wipe-clean surface.
Functionally, the wood slat platform supports mattresses directly, accommodating all standard 1800x2000mm spring, memory foam, and latex mattresses. Solid wood side rails deliver consistent edge support to reduce perimeter sag, while the underbed clearance provides space for low-profile storage bins to slide neatly beneath the frame. The bed arrives as a knock-down flat pack with pre-drilled holes and an included hex key for straightforward assembly.
This platform bed is ideally suited for residential master bedrooms, complementing minimalist, modern, new Chinese, and mid-century modern interior schemes. It is designed for adult couples seeking a streamlined solid wood bed free of bulky upholstery, and can be paired with matching walnut nightstands for a fully coordinated bedroom set. It works best placed against flat bedroom walls with sufficient wall length clearance, and pairs seamlessly with standard king size linens and appropriately thick mattresses.
Procurement teams and residential buyers should note the product ships in multiple cartons per set, plan for standard assembly lead time, and review the warranty terms prior to purchase. Fastener installation should follow specified torque guidance for long-term structural stability, and buyers can coordinate matching adjacent nightstand units to maintain consistent finish and design language across the bedroom space.

Walnut Finish Modern Wooden Platform Bed with Matching Headboard and Footboard Specifications
