Automatic mm / inch conversion · Core engineering specifications
| Overall bed footprint | 1890 x 2230 x 1150 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Recommended total static load | 350 kg | |
|---|---|---|
| Per-person load rating | 120 kg | |
| Per-drawer distributed load | 15 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Mattress platform distributed load | 250 kg | |
| Product net weight | 118 kg | |
| Maximum mattress thickness | 300 mm | |
| Drawer count and storage capacity | 3 drawers, 193 L total | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Headboard facing | Taupe upholstery with visible stitched horizontal separation | |
|---|---|---|
| Headboard padding | High-resilience polyurethane foam over a hard back panel | |
| Headboard substrate | 18 mm engineered-wood structural panel | |
| Bed-base upholstery | Taupe padded or wrapped exterior on side and foot rails | |
| Drawer fronts | Taupe painted or laminate wood-composite panel with flush metal label-pull hardware | |
| Drawer interiors | Light natural wood-veneer or wood-grain engineered board | |
| Platform support | 18 mm engineered-wood board or slatted deck on internal support rails | |
| Drawer slides | Side-mounted metal telescopic slides | |
| Drawer pull hardware | Rectangular recessed metal pulls with silver finish | |
| Frame support blocks | Dark low-profile support feet or protective floor glides | |
| Internal frame reinforcement | Solid-wood or engineered-wood battens at corners and center rail | |
| Stitching detail | Fine seam dividing upper and lower headboard cushion zones |
Adjustment / rotation / tilt / mobility / storage features

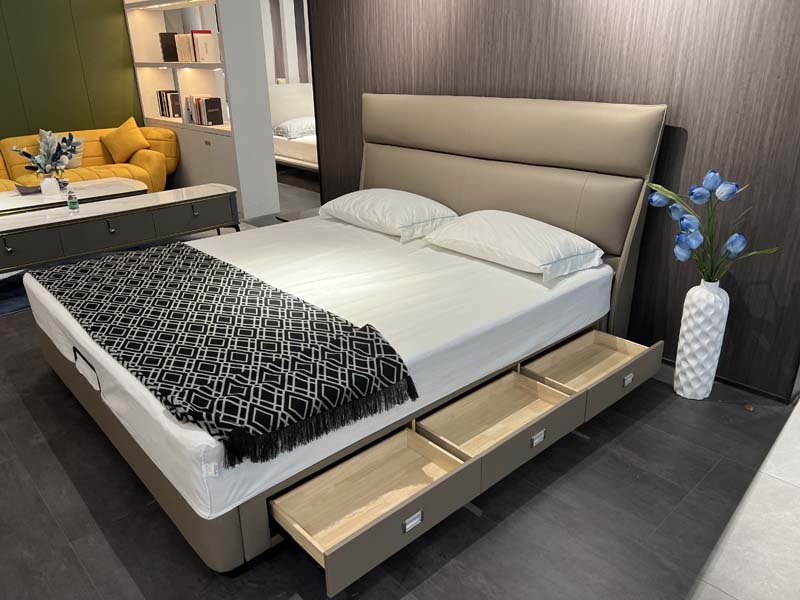

| Three-drawer under-bed storage | Three side-access drawers pull independently from one long side for linens and seasonal clothing. | |
|---|---|---|
| Full-pull drawer operation | Each drawer extends 720 mm, giving access to the rear 760 mm storage area without lifting the mattress. | |
| Soft-close slide upgrade target | Specify side-mounted slides with damping closure and 15 kg per-drawer load for quiet residential use. | |
| Fixed platform sleeping surface | Non-lifting platform supports a standard mattress directly and leaves drawer space unobstructed. | |
| Padded headboard support | Two-zone upholstered headboard provides seated back support and a soft protective wall buffer. | |
| Flush integrated drawer styling | Drawer fronts align with the bed base and use recessed pulls to preserve the low-profile exterior. | |
| Single-side access layout | Storage is designed for placement with the drawer side clear and the headboard against a wall. | |
| Stable floor-standing installation | Low feet or glides support the perimeter frame; wall-restrained placement is recommended for the tall headboard. | |
| Bedding retention | Upholstered side rails enclose the mattress edge and reduce lateral movement on the platform. | |
| Assembly method | Bolt-together headboard, side rails, foot rail, platform, and drawer modules using cam or connector hardware. | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Master bedroom | Suited to an 1800 mm-wide king mattress with integrated linen storage for residential rooms. | |
|---|---|---|
| Compact residential suite | Three drawers replace a separate dresser when floor space beside the bed is limited. | |
| Hotel or serviced-apartment bedroom | Neutral taupe upholstery and concealed storage fit long-stay room layouts. | |
| Showroom bedroom display | Display model confirms low-profile storage, padded headboard, and flush drawer aesthetics. | |
| Modern interior setting | Pairs with dark wood paneling, neutral bedding, and matte case goods in contemporary schemes. | |
| Access requirement | Place the drawer side with at least 800 mm clearance for full extension and user standing space. | |
| User profile | Designed for two adults seeking hidden storage without a hydraulic lift-up mattress mechanism. |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
