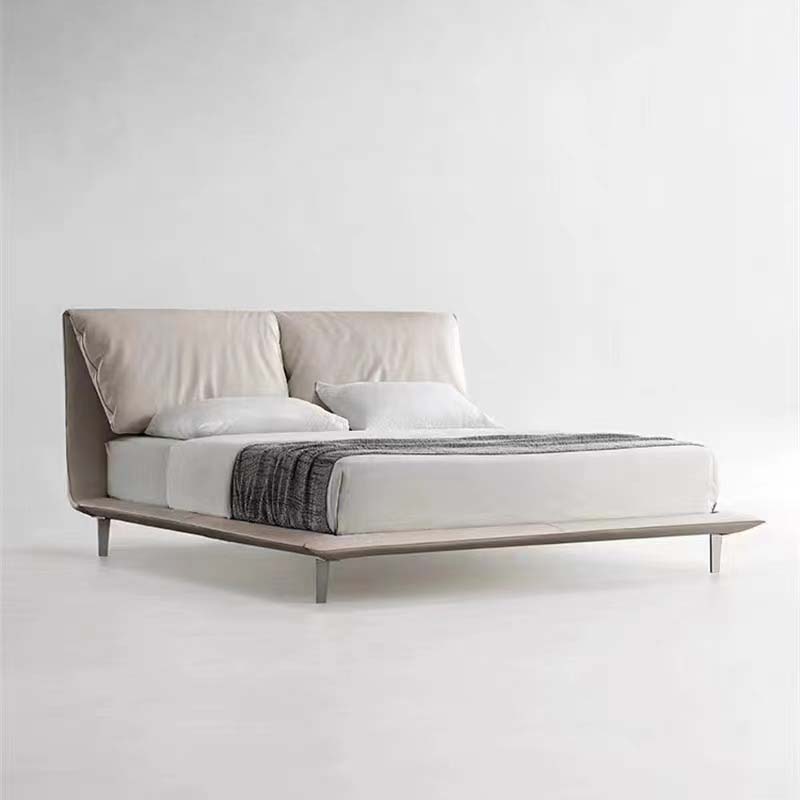

Product supplierBeige Upholstered Low-Profile Platform Bed with Two Pillow Headboard Panels, Beige woven fabric or leather-look textile over padded panels
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1634 × 2305 × 755 mm | |
|---|---|---|
| Compatible mattress size | 1524 x 2032 mm, standard queen | |
| Headboard cushion panel size | 760 x 140 x 620 mm each, two panels | |
| Platform support width | 1580 mm inside the upholstered rail | |
| Platform support length | 2130 mm inside the rail | |
| Side rail thickness | 100 mm vertical by 70 mm horizontal | |
| Foot rail height | 220 mm above floor | |
| Slat dimensions | 1540 x 70 x 18 mm, engineered wood slats | |
| Slat spacing | 75 mm clear gap between adjacent slats | |
| Metal leg dimensions | 30 mm diameter and 180 mm exposed height | |
| Under-bed clearance | 130 mm to underside of rail | |
| Sleeping surface height | 430 mm with a 254 mm mattress | |
| Recommended mattress thickness | 254 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 41.5 kg | |
|---|---|---|
| Total static load capacity | 300 kg | |
| Mattress weight allowance | 60 kg | |
| Occupant capacity | 2 adults | |
| Slat count | 14 slats | |
| Center support legs | 2 center legs plus 4 corner legs | |
| Single-slat static load | 45 kg distributed point load | |
| Upholstery seam slippage acceptance | 6 mm maximum under seam-strength acceptance testing | |
| Foam compression set acceptance | 4 percent maximum after 40 percent compression aging | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Beige woven fabric or leather-look textile over padded panels | |
|---|---|---|
| Headboard cushion filling | 45 kg/m3 polyurethane foam with fiber wrapping | |
| Headboard structural board | 18 mm engineered wood backing board behind each cushion | |
| Platform side rails | Plywood or MDF rail assembly upholstered in matching beige material | |
| Support slats | 18 mm bent plywood or laminated engineered wood slats | |
| Support legs | 30 mm powder-coated steel cylindrical legs with floor glides | |
| Fasteners | M8 black-oxide steel bed connector bolts and barrel nuts | |
| Rail corner blocks | 25 mm hardwood or plywood reinforcement blocks at each rail joint | |
| Slat holders | Molded PP or nylon end cups attached to side rails | |
| Base finish | Matte beige upholstery with satin silver-gray metal legs | |
| Floor contact | Non-marking polyethylene glides on each leg | |
| Slat Thickness | 15 mm bent plywood or solid timber |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mattress support | Direct-on-slat platform support eliminates a box spring | |
|---|---|---|
| Headboard cushion use | Two separate soft panels provide upright back support for reading or sitting in bed | |
| Cushion removal | Removable panels attach to the headboard by hook-and-loop strips | |
| Platform edge retention | Low upholstered side and foot rails contain the mattress while keeping an open modern profile | |
| Floor support | Four corner legs and two hidden center supports distribute static and dynamic loads | |
| Under-bed access | 130 mm clearance permits flat cleaning tools and low-profile under-bed storage | |
| Knock-down assembly | Headboard, side rails, foot rail, slats, and legs ship separated and join with hardware | |
| Static bed configuration | No motorized recline, lift, storage hinge, or adjustable-base mechanism is present | |
| Floor protection | Replaceable polymer glides reduce scratching and allow minor leveling adjustment | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 47.0 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary bedroom | Suits a modern queen-bed room where a low frame and soft padded headboard are required | |
|---|---|---|
| Minimalist interior | Neutral beige frame and thin metal legs fit light-toned contemporary or Scandinavian interiors | |
| Hotel guest room | Suitable for boutique hotel rooms needing platform support without box springs | |
| Apartment furnishing | Low packaging complexity and knock-down construction suit serviced apartments and rental fit-outs | |
| Reading in bed | Two soft back panels provide shoulder and upper-back support when sitting upright | |
| Low-profile bedding design | Pairs with mattresses up to 254 mm thick while retaining a low external bed appearance |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Household bed safety | EN 1725:1998 safety, strength, and durability requirements for beds | |
|---|---|---|
| Formaldehyde panels | EN 13986:2004 wood-based panels for building use, E1 formaldehyde class | |
| Furniture stability | EN 12521:2015 strength, durability, and safety for domestic seating-related furniture structures |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel emission | GB/T 39600E1 limit for formaldehyde emission from platform boards | |
|---|---|---|
| Furniture mechanical safety | GB/T 3324 general technical requirements for wooden furniture | |
| Upholstered furniture safety | GB 17927durability and safety requirements for upholstered furniture | |
| Furniture hardware tests | GB/T 10357.6strength and durability test for single beds |
Standardized tender description text
This product must meet the following technical requirements: 1. Wood-based panel emission: GB/T 39600E1 limit for formaldehyde emission from platform boards; 2. Furniture mechanical safety: GB/T 3324 general technical requirements for wooden furniture; 3. Upholstered furniture safety: GB 17927durability and safety requirements for upholstered furniture; 4. Furniture hardware tests: GB/T 10357.6strength and durability test for single beds; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
