PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1950 × 2200 × 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	78 kg
Static load capacity	500 kg
Recommended occupant capacity	2 adults
Mattress weight capacity	70 kg
Slat system load rating	350 kg
Recommended mattress thickness	200 mm
Support foot quantity	6 feet
Edge seating load rating	120 kg
Warranty period	3 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Padded soft upholstery in warm gray fabric or leather-look material with two split cushion panels
Side and foot rail upholstery	Continuous warm gray upholstered covering over engineered-wood rails with stitched corner seams
Internal support frame	Engineered-wood or solid-wood bed rail frame with a target member thickness of 28 mm
Center support beam	Steel or hardwood center beam with a target section of 40 x 60 mm
Slat base	Horizontal bentwood or plywood slats with target thickness of 12 mm and spacing of 70 mm
Support feet	Dark matte metal or hard plastic low-profile feet, 20 mm high and 30 mm in diameter
Headboard padding	High-resilience polyurethane foam with target thickness of 60 mm and density of 30 kg/m3
Rail padding	Polyurethane foam or upholstery wadding with target thickness of 15 mm over the timber rail
Corner joinery	Reinforced corner brackets with target steel plate thickness of 2 mm and bolt diameter of 8 mm
Surface finish	Soft-touch matte gray upholstery with visible edge stitching and no exposed hard trim
Floor protection	Non-marking pads under each dark support foot
Color availability	1 visible warm gray color option

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	Queen-size platform designed for two adults on a 1800 x 2000 mm mattress
Headboard support	Two vertically aligned padded panels provide backrest support when sitting up and conceal wall contact
Mattress retention	Raised upholstered side and foot rails surround the mattress to limit lateral movement
Bed-base ventilation	Slatted platform allows air circulation below the mattress with 70 mm target slat spacing
Storage profile	20 mm ground clearance means the bed is not designed for under-bed storage boxes
Assembly method	Knockdown headboard, side rails, foot rail, slat base and feet connect by bolts and corner brackets
Center load support	Longitudinal center beam with intermediate support foot reduces slat span and mattress sag
Wall placement	Straight padded headboard is designed for placement against a flat wall
Floor adaptation	Six independent feet distribute load and permit minor leveling on wood, tile or carpet
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suits a residential main bedroom where a queen bed, soft gray headboard and low platform create a calm focal point
Hotel guest room	Suitable for boutique hotel rooms requiring a padded headboard and compact low foot end for easier bed making
Serviced apartment	Fits long-stay apartments supplied with an 1800 x 2000 mm mattress and limited under-bed storage requirements
Neutral interior schemes	Pairs with beige, greige, taupe, oak or light-stone interiors because the frame is a muted warm gray
Compact room layout	Appropriate where under-bed storage is not required and visual height should remain low
Pairing configuration	Can be coordinated with compact nightstands and a vanity table because the headboard finish is plain and non-reflective

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic bed safety	EN 1725:1998
Upholstered furniture flame behavior	EN 1021:2014 and EN 1021:2014
Formaldehyde emission	EN 13986:2004+A1:2015

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional and safety review	GB/T 3324
Upholstered furniture safety	GB/T 36612
Formaldehyde emission	GB 18580
Textile safety	GB 18401Class C

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional and safety review: GB/T 3324;
2. Upholstered furniture safety: GB/T 36612;
3. Formaldehyde emission: GB 18580;
4. Textile safety: GB 18401Class C;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-QN-LOW-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-QN-LOW-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-QN-LOW-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

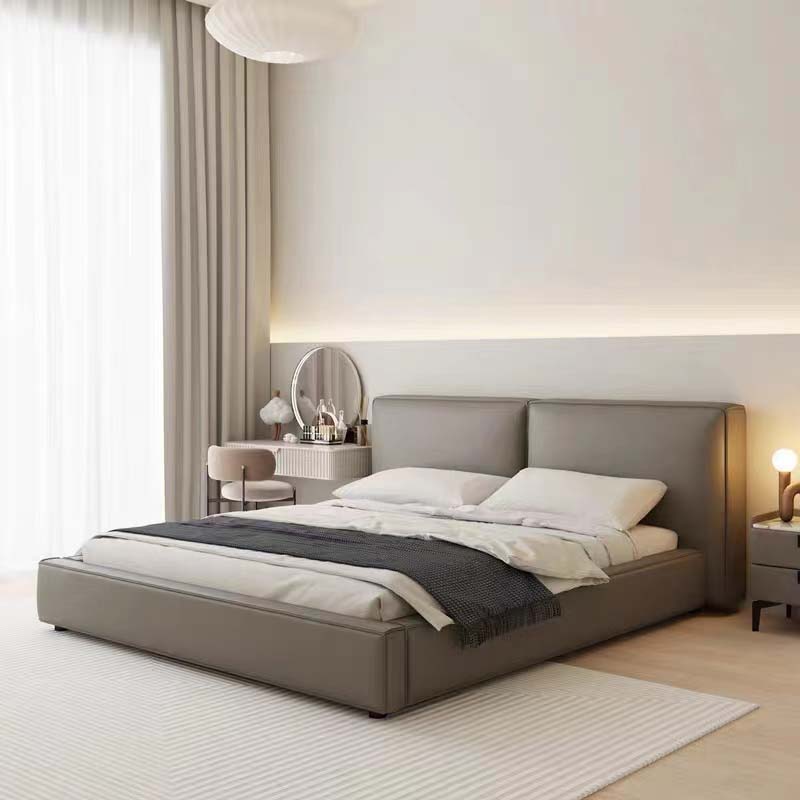

The Upholstered Low-Profile Queen Bed is a modern platform bed with a calm, minimalist presence. Its padded headboard is divided into two vertically aligned cushion panels, while continuous warm gray upholstery covers the side and foot rails. Stitched corner seams and an enclosed frame give the bed a tailored, streamlined appearance. The low foot end and muted finish suit neutral interiors based on beige, greige, taupe, oak, or light-stone palettes, and the plain, non-reflective headboard coordinates naturally with compact nightstands and a vanity table. Construction combines upholstered fabric or leather-look surfaces with an engineered-wood support structure. The rails are cushioned with foam or wadding, and the headboard uses high-resilience polyurethane foam. Inside, the frame is built with timber rails, reinforced corner brackets and bolts, a longitudinal steel or hardwood center beam, and horizontal bentwood or plywood slats. Six low-profile support feet in dark matte metal or hard plastic elevate the frame, while the center beam and intermediate support reduce individual slat span. The slatted base also permits air circulation beneath the mattress. The queen-size sleeping configuration is designed for two adults and an 1800 by 2000 mm mattress, with a recommended mattress thickness of 200 mm. Raised upholstered side and foot rails surround the mattress to limit lateral movement. The split padded headboard provides support when sitting up and helps conceal wall contact. Its 20 mm ground clearance creates a deliberately low visual profile but is not intended for under-bed storage boxes. This bed is well suited to a residential main bedroom where a soft gray focal point and low platform are preferred. It is also appropriate for boutique hotel guest rooms, where the padded headboard and compact foot end support comfortable seating and easier bed making, as well as serviced apartments with limited under-bed storage needs. Procurement teams should note that the product is unbranded, model BED-UPH-QN-LOW-1800, and supplied as a knockdown assembly with bolted corner connections. The stated static load capacity is 500 kg, the slat system load rating is 350 kg, and the recommended mattress weight is 70 kg. Planning should allow time for assembly, and buyers should confirm mattress dimensions, upholstery option, support-foot material, and final packaging details for each shipment.

Upholstered Low-Profile Queen Bed Specifications
