Automatic mm / inch conversion · Core engineering specifications
| Side Rail Thickness | 40 mm | |
|---|---|---|
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Recommended static bed load | 350 kg | |
|---|---|---|
| Mattress and bedding weight capacity | 80 kg | |
| Occupant capacity | 2 adults | |
| Slat system support | 24 slats | |
| Single-slat distributed load | 35 kg | |
| Frame net weight | 78 kg | |
| Center support legs | 3 legs | |
| Headboard lateral push resistance | 90 kg static side load | |
| Durability acceptance target | 10000 simulated loading cycles | |
| Bed Static Load Reference | 400 kg |
Core acceptance fields · Panels / hardware / frame / upholstery

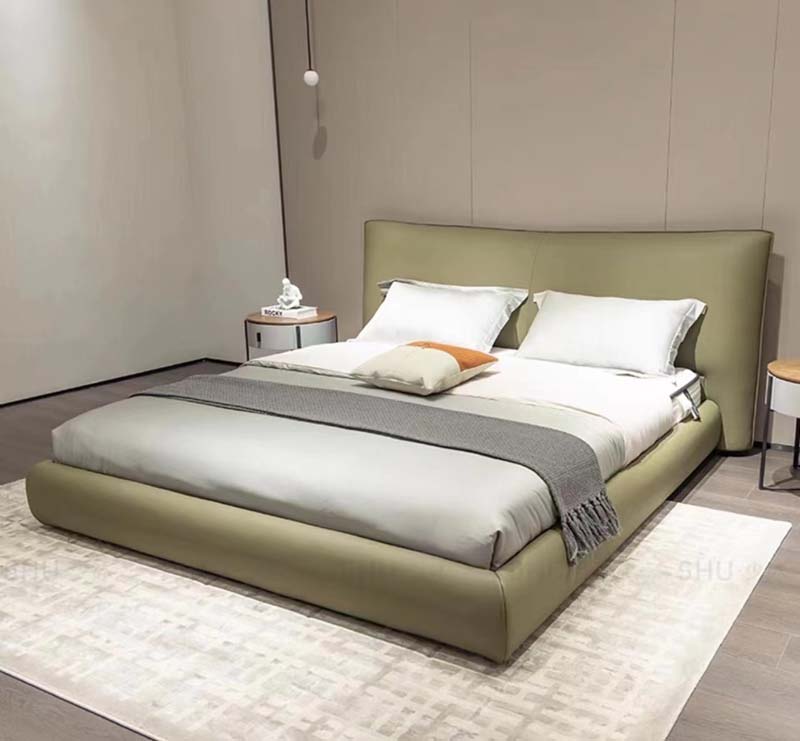

| Headboard upholstery | Olive-green soft upholstery with stitched vertical face split | |
|---|---|---|
| Side and foot rail upholstery | Matching olive-green upholstery over rounded padded rails | |
| Internal support frame | Engineered-wood or solid-wood frame, target 25 mm structural members | |
| Slat support system | Timber or birch-composite slats, target 53 mm width and 8 mm minimum thickness | |
| Center support beam | Rectangular timber or steel rail, target 60 x 40 mm section | |
| Support legs | Dark or covered rigid legs, target 50 mm foot diameter | |
| Padding | High-resilience polyurethane foam, target headboard thickness 60 mm and rail thickness 30 mm | |
| Stitching | Tone-on-tone upholstery seam with target 8 stitches per 100 mm | |
| Deck support fabric | Black or neutral woven polyester deck fabric under slats | |
| Foot glides | Non-marking polymer glides, target 2 mm wear layer | |
| Frame corners | Rounded upholstered external corners with internal hardwood blocking | |
| Headboard core | Padded composite board backing, target 12 mm board thickness |
Adjustment / rotation / tilt / mobility / storage features
| Sleeping configuration | Fixed king-size platform designed for one 1800 x 2000 mm mattress | |
|---|---|---|
| Mattress retention | Continuous raised upholstered rails create a 120 mm recess around the mattress | |
| Headboard support | Floor-standing padded panel provides pillow retention and seated-back support | |
| Bed access | Low 480 mm sleeping surface permits side access from both exposed edges | |
| Ventilation support | Slatted platform allows air circulation beneath the mattress | |
| Assembly method | Bolt-on headboard, side rails, foot rail and three cross-support sections | |
| Floor protection | Separate polymer glides under rails and center supports prevent hard-edge contact | |
| Storage limitation | 60 mm ground clearance does not provide usable under-bed storage | |
| Bed orientation | Headboard intended to sit flat against a finished wall | |
| Stability system | Three center legs and corner blocks distribute load into the floor | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Primary bedroom | Suits a modern residential bedroom where a wide soft headboard serves as the focal element. | |
|---|---|---|
| King-size sleeping zone | Designed for two adults and an 1800 x 2000 mm mattress in open or wall-bed layouts. | |
| Hotel or serviced apartment | Fits upscale guest rooms requiring a soft, low-profile upholstered bed without integrated case goods. | |
| Neutral contemporary interior | Olive-green finish pairs with wood-look flooring, plaster walls and neutral bedding. | |
| Space planning | Requires a 3100 x 3300 mm minimum room zone to retain 400 mm circulation on both sides and foot area. | |
| Pairing recommendation | Coordinates with 550 mm diameter round nightstands shown beside the bed. | |
| Floor compatibility | Low glides are suitable for tile, engineered wood and low-pile carpet with protective flooring. | |
| Not recommended | Unsuitable for rooms requiring large under-bed storage because the platform has only 60 mm ground clearance. |
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Safety, strength and durability requirements for domestic beds, suitable as frame acceptance reference. | |
|---|---|---|
| EN 1021-1:2014 | Ignitability by smouldering cigarette for upholstered furniture, recommended as fire-safety acceptance criterion. | |
| EN 717-1:2004 | Formaldehyde release from wood-based panels, applicable to engineered-wood internal substrates. |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the hidden frame, dimensions and stability tests. | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable if steel center beams or leg plates are used. | |
| GB 18584-2001 | Indoor decorative and furnishing material limitation of formaldehyde for wood-based furniture substrates. | |
| GB/T 10357.6-2013 | Test method for furniture strength and durability, applicable to bed static load and fatigue acceptance. |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the hidden frame, dimensions and stability tests.; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if steel center beams or leg plates are used.; 3. GB 18584-2001: Indoor decorative and furnishing material limitation of formaldehyde for wood-based furniture substrates.; 4. GB/T 10357.6-2013: Test method for furniture strength and durability, applicable to bed static load and fatigue acceptance.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
