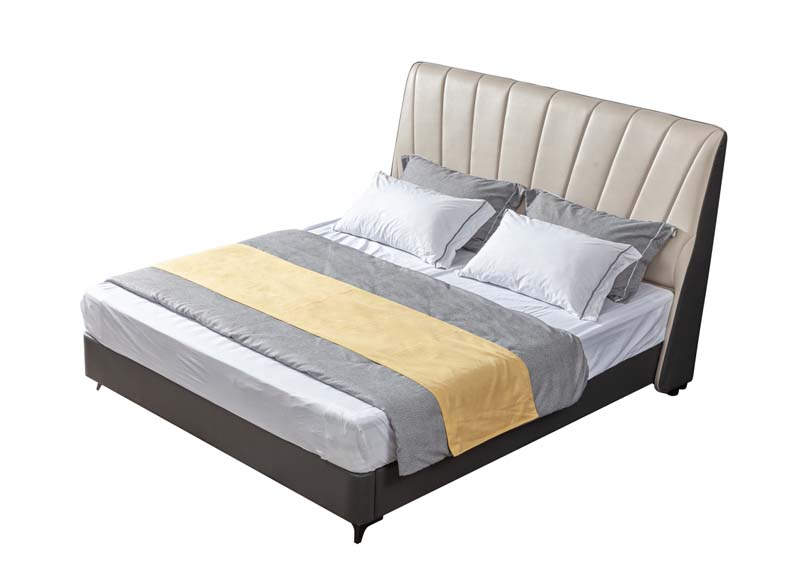

Product supplierUpholstered Platform Bed with Vertical Channel Headboard, Beige faux leather or polyurethane-coated fabric with vertical padded channels
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1900 × 2180 × 1180 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net bed weight | 68 kg | |
|---|---|---|
| Recommended static mattress load | 350 kg | |
| Mattress thickness range | 300 mm | |
| Occupant capacity | 2 adults | |
| Slat or platform distributed load | 3 kg per point on support surface | |
| Leg connection rating | 80 kg per leg vertical static load | |
| Upholstery abrasion acceptance target | 20000 Martindale cycles | |
| Seam tensile acceptance target | 40 N | |
| Warranty target | 36 months | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard facing | Beige faux leather or polyurethane-coated fabric with vertical padded channels | |
|---|---|---|
| Headboard side wings | Black or charcoal faux leather forming protective outer returns | |
| Platform base upholstery | Dark charcoal smooth upholstered panels with tight edge stitching | |
| Internal support board | 18 mm plywood or MDF structural panel | |
| Internal frame | 25 x 50 mm rectangular steel or solid-wood reinforcing rail | |
| Mattress support | Flat board platform or closely spaced bentwood slat system | |
| Padding | 25 mm polyurethane foam over headboard face and 15 mm foam over side rails | |
| Foam density target | 28 kg/m3 headboard foam and 24 kg/m3 rail foam | |
| Legs | Four black matte tapered legs, 95 mm high, likely steel or engineered resin | |
| Fasteners | Hex-drive bed connector bolts, corner brackets, and threaded inserts | |
| Stitching | Recessed vertical channel seams with 70 mm visible spacing between seam lines | |
| Bedding shown | White pillows, grey pillows, grey coverlet, and yellow runner are display textiles |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Sleeping configuration | Fixed king-size platform for one 1800 x 2000 mm mattress | |
|---|---|---|
| Headboard support | 9 vertical padded channels provide cushioning and visually divide the backrest | |
| Mattress retention | Upholstered perimeter rails contain the mattress and reduce lateral movement | |
| Bed access | Three-side platform access with low 300 mm rail height | |
| Under-bed condition | 60 mm open clearance allows floor cleaning but not storage-box access | |
| Assembly method | Knock-down headboard, side rails, foot rail, support base, and legs bolt into corner brackets | |
| Floor contact | Four small hard feet carry the frame; glide pads should be specified for hard floors | |
| Orientation | Headboard is intended for wall placement with the bed face projecting 2180 mm into the room | |
| Color configuration | Beige headboard face with charcoal platform and black side wings | |
| Mattress ventilation | Platform support should include breathable board perforations or slat gaps of 30 mm | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Main bedroom | King-size two-adult bed with a tall padded headboard for premium residential bedrooms | |
|---|---|---|
| Hotel guest room | Durable two-tone platform suitable for upscale rooms requiring soft headboard impact protection | |
| Serviced apartment | Knock-down packaging and fixed platform simplify repeated installation and replacement | |
| Bedroom showroom display | Vertical channel headboard creates a strong wall-facing focal point with neutral beige and charcoal finishes | |
| Small master suite | 2180 mm total depth should be checked against wall-to-walkway clearance | |
| Pairing furniture | Works with 500 mm high nightstands and low-pile carpets due to 60 mm foot clearance |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Applies to safety, strength, and durability requirements for domestic beds | |
|---|---|---|
| EN 12521:2015 | Applies to safety, strength, and durability requirements for residential furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies to dimensional coordination, workmanship, and inspection of wooden furniture for the bed frame | |
|---|---|---|
| GB 18580-2017 | Applies to formaldehyde emission limits for wood-based panels used in the concealed frame | |
| GB/T 3325-2017 | Applies to strength, durability, and stability test methods for metal bed hardware if steel rails are used |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies to dimensional coordination, workmanship, and inspection of wooden furniture for the bed frame; 2. GB 18580-2017: Applies to formaldehyde emission limits for wood-based panels used in the concealed frame; 3. GB/T 3325-2017: Applies to strength, durability, and stability test methods for metal bed hardware if steel rails are used; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
