PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2019 × 2172 × 1111 mm
Overall footprint	2019 W x 2172 D x 1111 H mm
Mattress opening	1930 W x 2032 D mm
Headboard panel	2019 W x 95 D x 1111 H mm
Foot rail panel	2019 W x 51 D x 343 H mm
Sleeping platform height	320 mm
Side rail height	356 mm
Under-bed clearance	150 mm
Metal leg height	150 mm
Metal leg diameter	20 mm
Recommended mattress thickness	381 mm
Slat count	14 slats
Slat spacing	70 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	47.6 kg
Recommended static weight capacity	400 kg
Mattress compatibility	381 mm thick mattresses
Slat static load rating	35 kg per slat
Center support legs	3 legs
Seam and channel count	28 vertical channels
Suggested users	2 adults
Warranty term	24 months
Color options	1 dark gray finish
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Dark gray fabric-look or leather-look upholstery over padded vertical channels
Headboard foam	25 mm polyethylene foam backing with 30 kg/m3 padded core density
Side and foot rail padding	Padded upholstered panels over engineered-wood rail boards
Internal panel material	18 mm MDF, plywood and rubberwood composite structure
Support slats	Laminated LVL or bent wood slats, 55 mm wide and 12 mm thick
Frame structure	Black powder-coated steel center and perimeter support frame
Exposed legs	20 mm diameter black steel tube legs with floor-protecting glides
Rail connection hardware	M8 bolt-and-doweled corner connectors with captive barrel nuts
Stitching construction	Vertical stitched channels at 70 mm pitch, sewn through face fabric and padding
Acoustic padding	2 mm EVA anti-noise pads between slats, rails and metal contact points
Backing layer	Non-woven fabric dust cover under the slat platform
Slat Thickness	15 mm bent plywood or solid timber

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Platform support	Full slatted platform supports the mattress directly and eliminates a box spring
Headboard support	Full-height padded panel provides upright back support for reading and sitting in bed
Knockdown assembly	Headboard, side rails, foot rail, slats and legs assemble with M8 hardware and cam connectors
Mattress retention	356 mm upholstered side rails contain a 381 mm maximum mattress with the upper surface exposed
Floor protection	Each black metal leg uses a non-marking polymer glide suitable for hard flooring
Center load path	Three center support legs transfer mid-span slat loads directly to the floor
Under-bed access	150 mm elevated base allows robotic vacuum access and limited airflow, not storage drawers
Noise control	EVA isolation pads separate wood and steel contact surfaces to reduce bed-frame movement noise
Fixed configuration	The bed has no tilt, lift, hinge, storage or reclining mechanism
Room orientation	Headboard is designed for wall placement with the foot end projecting into the room
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suited to a modern king or queen bedroom where a low padded frame and tall headboard are required
Residential interiors	Suitable for apartments, homes and boutique suites using dark gray neutral upholstery
Hotel guest room	Usable in upscale hotel rooms with 400 kg static capacity and replaceable slatted support
Serviced apartment	Fits long-stay interiors requiring knockdown delivery, quiet use and under-bed cleaning access
Pairing configuration	Pair with low cylindrical nightstands and bench seating to match the displayed contemporary composition
Floor type	Suitable for wood, tile, vinyl and short-pile carpet when fitted with polymer glides
User profile	Designed for two adults using a 1930 x 2032 mm mattress platform

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725 applicability	Domestic and contract bed safety, strength and durability requirements
EN 1021-1 applicability	Upholstered furniture ignitability by smouldering cigarette
EN 1021-2 applicability	Upholstered furniture ignitability by match flame

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	General technical requirements for wooden furniture covering dimensions, workmanship and stability
GB/T 3325 applicability	Metal furniture technical requirements applicable to the steel frame and legs
GB 18584 applicability	Indoor wooden furniture limit for formaldehyde emission
GB/T 10357.6 applicability	Furniture mechanical test for bed strength and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: General technical requirements for wooden furniture covering dimensions, workmanship and stability;
2. GB/T 3325 applicability: Metal furniture technical requirements applicable to the steel frame and legs;
3. GB 18584 applicability: Indoor wooden furniture limit for formaldehyde emission;
4. GB/T 10357.6 applicability: Furniture mechanical test for bed strength and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-VC-DG-K-4375

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-VC-DG-K-4375

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-VC-DG-K-4375Open Export Tool

Quick Actions

Post an RFQ

Product Description

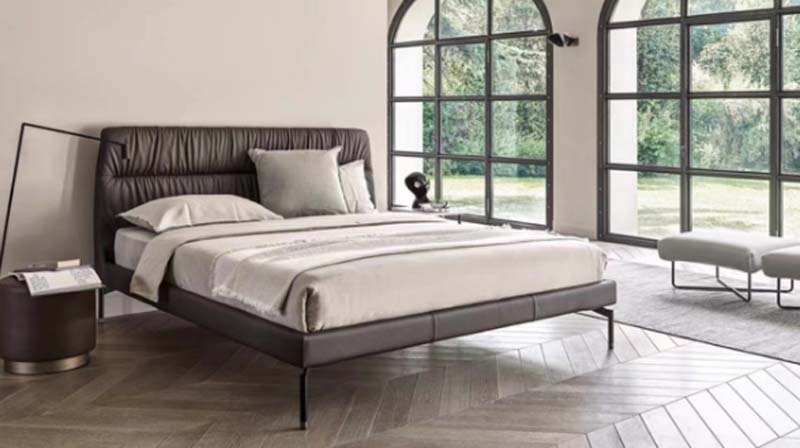

The Dark Gray Vertical-Channel Upholstered Platform Bed presents a tailored modern silhouette with a tall padded headboard, low upholstered side and foot rails, and slim black metal legs. Its dark gray upholstery is formed into 28 vertical channels with consistent stitching across the face fabric and padding, giving the bed a refined linear texture. The full-height headboard anchors the layout, while the lower foot rail maintains an open, low-profile appearance. The sleeping platform sits at 320 mm, with 356 mm side rails that help retain the mattress and a 150 mm clearance beneath the frame. Construction combines padded upholstery, polyethylene foam, engineered wood, wood slats, and a black powder-coated steel support structure. The headboard uses fabric-look or leather-look upholstery over a 25 mm foam backing and padded core, while the side and foot rails cover engineered-wood rail boards. Internal panels use an 18 mm MDF, plywood, and rubberwood composite structure. The laminated LVL or bent wood slats are 55 mm wide and 12 mm thick, providing direct platform support without requiring a box spring. Three center support legs carry mid-span loads to the floor, and the exposed 20 mm black steel tube legs are fitted with non-marking polymer glides. Functionally, the bed supports upright sitting and reading against the padded headboard and accommodates two adults. Its slatted base is suitable for mattresses up to 381 mm thick, with the upper mattress surface left exposed above the upholstered rails. The elevated base allows robotic vacuum access and limited airflow, but does not include under-bed storage drawers. Knockdown assembly uses M8 bolt-and-doweled corner connectors, captive barrel nuts, and cam connectors across the headboard, rails, slats, and legs. The neutral dark gray finish suits contemporary primary bedrooms, apartments, private homes, boutique suites, upscale hotel guest rooms, and serviced apartments. It works on wood, tile, vinyl, and short-pile carpet when using the supplied glide design, and pairs naturally with low cylindrical nightstands and bench seating. Procurement planning should note the unbranded model UPB-VC-DG-K-4375, 47.6 kg net weight, 400 kg recommended static weight capacity, and 35 kg per-slat static load rating. Buyers should verify mattress opening and overall footprint against room layout, confirm carton counts and freight details with the supplier, and allow time for on-site assembly. Replacement slats and accessible hardware support longer-term use in residential and hospitality settings.

Dark Gray Vertical-Channel Upholstered Platform Bed with Slim Black Metal Legs Specifications
