PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1900 × 2200 × 1100 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static bed load	350 kg
Mattress weight capacity	60 kg
Per-slats distributed load	35 kg
Occupant capacity	2 adults
Product net weight	65 kg
Headboard lateral impact load	75 kg
Leg compressive load per foot	58 kg
Recommended mattress thickness	230 mm
Durability target	20,000 simulated load cycles
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Woven fabric or leather-look upholstery over padded panels
Headboard cushion core	High-resilience polyurethane foam, 80 mm front pad
Headboard internal frame	25 mm engineered-wood or plywood backing board
Side and foot rails	Engineered-wood frame wrapped in matching upholstery
Bed base support	12-piece plywood or laminated wood slat system
Support legs	Matte-black powder-coated steel tube legs
Fastening hardware	Carbon-steel bolts, corner brackets, and barrel nuts
Mattress contact layer	Non-woven fabric strip or slat retainer tape
Seam construction	Stitched horizontal and vertical cushion channels with 80 mm seam pitch target
Piping and edge finish	Self-fabric edge binding around upholstered rails
Back panel	Non-woven dust cover over engineered-wood headboard frame
Leg foot pad	Injected polypropylene floor-protection pad, 3 mm thickness

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	Fixed queen-size double sleeping platform without manual or electric adjustment
Head support	Two-row segmented padded headboard provides seated back support for reading or media use
Mattress support	Slatted platform supports mattress directly without a box spring
Under-bed access	130 mm open clearance enables robot vacuum access and dry floor cleaning
Assembly method	Bolt-on headboard, side rails, foot rail, slats, and six legs connect with knockdown hardware
Floor leveling	Threaded steel legs or insert pads allow 5 mm individual height correction
Noise control	Slat retainers and tight bolted rail joints limit mattress movement and metal-on-frame noise
Bed orientation	Headboard designed for wall placement with open access from both sides and foot end
Weight distribution	Six legs distribute frame and occupant loads across the floor, including a central support point
Bedding retention	120 mm upholstered side and foot rails contain the mattress and reduce lateral slide
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suited to a 12 to 18 square meter residential bedroom with bedside circulation on both sides
Modern apartment interior	Warm beige upholstery and black slim legs fit contemporary neutral-tone interiors
Hotel or serviced-apartment room	Suitable for durable room packages requiring a soft headboard and compact under-bed cleaning clearance
Reading in bed	Segmented padded headboard supports upright reading with standard sleeping pillows
Hard-floor installation	Recommended over wood or tile floors with protective leg pads and 130 mm cleaning clearance
Pairing furniture	Coordinates with 450 to 550 mm wide bedside tables and wall-hung or pendant bedside lighting
User profile	Designed for two adults preferring a low-entry, upholstered, box-spring-free platform bed

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Structural safety suggestion	EN 1725:1998 for domestic bed strength and durability
Stability suggestion	EN 12521:2015 for furniture strength, durability, and safety requirements
Upholstery flammability suggestion	EN 1021cigarette ignition test for upholstered bedding components
Formaldehyde suggestion	EN 717for formaldehyde release from wood-based panels
Floor safety suggestion	EN 2813-style floor-protector check for leg foot contact

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional coordination suggestion	GB/T 3328 for furniture bed dimensional inspection
Wood-based panel suggestion	GB/T 39600 for formaldehyde emission classification of engineered-wood components
Surface resistance suggestion	GB/T 4893.8 for furniture surface wear resistance acceptance
Hardware suggestion	GB/T 3325 for metal furniture general technical requirements and inspection

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional coordination suggestion: GB/T 3328 for furniture bed dimensional inspection;
2. Wood-based panel suggestion: GB/T 39600 for formaldehyde emission classification of engineered-wood components;
3. Surface resistance suggestion: GB/T 4893.8 for furniture surface wear resistance acceptance;
4. Hardware suggestion: GB/T 3325 for metal furniture general technical requirements and inspection;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-Q-PANEL-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-Q-PANEL-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-Q-PANEL-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

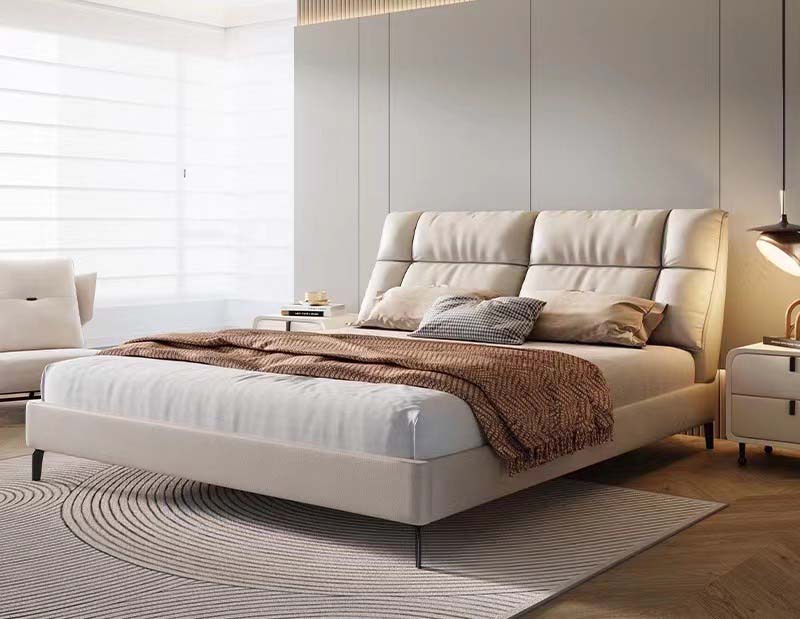

The Upholstered Low-Profile Platform Bed with Padded Panel Headboard is a modern queen-size sleeping platform designed for clean, contemporary interiors. Its low frame is paired with a two-row segmented padded headboard, fully upholstered side and foot rails, and slim matte-black steel legs. Stitched horizontal and vertical cushion channels give the headboard a structured panel appearance, while the warm beige soft cover and black legs create a neutral visual balance suited to residential and hospitality settings. The fixed platform layout provides a double sleeping configuration without manual or electric adjustment. Construction combines an engineered-wood support frame with matching upholstered rails and a headboard built on a 25 mm engineered-wood or plywood backing board. The front cushion uses an 80 mm high-resilience polyurethane foam pad covered in woven fabric or leather-look upholstery. Support is provided by a 12-piece plywood or laminated wood slat system with 80 mm spacing, 40 mm side rails, and six support legs. The matte-black powder-coated steel tube legs use carbon-steel bolts, corner brackets, and barrel nuts for knockdown assembly. A non-woven fabric strip or slat retainer tape protects the mattress contact surface. The slatted base supports a mattress directly, so a box spring is not required. The padded headboard offers seated back support for reading or media use with standard sleeping pillows. Under the bed, 130 mm of open clearance allows robot vacuum access and dry floor cleaning. Threaded steel legs or insert pads permit 5 mm of individual height correction, while retainers and tightened bolted joints help limit mattress movement and metal-on-frame noise. The recommended static bed load is 350 kg, mattress weight capacity is 60 kg, distributed load per slat is 35 kg, and the bed is intended for two adults. This model is appropriate for a residential bedroom up to 18 square meters with bedside circulation on both sides, modern apartments, hotels, and serviced-apartment rooms. It works over wood or tile floors with protective leg pads and coordinates with bedside tables up to 550 mm wide, plus wall-hung or pendant lighting. Procurement planning should note the unbranded model BED-UPH-Q-PANEL-01, net weight of 65 kg, packaged gross weight of 130 kg, packaging volume of 0.9 cubic meters, and reference assembly time of 40 minutes. The reference logistics record lists two cartons per set; buyers should confirm final packing details with their order documentation.

Upholstered Low-Profile Platform Bed with Padded Panel Headboard Specifications
