PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 2250 × 1000 mm
Overall external size	2000 x 2250 x 1000 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static bed-frame load	350 kg
Mattress platform distributed load	200 kg
Recommended user count	2 adults
Product net weight reference	75 kg
Mattress thickness compatibility	300 mm
Minimum floor contact points	4 support points
Durability target for upholstered frame	50,000 simulated load cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery	Orange velvet-faced fabric with vertical ruched channels on headboard, side rails, and foot rail
Headboard padding	Polyurethane foam and soft fiber wadding over a shaped board frame
Side rail padding	Foam-filled upholstered rails with gathered vertical fabric channels
Internal support frame	Kiln-dried timber or engineered-wood frame with metal reinforcement brackets
Mattress support base	Plywood or engineered-wood slat platform with center support rail
Feet and floor protection	Low recessed feet or glide pads with 50 mm ground clearance
Corner construction	Rounded upholstered corners with tailored seam joins at headboard and foot ends
Decorative bedding	White cotton-like sheeting, gray pillows, orange accent cushion, and gray throw runner
Fabric surface treatment	Soft-pile upholstery finish without visible leather grain or woven pattern
Internal board thickness target	18 mm engineered-wood panels and 30 x 50 mm timber rails
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sleeping configuration	Provides a two-person king-size sleeping platform sized for an 1800 x 2000 mm mattress
Headboard support	Continuous padded headboard supports seated reading and keeps pillows from contacting the wall
Platform retention	Raised padded side and foot rails contain the mattress and reduce lateral movement
Low-profile entry	480 mm sleep surface height allows standard adult seating and entry without a step stool
Bed making access	Open side clearance allows tucking bedding between the 350 mm rails and the mattress top
Under-bed access	50 mm recessed clearance provides limited floor ventilation and is not designed for storage use
Assembly method	Knock-down headboard, side rails, foot rail, and support slats connect with bolts and cam-lock hardware
Floor placement	Designed to sit directly against a flat wall with the 1000 mm padded headboard as the rear protective panel
Stability system	King-width frame requires a longitudinal center beam and intermediate support leg or cross rail
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom	Suits a contemporary master bedroom where the 1000 mm padded headboard serves as a soft wall-facing feature
Hotel guest room	Appropriate for upscale hotel rooms requiring a soft, low-platform bed with warm accent upholstery
Show home or model apartment	Suitable for styled bedrooms because the orange ruched frame creates a strong visual focal point with neutral bedding
Residential apartment lift access	Requires checking lift or stair clearance because the headboard carton is at 2050 x 1050 mm on its largest face
Pairing recommendation	Works with neutral white, gray, charcoal, walnut, or beige room finishes, matching the bedding and dark wood paneling shown
User group	Designed for adult users seeking a low-profile upholstered bed; unsupervised young children should avoid standing on ruched padded rails
Flooring recommendation	Use on wood, tile, vinyl, or low-pile carpet with felt glides to protect flooring under the 85 kg packaged frame weight

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Dometic furniture safety requirements for beds and mattresses, applicable to structural edges and stability
EN 1021-1:2014	Ignitability by smouldering cigarette for upholstered furniture combinations

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to the hidden timber/engineered-wood bed structure
GB/T 3325-2017	Metal furniture general technical requirements, applicable if metal support legs or brackets are used
GB 18584-2001	Indoor decorative and furnishing materials limit of formaldehyde for wood-based furniture components
GB/T 17657-2013	Test methods for evaluating wood-based panel strength, moisture behavior, and dimensional properties

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the hidden timber/engineered-wood bed structure;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable if metal support legs or brackets are used;
3. GB 18584-2001: Indoor decorative and furnishing materials limit of formaldehyde for wood-based furniture components;
4. GB/T 17657-2013: Test methods for evaluating wood-based panel strength, moisture behavior, and dimensional properties;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-K-ORNG-RUCH-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-K-ORNG-RUCH-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-K-ORNG-RUCH-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

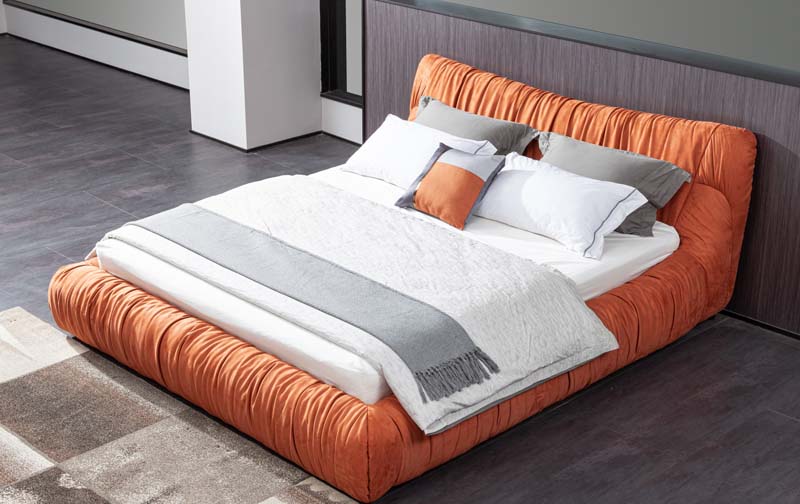

The Ruched Orange Velvet Upholstered Platform Bed brings a warm, contemporary focal point to a king-size bedroom setting. Its low-profile form is defined by orange velvet-faced upholstery with vertical ruched channels across the padded headboard, side rails, and foot rail. Rounded upholstered corners and tailored seam joins soften the outline, while low recessed feet or glide pads keep the frame close to the floor. The headboard creates a continuous soft wall-facing feature, and the raised side and foot rails visually frame the sleep surface. The orange upholstery pairs naturally with neutral white, gray, charcoal, walnut, or beige finishes. Mattress and decorative bedding shown in the product presentation are separate. Construction combines comfort layers with a concealed support structure. The headboard is padded with polyurethane foam and soft fiber wadding over a shaped board frame, while the side rails are foam-filled and finished with gathered vertical fabric channels. Beneath the upholstery is a kiln-dried timber or engineered-wood frame reinforced with metal brackets. The mattress rests on a plywood or engineered-wood slat platform with a center support rail, supported by a hidden timber and metal bed frame. A six-leg center support configuration is recommended, with at least four floor support points. The soft-pile fabric has no visible leather grain or woven pattern. Designed for two adults, the bed provides a king-size sleeping platform suited to an 1800 x 2000 mm mattress. The padded headboard supports seated reading and helps keep pillows away from the wall. Raised padded rails contain the mattress and reduce lateral movement, while the 480 mm sleep surface height allows standard adult seating and entry without a step stool. Open side clearance supports bed making, and the 50 mm recessed ground clearance offers limited floor ventilation rather than storage space. The frame is compatible with a 300 mm mattress thickness. This bed suits a contemporary master bedroom, upscale hotel guest room, show home, or styled model apartment, especially where a bold upholstered centerpiece is desired. Knock-down assembly uses bolts and cam-lock hardware for the headboard, rails, foot rail, and slats. Procurement planning should account for lift or stair clearance, two-carton delivery handling, and the need to place the bed on a suitable floor surface. The upholstered rails are intended for adult use; young children should not stand on them unsupervised.

Ruched Orange Velvet Upholstered Platform Bed, King Size Specifications
