PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1960 × 2240 × 1320 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Bed frame net weight	68 kg
Recommended total static load	350 kg
Mattress support capacity	250 kg
Recommended mattress thickness	280 mm
Recommended maximum mattress thickness	320 mm
Occupant capacity	2 adults
Under-bed storage clearance	120 mm
Fastener torque for assembly	12 N·m
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer cover	Beige woven fabric or leather-look upholstery over padded panels
Headboard padding	High-resilience polyurethane foam with a 40 mm visible crown depth
Channel-tufted face	Ten vertically aligned padded bays with single dark pull buttons
Side and foot rails	Beige upholstered panels over a structural timber or board frame
Internal bed frame	Solid timber or engineered-wood rail structure with bolted corner joints
Slat support system	Horizontal plywood or laminated wood slats, 18 slats at 100 mm spacing
Support legs	Black powder-coated metal cylinder or tapered legs, 30 mm section diameter
Center support rail	Steel or timber center beam with one intermediate leg, 60 mm depth
Corner joining hardware	M8 bolted metal brackets, 8 bolts for rails and 4 bolts for headboard
Surface seam construction	Stitched vertical channel seams at 195 mm spacing with 8 stitches per 100 mm
Backing and dust cover	Black non-woven fabric backing on headboard and platform underside
Slat Thickness	15 mm bent plywood or solid timber

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Platform support	Low upholstered frame supports an 1800 x 2000 mm mattress without requiring a box spring
Headboard enclosure	Winged side returns extend 160 mm forward to visually enclose the pillow area
Tufted backrest	Ten padded vertical channels provide a soft backrest for seated reading or media use
Bedding retention	Upholstered 320 mm side rails contain the mattress and reduce lateral bedding drift
Floor clearance	120 mm leg clearance permits robotic vacuum passage below the rails
Knock-down assembly	Headboard, side rails, foot rail, slats, and legs assemble with bolted brackets
Mattress ventilation	18 spaced timber slats create air circulation beneath the mattress
Floor protection	Hard plastic or rubber feet isolate the black metal legs from finished flooring
Center load control	Center beam and intermediate leg reduce slat deflection across the 1800 mm width
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Main bedroom	Suitable for a king-size main bedroom where the winged headboard creates a defined sleeping zone
Hotel guest room	Applicable to upscale hotel or serviced-apartment rooms needing a soft, uniform beige bed envelope
Boutique residential interior	Fits warm minimalist or contemporary rooms with neutral bedding and recessed ambient lighting
Bedroom reading position	Padded channel backrest supports seated reading when arranged against a wall
Compact luxury suite	Low rail and 120 mm foot clearance suit suites where visual lightness is preferred over storage beds
Pairing configuration	Pair with floating nightstands and wall outlets because the winged headboard occupies most of the wall width

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture safety	EN 1725 covers safety, strength, and durability requirements for domestic beds
Formaldehyde emissions	EN 717provides formaldehyde emission classification for wood-based panels

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional coordination	GB/T 3324 applies general furniture dimensional and inspection terminology for bed frame procurement
Wood-based panel safety	GB 18580 provides formaldehyde emission limits for any engineered-wood panels in the frame
Upholstered furniture safety	GB/T 31982 addresses upholstered furniture anti-dumping performance for residential padded beds

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional coordination: GB/T 3324 applies general furniture dimensional and inspection terminology for bed frame procurement;
2. Wood-based panel safety: GB 18580 provides formaldehyde emission limits for any engineered-wood panels in the frame;
3. Upholstered furniture safety: GB/T 31982 addresses upholstered furniture anti-dumping performance for residential padded beds;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-WING-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-WING-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-WING-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

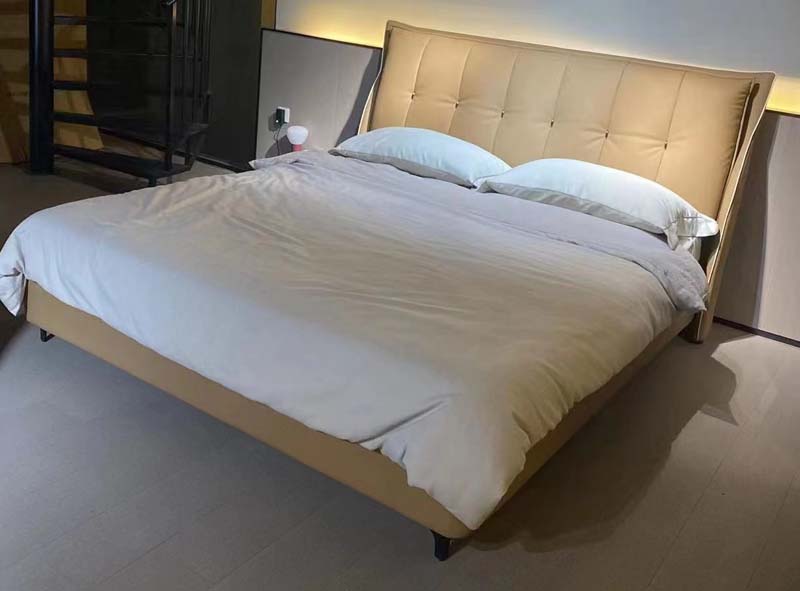

The Upholstered Winged Platform Bed presents a low, soft-edged sleeping platform anchored by a tall channel-tufted headboard. Its winged side returns extend forward, framing the pillow area and giving the bed a defined, residential-hotel character. Ten vertically aligned padded bays, each finished with a single dark pull button, create a structured rhythm across the beige woven fabric or leather-look upholstery. The side and foot rails carry the same soft cover, producing a consistent envelope around the mattress while maintaining a streamlined platform silhouette. Construction combines a solid timber or engineered-wood internal frame with bolted corner brackets, upholstered outer panels, and black powder-coated metal legs. The padded headboard uses high-resilience polyurethane foam with a visible crown depth, while the support system uses horizontal plywood or laminated wood slats. A steel or timber center beam with an intermediate leg reinforces the sleeping area, and the specification calls for six center support legs. The low platform is designed for an 1800 x 2000 mm mattress and does not require a box spring. Functionally, the bed is suited to two adults and pairs the soft backrest with practical containment and ventilation. The padded channels offer support for sitting upright while reading or using media, and the upholstered rails help keep the mattress and bedding in place. The spaced timber slats promote air circulation beneath the mattress, while the 120 mm leg clearance allows a robotic vacuum to pass under the rails. The low clearance offers limited space below rather than a high-volume storage configuration. This model works well in a king-size main bedroom, upscale hotel guest room, serviced apartment, boutique residential interior, or compact luxury suite where visual lightness is preferred. Its neutral beige finish and winged form suit warm minimalist and contemporary schemes, especially when placed against a wall with neutral bedding and restrained ambient lighting. Because the headboard occupies most of the wall width, floating nightstands and conveniently positioned wall outlets make a practical pairing. Procurement planning should note the unbranded product code BED-UPH-WING-1800 and the stated overall footprint of 1960 x 2240 x 1320 mm. Buyers should verify room circulation, wall width, mattress choice, and access before ordering. The recommended mattress thickness is 280 mm, with a 320 mm maximum. The knock-down design includes separate headboard, rails, foot rail, slats, and legs that assemble with bolted brackets; the reference assembly time is 40 minutes per set. Logistics data indicates two cartons in the reference package count, while the listed packaged gross weight is 130 kg per set, so suitable receiving and assembly resources should be arranged.

Upholstered Winged Platform Bed with Channel-Tufted Headboard Specifications
