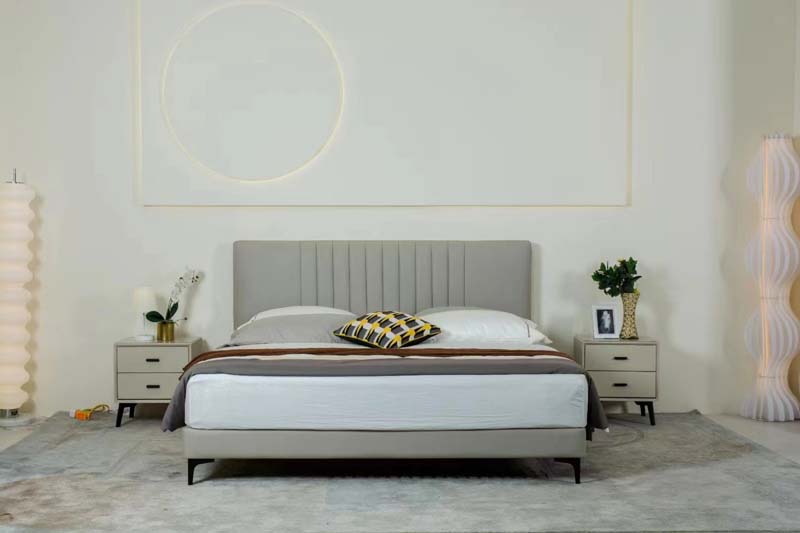

Product supplierUpholstered Low-Profile Platform Bed with Channel-Tufted Headboard, Woven light-grey fabric over foam-padded engineered-wood panel
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1830 × 2200 × 1100 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static bed-frame load | 350 kg | |
|---|---|---|
| Recommended distributed mattress load | 300 kg | |
| Weight reference | 65 kg | |
| Occupant capacity | 2 adults | |
| Slat support spacing | 70 mm | |
| Floor contact points | 6 legs | |
| Mattress edge retention | 50 mm side rail height | |
| Assembly cycle rating | 50 assembly/disassembly cycles | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Woven light-grey fabric over foam-padded engineered-wood panel | |
|---|---|---|
| Headboard foam | 25 mm polyurethane padding with sewn vertical channels | |
| Side and foot rails | Grey fabric-upholstered engineered-wood frame with straight profile | |
| Internal support board | 18 mm engineered-wood slats or board platform with 70 mm support spacing | |
| Bed legs | Matte black powder-coated carbon-steel tapered legs | |
| Hardware | Zinc-plated steel bolts, corner brackets and wood dowels with knock-down fittings | |
| Mattress | White quilted mattress with woven ticking and bordered edge | |
| Fabric seam detail | Stitched vertical seams at 110 mm spacing with 8 stitches per 100 mm target | |
| Floor protection | Injection-molded polymer foot caps on each steel leg | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Headboard support | Fixed padded headboard provides seated back support and a continuous 1830 mm visual backing | |
|---|---|---|
| Mattress support | Platform structure supports a 1800 x 2000 mm mattress without requiring a box spring | |
| Storage access | 120 mm under-bed clearance allows robotic vacuum access but no dedicated under-bed drawers | |
| Assembly method | Knock-down headboard, side rails, foot rail, support members and legs bolt together with six floor contacts | |
| Stability design | Angled splayed metal legs spread load outward and resist lateral movement on carpet or hard flooring | |
| Mattress retention | Upholstered side and end rails form a shallow recess to limit sliding of the 1800 mm mattress | |
| Maintenance access | Sewn fabric cover appears fixed rather than removable, requiring vacuum cleaning and spot treatment | |
| Bed placement | Headboard is designed for placement against a flat wall with 50 mm recommended wall clearance | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per shipment | 75 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary bedroom | Suits a 1800 x 2000 mm queen mattress for two adults in residential master bedrooms | |
|---|---|---|
| Modern apartment bedroom | Low grey upholstered form and slim black legs suit compact contemporary interiors | |
| Hotel or serviced apartment | Can be specified for quiet-tone guest rooms with matching two-drawer bedside storage | |
| Bedroom display showroom | Channel headboard gives a clear focal point for lifestyle vignettes and mattress cross-selling | |
| Hard-floor or carpeted room | Polymer foot caps and six support points are suited to wood, tile or carpet installations | |
| Residential renovation package | Pairs with neutral bedding and separate bedside cabinets for coordinated procurement |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Applies safety, strength and durability requirements for domestic beds | |
|---|---|---|
| EN 1129-1:1995 | Applies dimensional tolerances and test methods for domestic beds where mattress fit is evaluated | |
| EN 717-1:2004 | Applies formaldehyde release testing for wood-based panels |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies general technical requirements to wooden furniture dimensions, workmanship and structural stability | |
|---|---|---|
| GB/T 10357.6-2013 | Applies single-bed static-load test procedures for strength and stability verification | |
| GB 18584-2001 | Applies indoor wooden-furniture limits for formaldehyde emission from engineered-wood components | |
| GB/T 17657-2013 | Applies physical and chemical tests for wood-based panels used in the hidden frame |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies general technical requirements to wooden furniture dimensions, workmanship and structural stability; 2. GB/T 10357.6-2013: Applies single-bed static-load test procedures for strength and stability verification; 3. GB 18584-2001: Applies indoor wooden-furniture limits for formaldehyde emission from engineered-wood components; 4. GB/T 17657-2013: Applies physical and chemical tests for wood-based panels used in the hidden frame; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
