PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	740 × 830 × 1170 mm
Overall assembled dimensions	740 x 830 x 1170 mm
Seat width	500 mm
Seat depth	500 mm
Seat height range (lowest to highest)	420 to 520 mm
Backrest width	600 mm
Backrest height (from seat pan)	630 mm
Five-star base diameter	690 mm
Armrest height (above seat pan)	230 mm
Caster diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight (assembled)	24 kg
Recommended static user weight capacity	150 kg
Seat foam density	40 kg/m³
Back foam density	30 kg/m³
Seat foam thickness	100 mm
Back foam thickness	80 mm
Upholstery abrasion resistance (Martindale)	50000 cycles
Tilt recline angle (from upright)	18 degrees
Seam stitch pitch	8 stitches per inch
Gas lift stroke length	100 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Black polyurethane (PU) faux leather
Armrest frames	Stained solid mahogany-tone hardwood
Armrest top pads	Padded PU leather matching seat upholstery
Five-star base	Stained solid hardwood with polished wood finish
Internal seat/back support panels	15 mm thick plywood
Seat and back padding	High-density polyurethane foam
Height adjustment mechanism	3 mm thick cold-rolled steel tilt chassis
Gas lift cylinder	Class 4 steel pneumatic lift
Casters	50 mm diameter black nylon hooded casters
Central hardware fittings	Chrome-plated steel connection collar
Edge stitching	Polyester bonded thread
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Pneumatic seat height adjustment	Lever-operated, 100 mm travel to set seat height for desk use
360-degree swivel rotation	Full rotation around central gas lift for easy desk access
Tilt rocking function	Synchronized seat and back rocking with adjustable tension knob
Upright tilt lock	Locking lever secures chair in upright seated position for focused work
Smooth rolling mobility	Five casters enable easy movement on hard or carpeted office floors
Built-in lumbar support	Contoured lower back padding reduces lumbar strain during long work sessions
Fixed padded armrests	Sturdy wood-framed armrests provide stable forearm support at fixed height
Floor protection	Hooded caster design reduces scuffing and scratches on hard floor surfaces
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive offices	Formal traditional styling matches C-suite and management private workspaces
Conference meeting rooms	Formal appearance is suitable for boardroom and executive meeting seating
Home office studies	Comfortable padded design works for dedicated home workspaces
Law and financial firm offices	Conservative professional appearance aligns with formal client-facing spaces
Reception and management waiting areas	Premium wood-trim design creates a polished first impression for visitors
Standard desk height compatibility	Pneumatic height adjustment works with 760 mm tall standard office desks
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office chair dimensional and safety requirements for work seating
EN 1335-2:2009	Applies to office chair mechanical strength and stability performance requirements
EN 1021-1:2014	Applies to upholstered furniture resistance to ignition by smouldering cigarette

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general-purpose office chair safety, durability and structural performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to office chair dimensional accuracy and structural stability requirements
GB/T 10357.3-2013	Applies to office chair mechanical strength and durability test methods
GB 20210-2006	Applies to fire safety requirements for upholstered office furniture materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office chair dimensional accuracy and structural stability requirements;
2. GB/T 10357.3-2013: Applies to office chair mechanical strength and durability test methods;
3. GB 20210-2006: Applies to fire safety requirements for upholstered office furniture materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXE-WD-74083117

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXE-WD-74083117

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXE-WD-74083117Open Export Tool

Quick Actions

Post an RFQ

Product Description

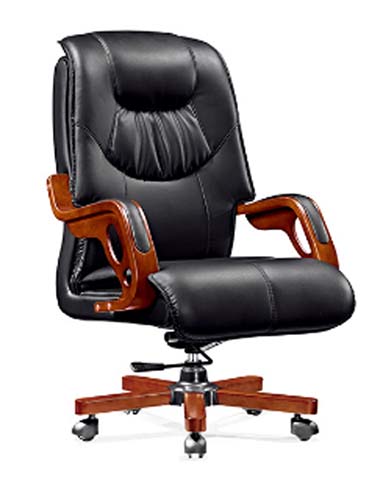

The High-Back Black Upholstered Swivel Executive Office Chair with Wood Trim, model EXE-WD-74083117, is an unbranded traditional executive seating solution defined by polished, formal visual design. It features a tall 630 mm high back upholstered in smooth black polyurethane faux leather, paired with stained solid mahogany-tone hardwood accents on fixed armrest frames and a wide five-star base finished to a polished sheen. The design balances structured, professional lines with soft padded surfaces, creating a stately, refined silhouette that reads as deliberate and upscale rather than overly casual. With a fully assembled footprint of 740 x 830 x 1170 mm, the chair’s proportions feel substantial without overwhelming surrounding workspace furniture, and the matching black padded armrest tops align seamlessly with the seat and back upholstery for a cohesive look. Built for long-term daily use, the chair’s construction prioritizes durability and consistent support. Seat and back cushions are formed from high-density polyurethane foam, with 100 mm thick 40 kg/m³ foam at the seat and 80 mm thick 30 kg/m³ foam at the back, upholstered in faux leather rated for 50000 Martindale abrasion cycles to resist wear from regular use. Internal support panels use 15 mm thick plywood, while the tilt chassis is fabricated from 3 mm thick cold-rolled steel, paired with a Class 4 steel pneumatic gas lift and 50 mm diameter black nylon hooded casters. The solid wood five-star base and fixed armrest frames add structural rigidity, and the assembled chair has a net weight of 24 kg with a recommended static user weight capacity of 150 kg. Core functional features support both comfort and flexible work patterns. The lever-operated pneumatic height adjustment offers 100 mm of travel, reaching a maximum seat height of 520 mm to align with standard 760 mm tall office desks. Users benefit from full 360-degree swivel rotation for easy access to all areas of a desk, a synchronized seat and back tilt rocking function with an adjustable tension knob, and an upright tilt lock to secure the chair in place for focused work. Built-in contoured lumbar padding reduces lower back strain during extended work sessions, the fixed padded armrests deliver stable forearm support, and the five casters roll smoothly across both hard flooring and carpeted office surfaces. This chair is suited to a range of professional and dedicated private work settings. Its formal traditional styling complements private C-suite and management executive offices, while its conservative polished appearance is an ideal match for client-facing spaces in law and financial firms. It works equally well as boardroom and executive conference room seating, creates a polished first impression in reception and management waiting areas, and offers long-sitting comfort for dedicated home office studies. Procurement teams should note that each unit ships across two cartons, with a total packaged gross weight of 23 kg and total carton volume of 0.26 m³, requiring 40 minutes of assembly time per set.
