| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications

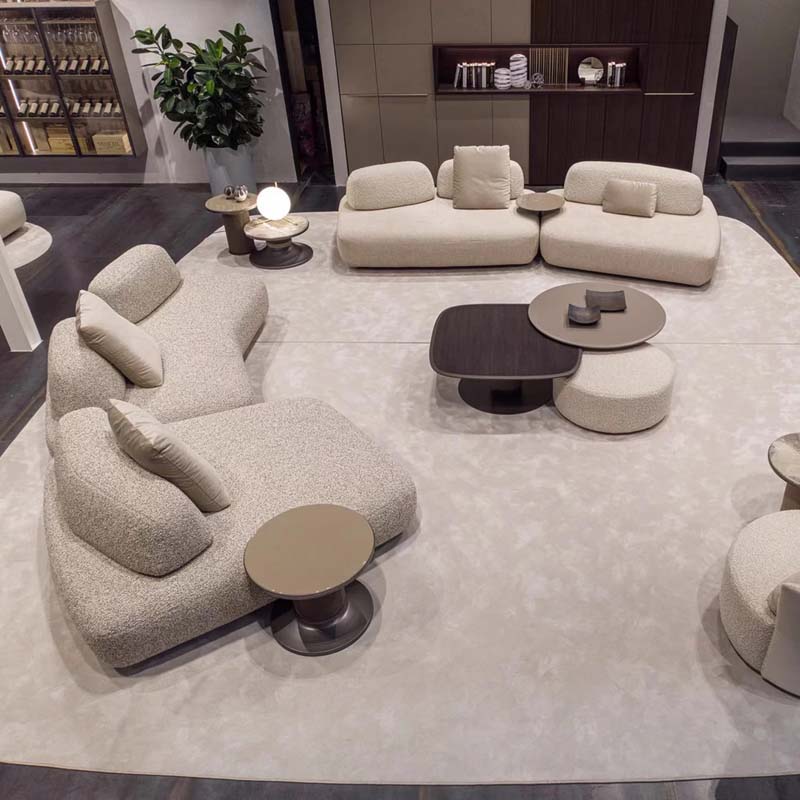

| Overall displayed sofa footprint | 5100 x 4200 x 790 mm | |
|---|---|---|
| Rear two-seat module | 1450 x 1130 x 750 mm | |
| Curved chaise module | 2830 x 1400 x 790 mm | |
| Round upholstered ottoman | 900 x 900 x 420 mm | |
| Seat height | 420 mm | |
| Seat depth | 760 mm | |
| Single seating width | 720 mm | |
| Backrest height above seat | 330 mm | |
| Back cushion thickness | 220 mm | |
| Arm structure | 0 mm exposed arm; integrated armless padded edge | |
| Base height | 120 mm | |
| Throw pillow size | 550 x 550 mm | |
| Lumbar pillow size | 450 x 250 mm | |
| Coffee-table clearance aisle | 900 mm | |
| Rug-backed planning zone | 5600 x 4600 mm | |
| Seat Cushion Thickness | 180 mm |
Net weight / load capacity / users / durability
| Seating capacity | 8 adults | |
|---|---|---|
| Total net weight | 254 kg | |
| Per-seat static load | 160 kg | |
| Total sectional static load | 960 kg | |
| Seat foam thickness | 180 mm | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 30 kg/m3 | |
| Foam resilience | 40% rebound | |
| Fabric abrasion acceptance | 50,000 Martindale cycles | |
| Seat suspension rating | 160 kg per seat |
Core acceptance fields · Panels / hardware / frame / upholstery
| Outer upholstery | Beige bouclé-style woven fabric with visible looped texture | |
|---|---|---|
| Fabric weight target | 450 g/m2 heavy upholstery-weight textile | |
| Seat cushion core | 180 mm high-resilience polyurethane foam with fibre wrap | |
| Back padding | 30 kg/m3 foam with polyester fibre topper | |
| Internal load frame | Kiln-dried hardwood or engineered hardwood frame, 28 mm section | |
| Frame moisture target | 12% moisture content at shipment | |
| Plywood support board | 12 mm plywood or composite seat deck | |
| Seat suspension | 3.8 mm sinuous steel springs or 50 mm elastic webbing | |
| Under-module connectors | Steel hidden latch plates joining adjacent modules | |
| Base upholstery | Self-fabric wrapped plinth with no exposed feet | |
| Throw pillow filling | Blown polyester fibre or down-alternative fibre in fabric covers | |
| Seam construction | Tailored stitched upholstery with 8 stitches per 50 mm |
Adjustment / rotation / tilt / mobility / storage features
| Modular arrangement | Four upholstered seating groups and one ottoman can be repositioned on hidden fabric bases | |
|---|---|---|
| Module connection | Under-body steel latch or hook-and-plate connectors align adjacent modules and reduce separation | |
| Conversation orientation | Rear and curved modules face the central coffee tables to form an enclosed lounge grouping | |
| Deep lounge posture | 760 mm seat depth allows upright or reclined sitting with loose lumbar support | |
| Ottoman function | 900 mm round padded unit serves as footrest, occasional seating or nested table support | |
| Cushion configuration | Integrated rounded seat and back pads are combined with loose square and lumbar pillows | |
| Floor protection | Continuous upholstered plinth distributes weight and should include non-marking glides beneath fabric | |
| Tool-free site setup | Modules ship separately and join without visible fasteners on exposed faces | |
| Reconfiguration limit | Armless curved units are designed for grouping, not reclining, swivelling or converting into beds | |
| Maintenance access | Loose pillow covers permit separate cleaning only if zippers are supplied in production | |
| Color option count | 1 standard beige color with 6 custom fabric colors available for procurement quotation | |
| Site assembly | Separate modules join with underside connectors in 50 minutes for a 2-person crew |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Residential living room | Use the 5100 x 4200 mm grouping in a large open-plan living room for 8-person conversation | |
|---|---|---|
| Boutique hotel lobby | Arrange curved modules around low tables in guest reception areas for soft modular seating | |
| Executive lounge | Install in a staff breakout or executive relaxation area for informal meetings | |
| Showroom or design gallery | Display the beige bouclé set on a large rug with sculptural side tables to highlight organic geometry | |
| Premium retail lounge | Place modules in customer waiting areas for durable, high-capacity soft seating | |
| Hospitality suite | Configure the ottoman and side tables for guests needing footrests, drinks, or occasional seating |
EU Market Access Requirements* EN Standards
| EN 16139 applicability | Use for non-domestic seating strength, durability and safety in reception or lounge installations | |
|---|---|---|
| EN 1022 applicability | Use for seating stability assessment of the modular configuration on level floors |
Standards applicable to China-market projects
| GB/T 33241 applicability | Use for upholstered furniture general safety requirements covering structural safety and hazardous features | |
|---|---|---|
| GB/T 17597 applicability | Applicable standards and test results require confirmation | |
| GB 18401 applicability | Apply Category B textile safety requirements for fabric in direct skin contact |
This product must meet the following technical requirements: 1. GB/T 33241 applicability: Use for upholstered furniture general safety requirements covering structural safety and hazardous features; 2. GB/T 17597 applicability: Applicable standards and test results require confirmation; 3. GB 18401 applicability: Apply Category B textile safety requirements for fabric in direct skin contact; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
