| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 740 x 760 x 820 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Suggested user weight capacity | 135 kg | |
|---|---|---|
| Product net weight | 18 kg | |
| Seating capacity | 1 adult | |
| Seat foam thickness | 100 mm | |
| Back foam thickness | 60 mm | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Static load verification target | 405 kg | |
| Recommended daily occupancy duration | 8 hours | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery

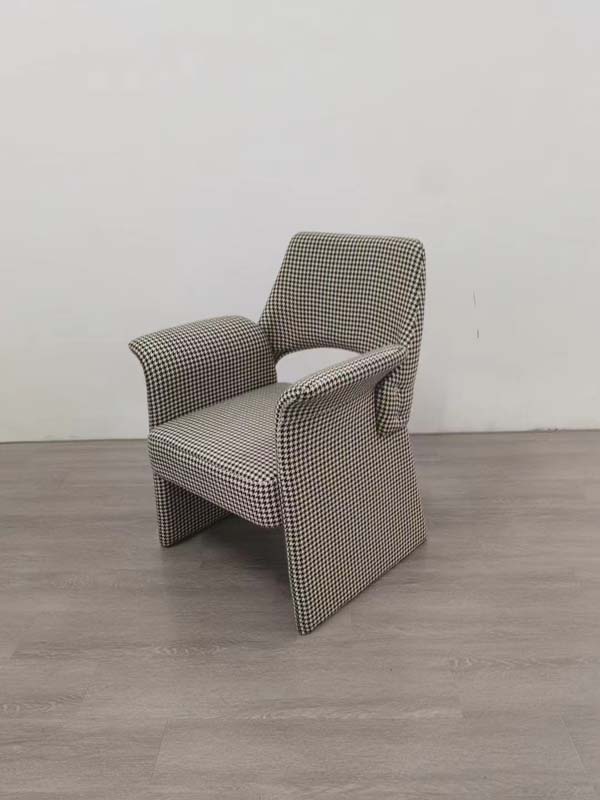

| Outer upholstery | Woven houndstooth-pattern fabric with tight visible repeat across seat, arms, back, and side panels | |
|---|---|---|
| Fabric surface construction | Padded tailored upholstery with sewn corners and wrapped panel edges | |
| Seat cushion | Padded flexible cushion layer over a concealed load-bearing deck | |
| Backrest panel | Upholstered rigid panel with a central open cutout and continuous upper support | |
| Integrated armrests | Curved upholstered arm panels connected into the chair side structure | |
| Concealed internal frame | Hardwood-composite or plywood panel frame at 18 mm thickness | |
| Floor-contact base panels | Upholstered side panels forming two low support feet without exposed legs | |
| Edge protection | Concealed stiffeners inside the rounded arm nosings and front seat edge | |
| Under-seat support board | 12 mm structural board or webbing-supported deck | |
| Fabric abrasion procurement target | 30,000 Martindale cycles | |
| Fabric flammability construction | Standard residential textile without claimed flame-retardant treatment | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Seating posture | Fixed relaxed lounge posture with a 430 mm seat height and 12-degree angled backrest | |
|---|---|---|
| Arm support | Continuous integrated armrests provide 210 mm support above the seat and wrap around the front edge | |
| Back ventilation | The 350 x 130 mm open cutout separates the lower back from the arm structure and reduces visual bulk | |
| Floor support | Two broad upholstered side panels transfer load directly to the floor without separate legs or casters | |
| Mobility | Non-swiveling, non-tilting, and non-folding chair intended for stationary placement | |
| Space planning footprint | Requires a 740 x 760 mm floor footprint plus 300 mm rear access clearance for moving and cleaning | |
| Cleaning access | The open under-seat gap allows limited floor access beneath the front and side edges | |
| Upholstery attachment | Tailored fixed upholstery covers the structural shell and is not designed for tool-free removal by the user | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Living room reading corner | Placed as a standalone accent chair where the open back and 740 mm width provide compact lounge seating | |
|---|---|---|
| Hotel guest room | Suitable near a window or writing area for one guest and soft-interior design schemes | |
| Executive lounge | Pairs with a low coffee table in informal meeting or waiting zones | |
| Reception area | Useful in boutique offices and studios requiring a residential-style visitor chair | |
| Bedroom dressing area | Can serve as an accent seat at the foot of a bed or beside a vanity | |
| Retail showroom display | Suitable for furniture displays emphasizing houndstooth upholstery and rounded sculptural lines | |
| Senior living seating | Appropriate where stationary stability is preferred over swivel or caster seating | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
