Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 760 W x 750 D x 800 H mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Recommended user weight | 120 kg static seated load | |
|---|---|---|
| net weight | 22 kg | |
| Seating capacity | 1 adult | |
| Backrest lateral support width | 600 mm | |
| Daily-use durability target | 50,000 seat-loading cycles | |
| Foam compression set acceptance | 8 percent maximum after 72 hours | |
| Frame static proof load | 480 kg applied to seat center | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

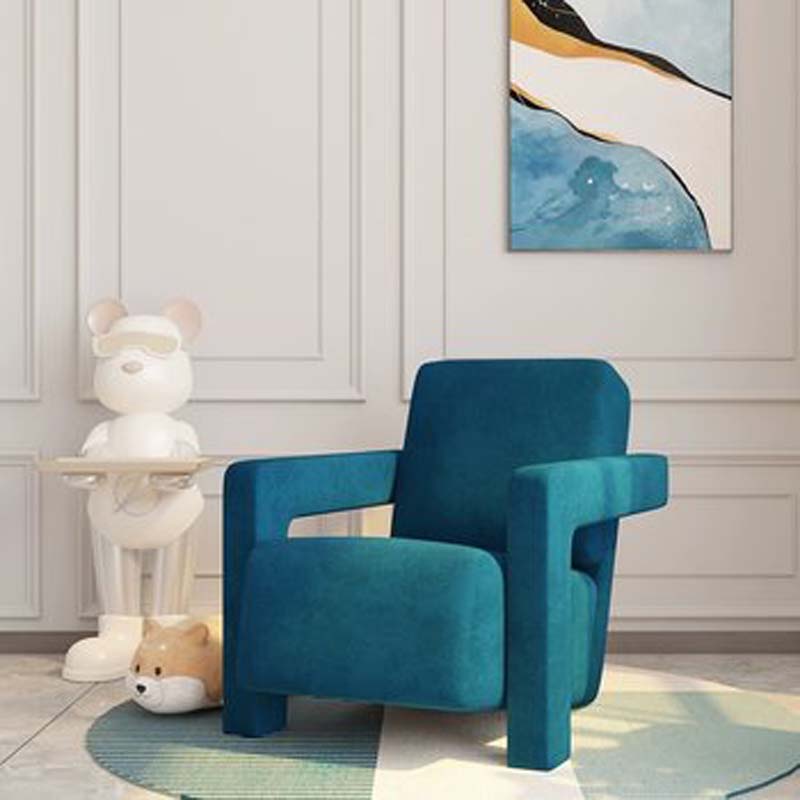

| Outer upholstery | Teal woven velvet-look polyester fabric | |
|---|---|---|
| Seat cushion | High-resilience polyurethane foam, 160 mm thick | |
| Back cushion | Upholstered polyurethane foam panel over rigid backing | |
| Armrest construction | Timber or engineered-wood inner frame covered in foam and fabric | |
| Support legs | Upholstered block legs integrated with arm frame | |
| Internal frame | Kiln-dried timber or engineered wood frame, 30 mm nominal members | |
| Seat support platform | 12 mm plywood or equivalent structural board with webbing | |
| Underlining | Black non-woven dust cover under seat base | |
| Fastening hardware | Staples, screws, and corner blocks at structural joints | |
| Surface seams | Tailored edge seams around arms, back, and seat front | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Fixed lounge posture | Upright 100-degree back angle with 430 mm seat height | |
|---|---|---|
| Integrated arm support | Both arms form continuous padded rails at 610 mm floor height | |
| Side cut-out clearance | Each arm includes a 260 x 140 mm open rectangular aperture | |
| Stationary use | Four integrated block supports provide floor contact without casters | |
| Single-unit seating | One continuous seat and back provide a compact 760 mm-wide lounge position | |
| Floor protection | Hidden glides should be fitted under each upholstered support | |
| Fixed cushion design | Seat and back appear upholstered as continuous tailored components | |
| Maintenance access | Fabric surface requires vacuuming and spot cleaning | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| 40HQ loading | 130 cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Lounge and reception areas | Use in hotel lobbies, club rooms, or office waiting zones | |
|---|---|---|
| Residential living room | Place beside a sofa or as an accent reading chair | |
| Bedroom dressing corner | Pair with a side table for relaxed seating | |
| Retail and showroom display | Use in boutiques or experience centers | |
| Senior-care or guest seating | Specify stable non-swivel seating with padded arms | |
| Collaboration breakout spaces | Arrange two chairs with a low coffee table | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
