PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 460 × 720 mm
single drawer internal width	480 mm
single drawer internal depth	380 mm
single drawer internal height	160 mm
drawer front stitch trim width	8 mm
gold loop pull length	40 mm
plinth base height	40 mm
top surface usable area	276000 mm²
carcass wall thickness	18 mm
leather wrap thickness on drawer fronts	3 mm
floor clearance below plinth base	2 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight	40 kg
top surface static load capacity	50 kg
total enclosed storage volume	0.088 m³
drawer glide cycle rating	50000 open/close cycles
surface scratch resistance (wood panels)	3 Class
leather surface abrasion resistance	50000 rub cycles
recommended maximum placed object height on top	450 mm
warranty period	1 year
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

top and side carcass panels	Walnut wood veneer over MDF/solid wood core, matte sealed finish
drawer front panels	Beige PU leather wrap over engineered wood core, stitched edge trim
drawer pull hardware	Gold-toned zinc alloy loop pulls, polished brass finish
plinth base	Solid walnut wood/walnut veneer, low-profile rectangular frame
drawer glides	Side-mounted ball-bearing steel glides, zinc-plated finish
drawer boxes	Solid hardwood or plywood drawer sides, lacquered interior
adhesive for leather wrapping	Low-VOC water-based furniture adhesive
edge trim on drawer fronts	Matching beige leather binding, 4 stitches per cm stitch pitch
anti-tip hardware	Included steel wall anchor strap for freestanding installation
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

drawer operation	Three fully extendable drawers with soft-close ball-bearing glides
storage configuration	Three equal-height offset stacked drawers for sorted bedside storage
hardware operation	Single fixed loop pull per drawer for easy front-facing access
placement stability	Solid plinth base distributes weight evenly for wobble-free placement on flat floors
surface use	Smooth flat top surface supports table lamps, books, and personal bedside items
installation requirement	Fully assembled delivery option, wall anchor installation required for child safety
drawer alignment	Each drawer is rotated 12 degrees relative to the one below, creating offset geometric look
surface maintenance	Sealed wood and leather surfaces require only dry or damp cloth cleaning
drawer offset rotation angle	12 degrees
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential bedroom bedside use	Placed next to standard or platform beds for accessible nighttime storage of personal items
luxury modern interior schemes	Coordinates with walnut and neutral tone contemporary, minimalist, or art deco decor
living room side end table use	Functions as a decorative end table next to sofas or accent chairs for small item storage
boutique hotel guest room furnishing	Provides upscale, functional storage for premium hospitality room configurations
walk-in closet accessory storage	Placed in closet spaces to store jewelry, accessories, and folded small garments
home office side storage	Positioned next to desks to store office supplies, personal items, and documents

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and structural requirements for domestic storage furniture and kitchen worktops
EN 13336:2009	Upholstered furniture leather specification for upholstery applications
EN 12521:2015	Strength, durability, and safety requirements for domestic furniture seating, applicable for adjacent use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural stability testing
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture
GB/T 16799-2008	Standard for polyurethane leather used in furniture upholstery components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability testing;
2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture;
3. GB/T 16799-2008: Standard for polyurethane leather used in furniture upholstery components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · NS-WAL-3D-STAG-LTHR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · NS-WAL-3D-STAG-LTHR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · NS-WAL-3D-STAG-LTHROpen Export Tool

Quick Actions

Post an RFQ

Product Description

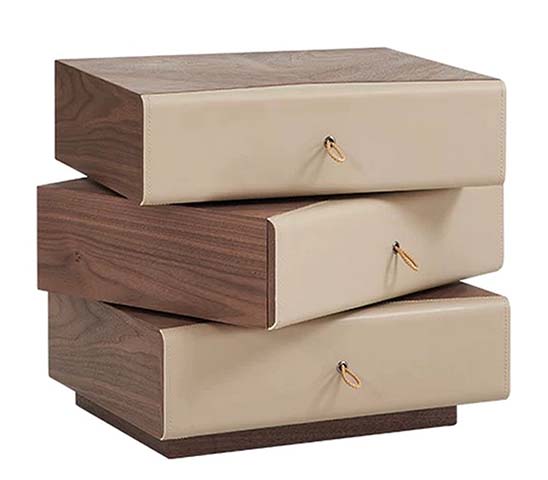

The Staggered Stacked 3-Drawer Nightstand, model NS-WAL-3D-STAG-LTHR, is an unbranded public furniture piece defined by its modern luxury geometric form. It features three equal-height drawers, each rotated 12 degrees relative to the one below to create a signature staggered stacked silhouette, anchored by a low-profile 40 mm tall solid walnut and walnut veneer plinth base that sits flush to flat flooring. Each drawer front is wrapped in warm beige PU leather, finished with matching beige leather binding at 8 mm width, accented by 4 evenly spaced stitches per centimeter, and fitted with a 40 mm polished brass-toned zinc alloy loop pull centered on the panel. The top and side carcass panels use walnut wood veneer over a mixed MDF and solid wood core with a matte sealed finish, complemented by drawer boxes built from solid hardwood or plywood with lacquered interiors. Side-mounted zinc-plated ball-bearing steel glides support each fully extendable drawer, rated for 50,000 open/close cycles, and integrated soft-close mechanisms prevent slamming during use. The unit offers 0.088 m³ of total enclosed storage, with each drawer measuring 480 mm wide, 380 mm deep, and 160 mm tall internally to support sorted item organization. Its 276000 mm² smooth flat top surface holds a 50 kg static load, recommended for items no taller than 450 mm such as table lamps, reading material, and everyday personal items, while the plinth base evenly distributes the unit’s 40 kg net weight to eliminate wobble on level floors. The wood panels carry a Class 3 scratch resistance rating, and the leather-wrapped fronts withstand 50,000 rub cycles for long-term durability; low-VOC water-based adhesive is used to secure the leather wrap, and a steel anti-tip wall anchor strap is included for safe freestanding installation. The nightstand works seamlessly as a bedside fixture next to standard or platform beds in residential bedrooms, pairs with walnut and neutral-toned contemporary, minimalist, or art deco interiors for luxury modern schemes, serves as a decorative end table adjacent to sofas or accent chairs in living rooms, functions as upscale guest room storage in boutique hotels, holds jewelry and folded small garments in walk-in closets, and supports office supply storage alongside home office desks. Procurement teams should note the unit ships in 2 cartons per set, with a packaged gross weight of 120 kg and packaging volume of 0.8 m³ per set. A fully assembled delivery option is available; for on-site assembly, the reference assembly time is 40 minutes per unit. Wall anchor installation is required to meet child safety standards for all public and residential deployments.

Staggered Stacked 3-Drawer Nightstand with Beige Leather-Wrapped Fronts and Walnut Finish Specifications
