PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 500 × 630 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	42 kg
Per-drawer static load capacity	15 kg
Rotation mechanism cycle life	12000 cycles
Drawer slide static load rating	20 kg
Recommended maximum user weight on top surface	50 kg
Total internal storage volume	108 L
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Drawer body core material	18mm thick MDF core
Exterior surface finish	Natural walnut wood veneer, matte clear lacquer topcoat
Drawer pulls (top/bottom tiers)	Matte black powder-coated zinc alloy
Drawer pull (middle tier)	Brushed nickel plated zinc alloy
Internal rotation pivot hardware	Carbon steel rotating bearing assembly
Drawer slides	Side-mounted soft-close ball bearing slides
Interior drawer lining	Matte black anti-scratch melamine finish
Base contact pads	Non-slip felt pads
Drawer panel edge banding	0.6mm thick PVC edge banding matched to veneer tone
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Independent tier rotation	Each drawer unit rotates 360 degrees around central pivot
Soft-close drawer operation	Drawers close silently with self-latching mechanism
Single-tab drawer actuation	Vertical pull tabs require 12N pull force to open
Stacked modular alignment	Locating pins between tiers prevent lateral slippage
Smooth rotation operation	Sealed bearing provides 360 degree swivel with 5N rotational force
Scratch-resistant top surface	UV-cured lacquer resists minor abrasions from daily use
Floor protection design	Felt base pads eliminate scuffs on hardwood or tile floors
Flush-front storage design	Drawer fronts sit flush with enclosure edges when closed
Stack rotation offset per drawer	18 degrees
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential bedroom bedside use	Placed adjacent to beds for storage of books, devices and personal items
Modern living room side table use	Positioned next to sofas for remote controls, drinks and decorative objects
Contemporary studio accent storage	Used as standalone sculptural storage in open-plan living spaces
Home office under-desk storage	Placed beside home office desks for stationery and document storage
Luxury hotel guest room furnishing	Installed in boutique hotel rooms for guest amenity and personal item storage
Recommended matching furniture	Pairs with low-profile walnut wood bed frames, minimalist sofas and neutral tone decor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic storage furniture, applicable for stability verification
EN 12520:2015	Furniture seating and storage strength, durability and stability requirements
EN 71-3:2019	Migration of certain elements, applicable for surface finish safety in residential use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel strength and finish durability
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing
GB/T 4893.4-2013	Surface furniture wear resistance test, applicable for veneer lacquer finish performance
GB/T 10357.5-2011	Furniture mechanical performance test for storage units, applicable for drawer load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel strength and finish durability;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing;
3. GB/T 4893.4-2013: Surface furniture wear resistance test, applicable for veneer lacquer finish performance;
4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for drawer load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · NS-ROT-3DW-600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · NS-ROT-3DW-600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · NS-ROT-3DW-600Open Export Tool

Quick Actions

Post an RFQ

Product Description

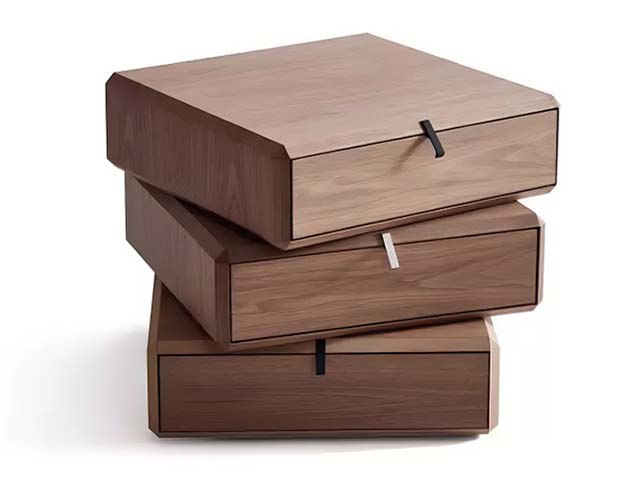

The Rotating Stacked 3-Drawer Walnut Veneer Nightstand (model NS-ROT-3DW-600) is a contemporary unbranded bedside storage piece defined by its distinct stacked, modular visual structure. Its streamlined rectangular form arranges three aligned drawer tiers around a central vertical pivot, with a matte natural walnut veneer exterior accented by mixed metal hardware—matte black powder-coated zinc alloy pulls on the top and bottom tiers, and a brushed nickel plated zinc alloy pull on the middle tier—creating subtle tonal contrast that complements modern design schemes. A matte clear lacquer topcoat protects the exterior, while 0.6mm PVC edge banding matched to the veneer tone delivers clean, seamless panel edges. The piece is built on an engineered wood core, with each drawer body constructed from 18mm thick MDF lined with scratch-resistant matte black melamine. Internal hardware includes a carbon steel rotating bearing assembly for the pivot mechanism, side-mounted soft-close ball bearing drawer slides, and non-slip felt pads at the base to prevent floor damage. Each individual drawer tier rotates a full 360 degrees around the central pivot, guided by a sealed bearing that enables smooth swivel operation with light applied force. Locating pins between tiers prevent lateral slippage during rotation or regular use. Drawers operate with a silent soft-close, self-latching action, and open via vertical pull tabs with light actuation force. The UV-cured top surface resists minor daily abrasions, and supports a maximum recommended user weight; each drawer holds a rated static load, with total internal storage volume accommodating everyday personal items. The felt base pads eliminate scuffs on hardwood and tile flooring. This versatile piece fits both residential and commercial spaces. It serves as a traditional bedside nightstand in residential bedrooms for storing books, devices and personal items, works as a side table next to sofas in modern living rooms for remotes, drinks and decor, acts as sculptural standalone accent storage in contemporary open-plan studios, and provides convenient under-desk or beside-desk storage for stationery and documents in home offices. It is also suitable for installation in luxury boutique hotel guest rooms to hold guest amenities and personal belongings, pairing seamlessly with low-profile walnut wood bed frames, minimalist sofas, and neutral tone decor. For procurement, note the product ships across multiple cartons per set, with a reference assembly time of 40 minutes per unit. Buyers should account for the total packaged weight and volume when planning shipping and on-site handling, and confirm weight capacity aligns with intended use cases prior to specification.

Rotating Stacked 3-Drawer Walnut Veneer Nightstand Specifications
