PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1580 × 2120 × 1300 mm
Recommended mattress size	1500 x 2000 mm
Platform sleeping surface height	300 mm
Padded headboard thickness	200 mm
Underbed drawer internal depth	180 mm
Single underbed drawer dimensions	900 x 550 x 180 mm
Total underbed storage drawer count	4 units
Matching nightstand dimensions	450 x 400 x 500 mm
Bed base side rail thickness	30 mm
Wooden slat width	70 mm
Slat spacing gap	60 mm
Floor clearance under drawer base	20 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	360 kg
Net product weight	75 kg
Recommended user age range	6 to 12 years
Recommended mattress thickness	200 mm
Wooden slat static load rating	120 kg per slat
Standard product warranty	10 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	PU leather fabric, stain-resistant matte finish
Headboard padding	High-density polyurethane foam, 35kg/m³ density
Internal bed frame	Solid pine wood, 30mm thick structural members
Support slats	Plywood slats, 15mm thick, pre-installed
Drawer fronts and frame panels	E0-grade MDF with white matte lacquer finish
Drawer slides	Full-extension metal ball-bearing slides
Drawer handles	Recessed black metal pull handles
Base support feet	Adjustable plastic anti-slip foot pads
Nightstand tops	Tempered glass top with soft edge trim
Nightstand drawer interiors	Sanded solid wood drawer boxes
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Underbed pull-out storage	4 side-mounted drawers extend fully on ball-bearing slides
No box spring required design	Evenly spaced plywood slats support mattress directly
Adjustable foot levelers	Rotatable base feet compensate for up to 10mm floor unevenness
Child-safe rounded edges	All exposed upholstered and panel edges have rounded profiles
Wall-anchored headboard design	Pre-drilled mounting points secure headboard to wall
Stain-resistant upholstery surface	Wipe-clean PU leather resists common juice and art supply stains
Matching nightstand compatibility	Bed dimensions align with paired 2-drawer nightstands shown in set
Quick tool-based assembly	Pre-drilled frame components and included hardware enable home assembly
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Children's independent bedroom	Fits 15sqm kids' rooms for ages 12provides safe dedicated sleeping space
Gender-neutral shared kids rooms	Yellow and white cartoon dog theme suits both boys and girls for shared bedroom layouts
Small apartment youth rooms	Built-in underbed storage eliminates need for separate dressers in compact spaces
Pediatric clinic rest areas	Soft rounded edges and playful design create comforting rest space for child patients
Homestay family guest rooms	Cartoon design appeals to traveling families with young children
After-school care nap rooms	Low profile and easy-clean surface support daily nap use for school-age children

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 747-1:2012+A1:2015	Furniture - Bunk beds and high beds for domestic use - Safety requirements
EN 12521:2015	Furniture - Strength, durability and safety - Requirements for domestic beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 28007-2011	General safety technical requirements for children's furniture
GB/T 3324-2017	General technical requirements for wooden furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB 28007-2011: General safety technical requirements for children's furniture;
2. GB/T 3324-2017: General technical requirements for wooden furniture;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · KDB-US-1500

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · KDB-US-1500

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · KDB-US-1500Open Export Tool

Quick Actions

Post an RFQ

Product Description

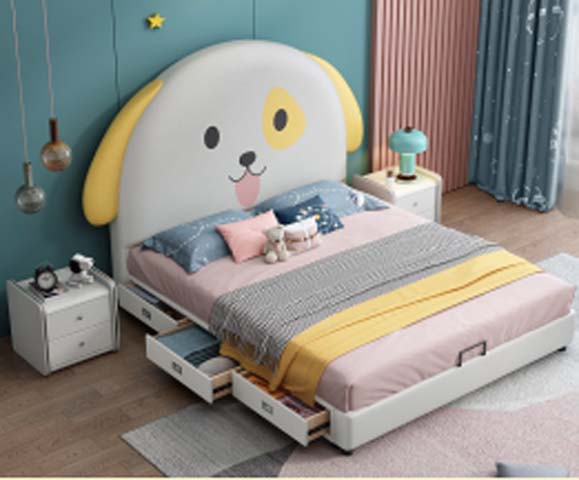

This unbranded kids upholstered storage bed set, model KDB-US-1500, features a playful gender-neutral cartoon dog design rendered in soft yellow and white matte finishes, structured as a low-profile platform bed paired with matching nightstands for a cohesive, child-centric layout. The padded headboard, shaped to echo the cartoon animal motif, is upholstered in stain-resistant matte PU leather padded with high-density polyurethane foam, sitting atop a solid pine wood frame built with thick structural members. Pre-installed thick plywood slats form the sleeping platform, eliminating the need for a box spring, while the frame and drawer fronts are constructed from E0-grade MDF finished in a smooth matte white lacquer. Four full-extension underbed drawers run on smooth metal ball-bearing slides, fitted with recessed black metal pull handles, and adjustable anti-slip plastic foot pads at the base stabilize the unit while compensating for minor floor unevenness. The headboard includes pre-drilled wall anchor points, and all exposed edges across the bed and glass-topped nightstands carry soft, rounded profiles for child safety. The PU leather upholstery wipes clean easily to resist common stains from juice and art supplies, while the four underbed drawers offer ample enclosed storage to reduce clutter in tight spaces. The bed’s low platform height makes it easily accessible for the recommended user age group of 6 to 12 years, with a static load capacity suited to regular daily use, and comes backed by a standard 10-year product warranty. This set fits seamlessly into residential children’s independent bedrooms of appropriate size, gender-neutral shared kids’ rooms, and compact small apartment youth spaces where built-in storage removes the need for separate dressers. It also works well in commercial child-focused settings including pediatric clinic rest areas, homestay family guest rooms, and after-school care nap rooms, where its soft edges and playful design create a welcoming, low-fuss rest space for children. Procurement teams and residential buyers should note the set ships across multiple cartons, requires a reasonable assembly window, is compatible with a standard 1500x2000mm mattress of recommended thickness, and includes coordinated nightstands aligned to the bed’s dimensions for a unified furnished look. For permanent installation, the pre-drilled wall anchor points should be secured to wall surfaces to maximize stability during regular use.

Cartoon Dog Upholstered Kids Platform Storage Bed with Matching Nightstands Specifications
